Description
Integrate Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system
integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical
encoder with high speed position sampling feedback of 50 s, once the position deviation appears, it will be fixed
immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat,
less vibration, fast acceleration, and so on.
Features
Integrated compact size for saving mounting space
Without losing step, High accuracy in positioning
100% rated output Tq
Variable current control technology, High current efficiency
Small vibration, Smooth and reliable moving at low speed
User-defined micro steps
No adjustment in general applications
Over current, over voltage and over position error protection
Green light means running while red light means protection or off line.
Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
Specification
Phase: 2 ;
step angle: 1.8degree
Step angle accuracey: ±0.09º
Rated current per phase: 4A
Resistance per phase: 0.48±10%;
Inductance per phase: 2.0MH±20%;
Holding Tq: 3 N.m;
Rotor Inertia: 780gcm²;
Dielectric strength:500VAC;
Insulation resistance: 100M/min;
Insulation classe (UL): B;
Temperature Rise Max. 80K
Working ambient temperature: 0~50;
Working ambient humidity: 20%~90%RH;
Storage ambient temperature: -20~70;
Storage ambient humidity: 15%~90%RH
==========

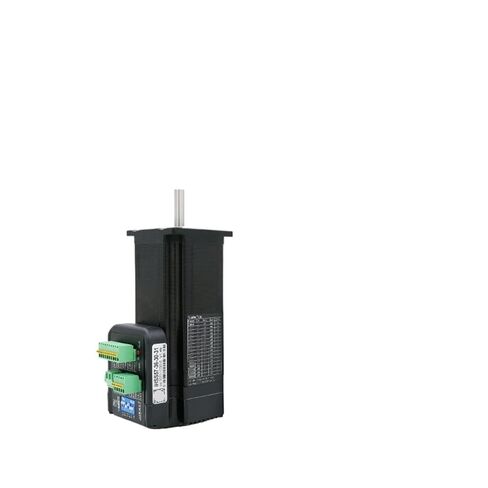

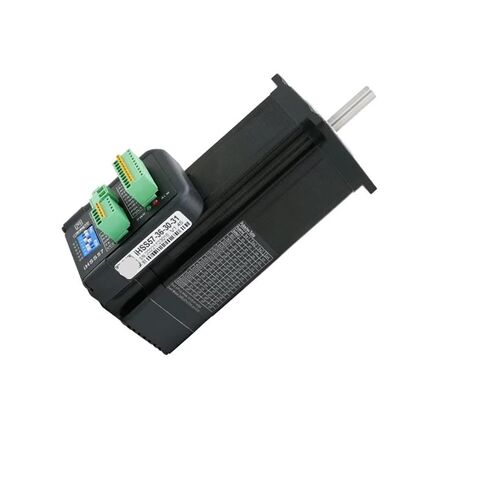

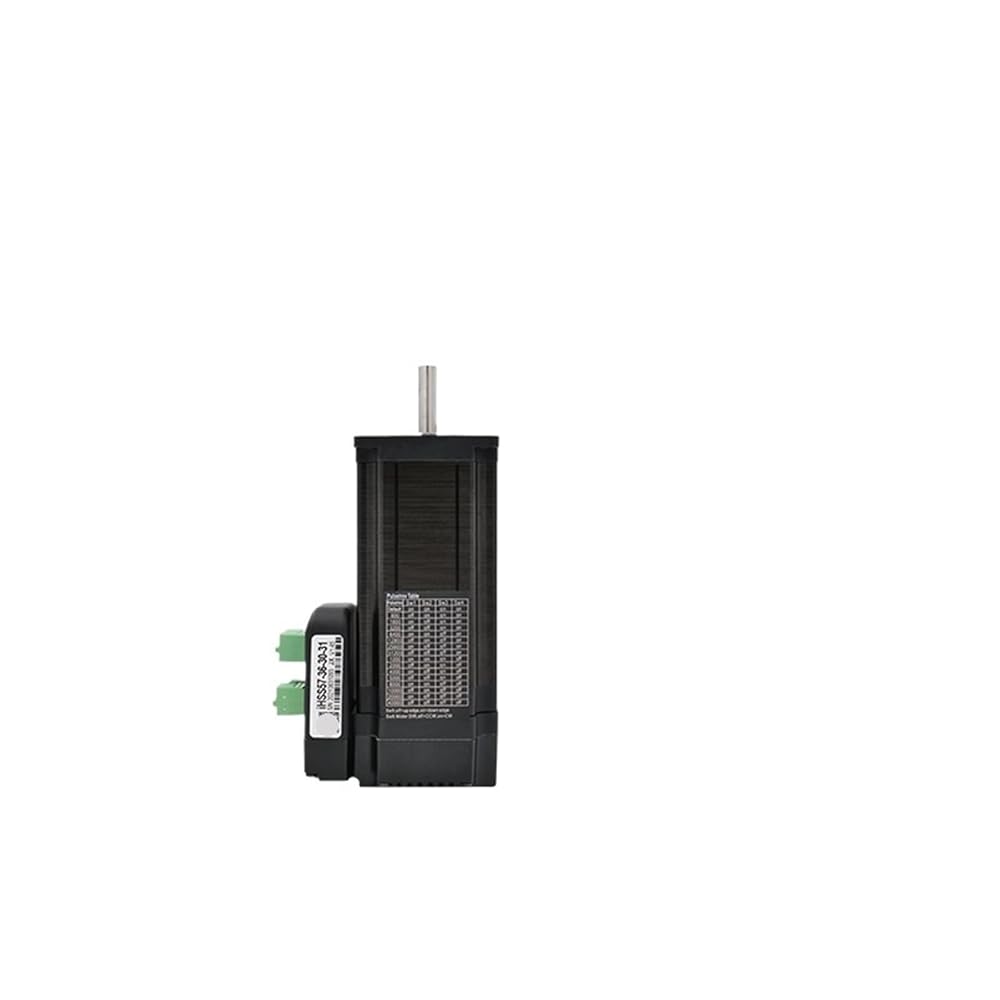

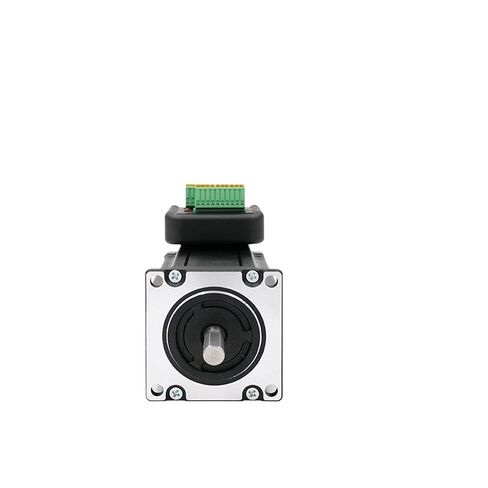

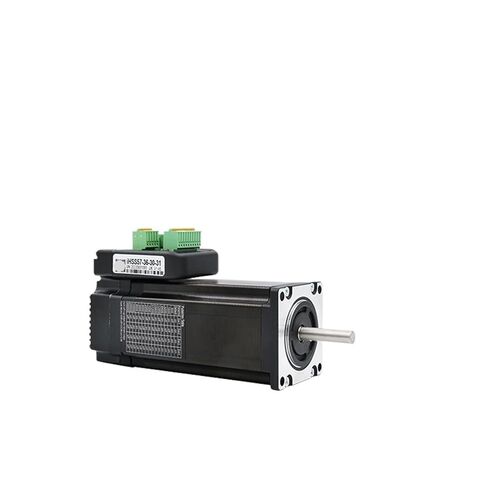

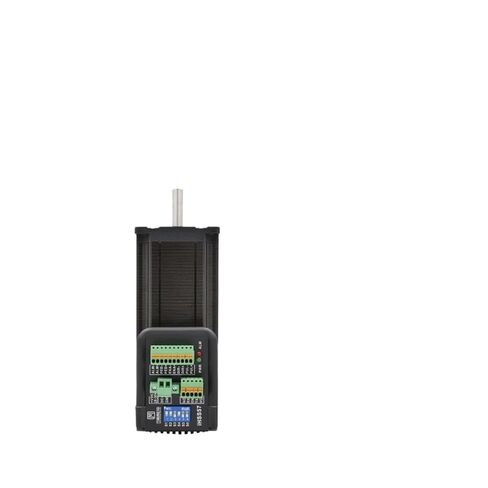

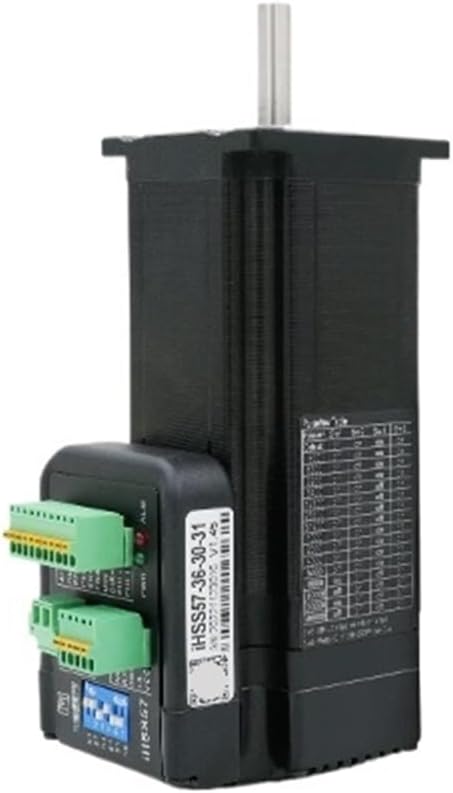

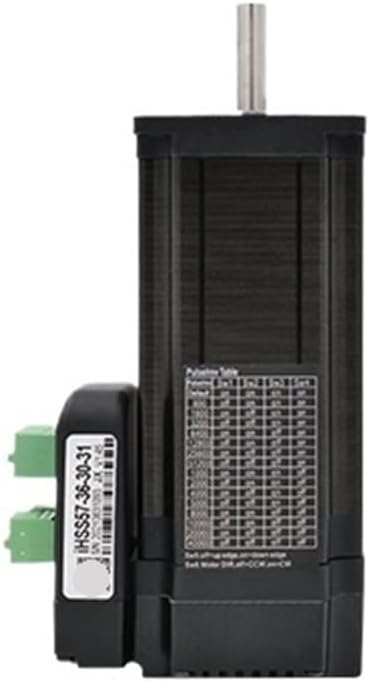

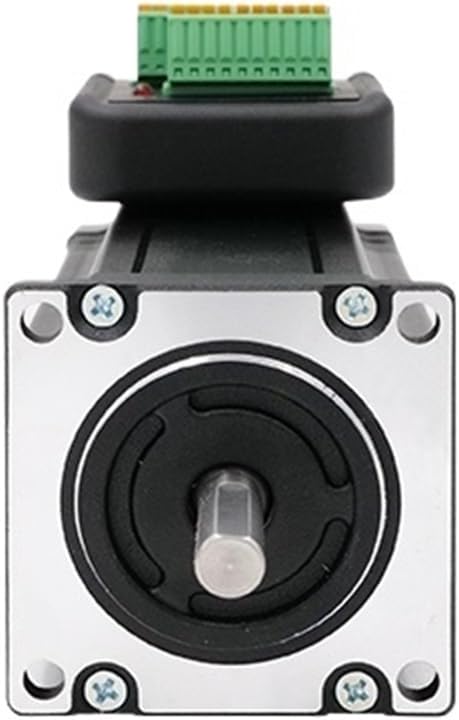

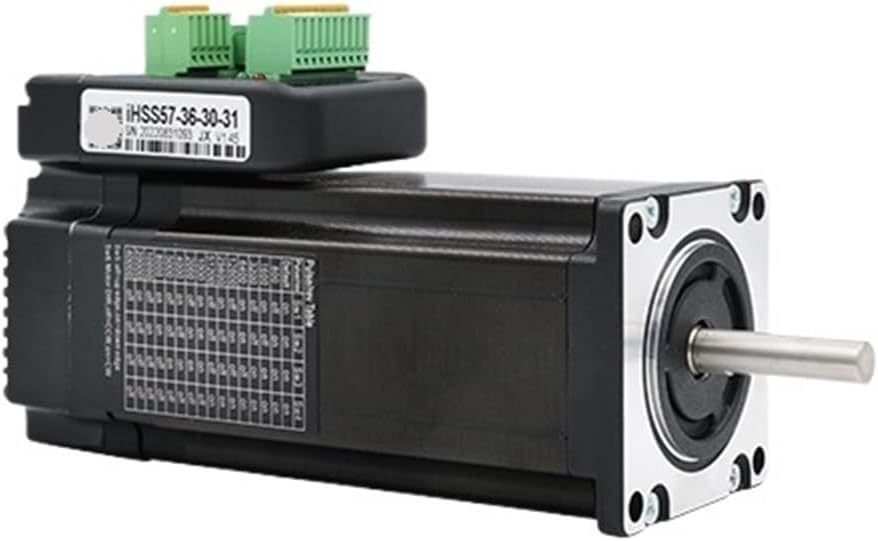

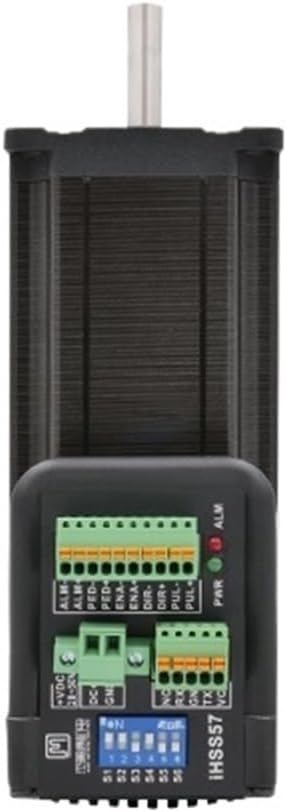

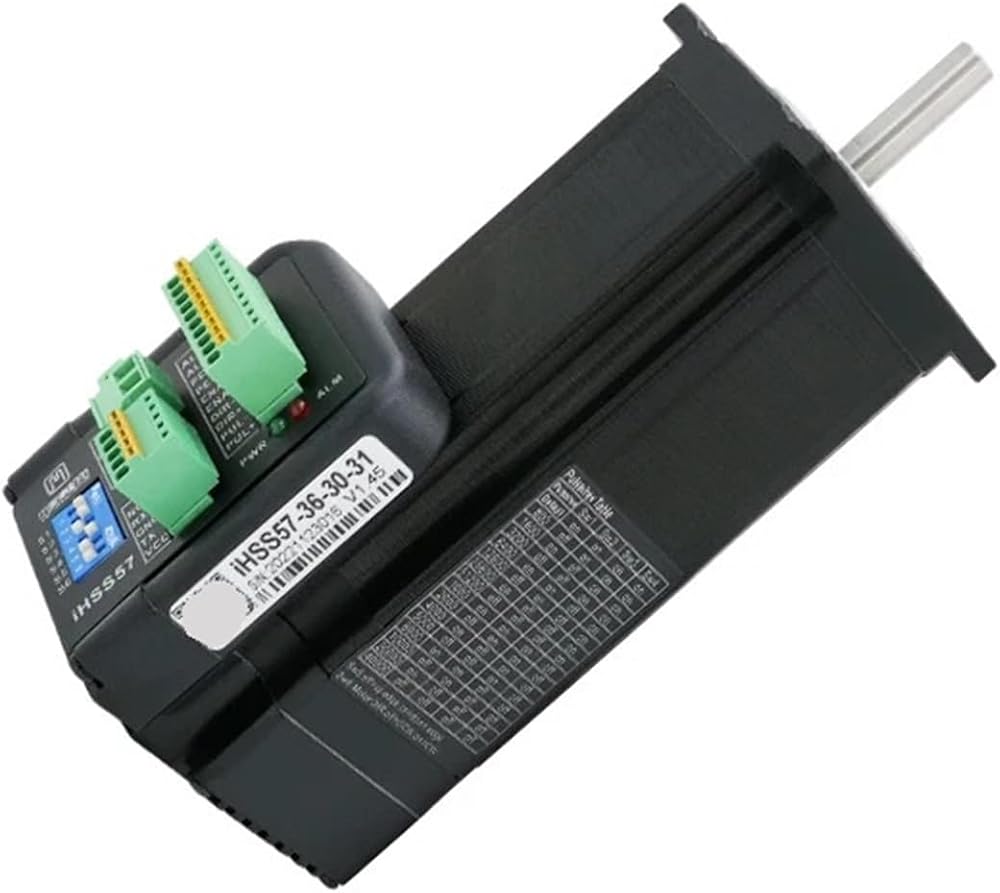

Integrated Stepper Motor with Driver, 57mm PMSM Stepservo Motor 'iHSS57-36-30 3Nm for Plasma Pipe cutting machine
Current / Phase : 4
Holding Tq : 3
Step Angle(degrees) : 1.8
Phase : 2
Model Number : IHSS57-36-30
Feature 1 : 100% rated output Tq
Feature 2 : Variable curr
