Product Specifications
Material: Metal
Color:
Weight: 0.12kg
Application:
Microscope Standard Configuration: 7X-45X
Working Distance: 100mm
Mounting Size: 1-7/8
Diameter: 48mm
Vision Range: 10/2028.5mm

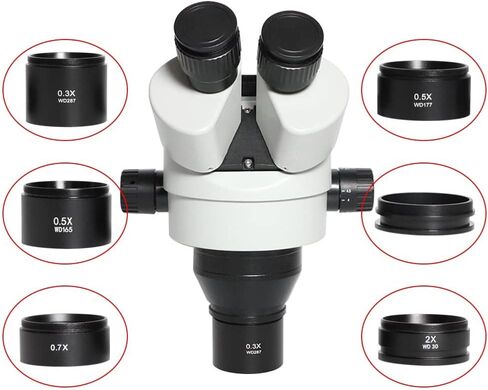

Microscope Standard Configuration (Magnification): 7X - 45X, Working Distance: 100mm

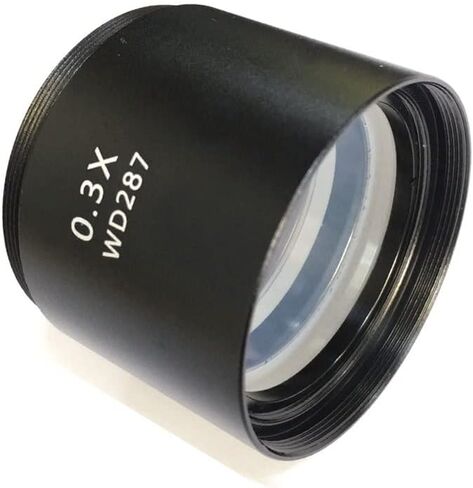

Add 0.3X objective lens: working distance: 287mm ( Narrow ) Total Magnification:2-15X

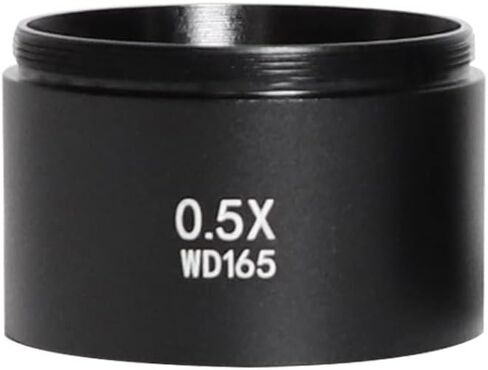

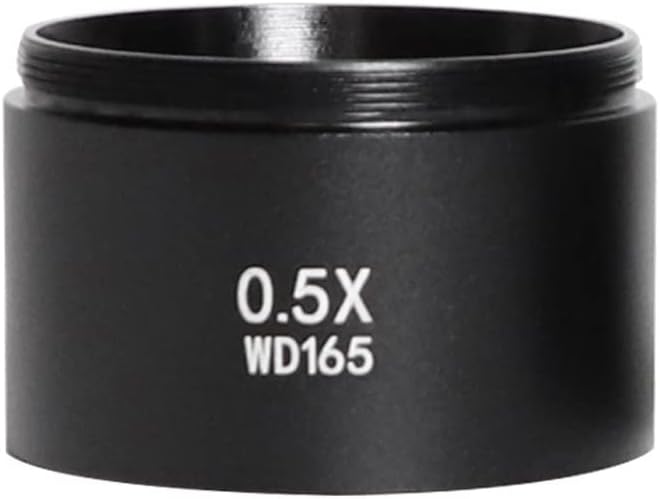

Add 0.5X objective lens: working distance: 165mm ( Narrow ) Total Magnification:3.5-22.5X
Add 0.7X objective lens: working distance: 120mm ( Narrow ) Total Magnification:5-31.5X
Add 2.0X objective lens: working distance: 30mm( Magnify ) Total Magnification:14-90X
What in The Package
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 100 mm)
1 x 0.7X Microscope Auxiliary Objective Lens (Working Distance 100mm)
1 x 1.0X Microscope Auxiliary Objective Lens (Working Distance 100mm)
1 x 2.0X Microscope Auxiliary Objective Lens (Working Distance 100 mm)
WD287 0.3X Microscope Auxiliary Objective Lens. (Working Distance 100mm)
WD165 0.5X Microscope Auxiliary Objective Lens. (Working Distance 100mm)
