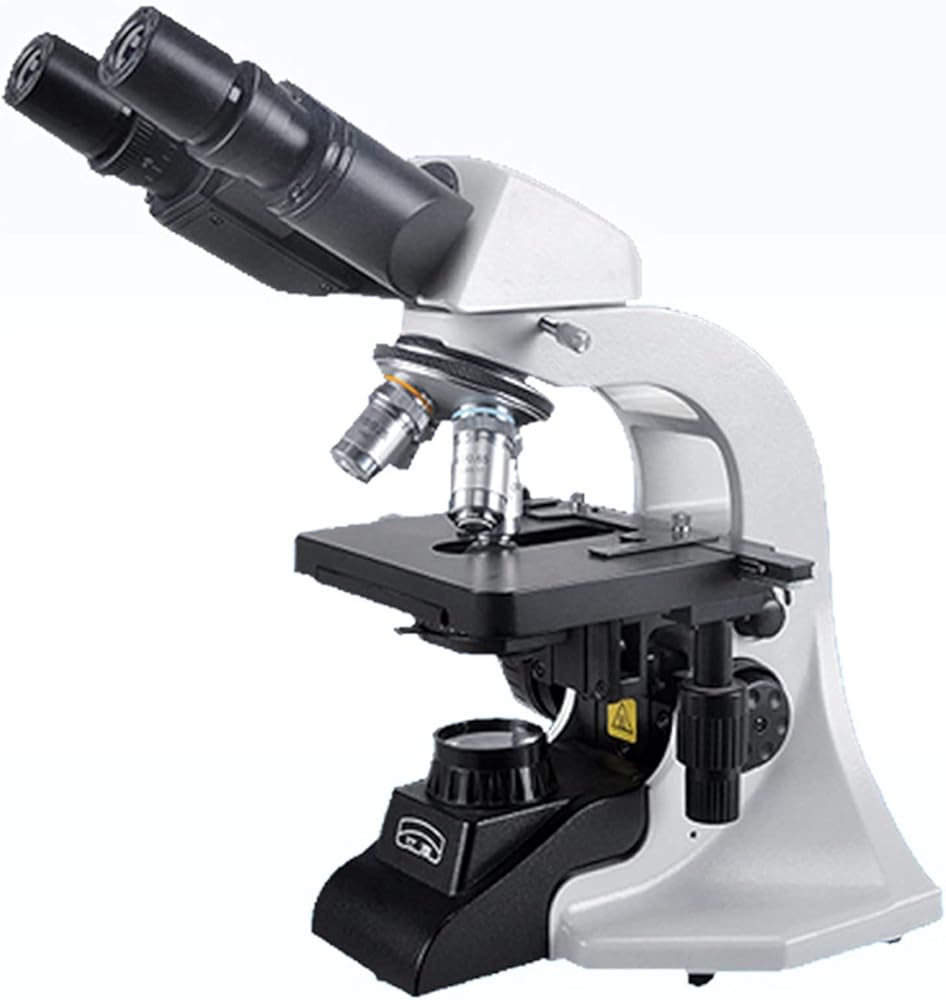

Product name: Upright biological microscope
Magnification: 1000X
Observation method: projection
Eyepiece WF10X/18mm
Objective lens Achromatic objective lens 10X, 20X, 40X, 100X
Eyepiece tube Hinged binocular observation tube, 30° tilt, 360° rotation, pupil distance adjustment range 48-75mm
Converter Four-hole converter
Stage Double-layer mechanical stage size: 132mm×142mm
Moving range: 75mm×40mm
Focusing mechanism Coaxial coarse and fine focusing mechanism, coarse adjustment range: 20mm, fine adjustment accuracy 0.002mm
Condenser Abbe condenser NA1.25 with variable diaphragm
Light source 3W LED light, adjustable brightness
Color filter blue film
Camera interface 0.5X standard C interface
