Motor Drives
Easy Integration
The Nema34 motor is easily integrable into existing systems, making it a convenient upgrade for your equipment.
Precision Control
Achieve precise control over your plasma cutter with the motor's encoder pulse direction control feature.
Versatile Application
Ideal for various applications, this motor is perfect for use in plasma cutters, enhancing efficiency and accuracy.
Design
Built to last, this motor is designed with a robust 86J18118EC specification for optimal performance.
High Tq Performance
Experience unparalleled power with the Nema34 86mm Hybrid Stepservo Motor, boasting an impressive 8.5Nm Tq.
Features
*** Parameter auto-setup and motor self-test
*** Multi-Stepping inside
*** Small noise, low heating, smooth movement
*** Tq compensation in high speed
*** Variable current control technology, High current efficiency
*** Accelerate and decelerate control inside, Great improvement in smoothness of
starting or stopping the motor
*** Support PUL/DIR and CW/CCW modes
*** Storage the position of motor
*** Optically isolated input and compatible with 5V or 24V
*** User-defined micro steps
*** Micro-step resolutions and Output current programmable
*** Over current, over voltage and low voltage protection
*** Green light means running while red light means protection or off line
==========

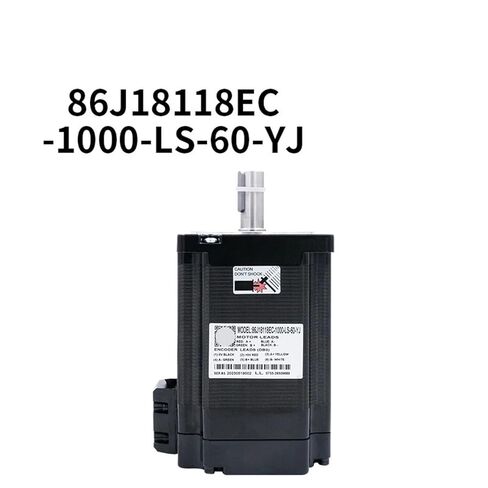

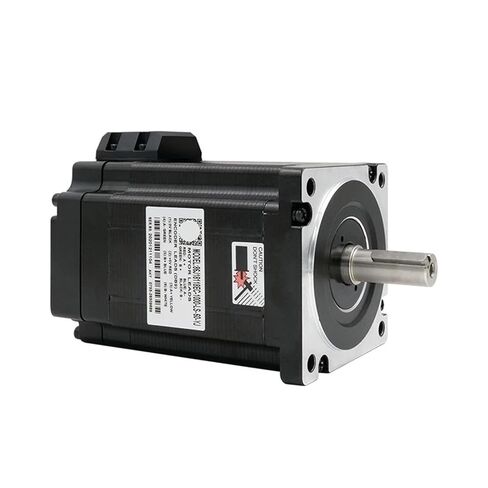

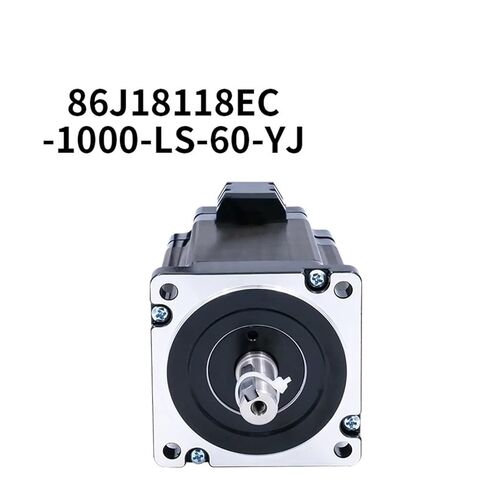

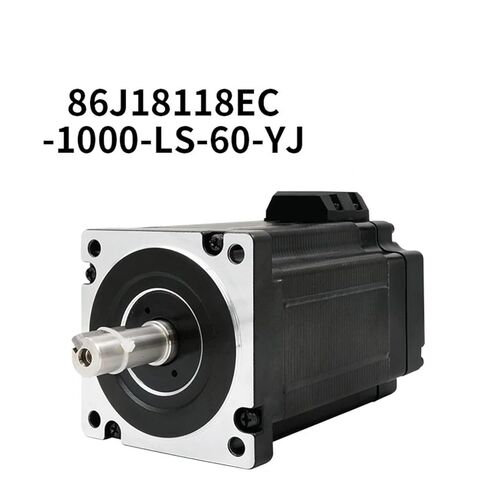

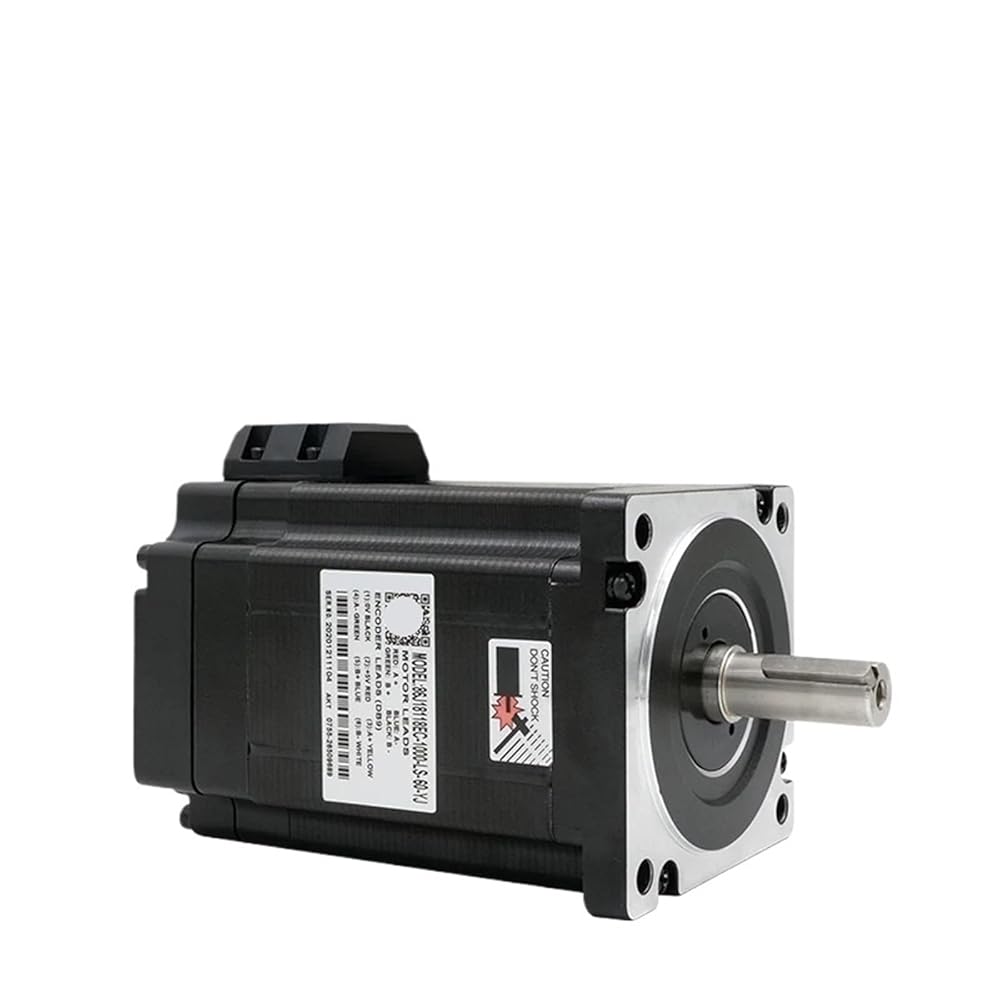

Nema34 86mm Hybrid Stepservo Motor 8.5Nm 86J18118EC with Encoder Pulse Direction Control for Plasma Cutter
Cable Length : 1m
Current / Phase : 6
Holding Tq : 8.5
Step Angle(degrees) : 1.8
Phase : 2
Model Number : 86J18118EC-1000-LS
Type : HYBRID
Feature 1 : RS232
Feature 2 : Hybrid Stepservo Motor
Feature 3 : Multi-Stepping inside
Feature 4 : 8.5Nm
Feature 5 : 1.8 step angle
Feature 6 : Accelerate and decelerate control inside
Feature 7 : Small noise, low heating
Feature 8 : 32-bit DSP
