Description
Stepper motors are so named because each pulse of electricity turns the motor one step. Stepper motors are controlled by a driver, which sends the pulses into the motor causing it to turn. The number of pulses the motor turns is equal to the number of pulses fed into the driver.

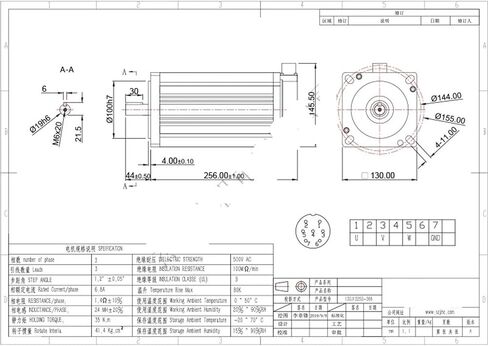

Specification:
Phase: 3 ;
step angle: 1.2degree
Step angle accuracey: ±0.05º
Rated current per phase: 6.8 A
Resistance per phase: 1.4±10%;
Inductance per phase: 24MH±20%;
Holding Tq: 35N.m;
Rotor Inertia: 41400gcm²;
Dielectric strength:500VAC;
Insulation resistance: 100M/min;
Insulation classe (UL): B;
Temperature Rise Max. 80K
Working ambient temperature: 0~50;
Working ambient humidity: 20%~90%RH;
Storage ambient temperature: -20~70;
Storage ambient humidity: 15%~90%RH;
==========
Current / Phase : 6.8
Holding Tq : 28
Step Angle(degrees) : 1.2
Phase : 3

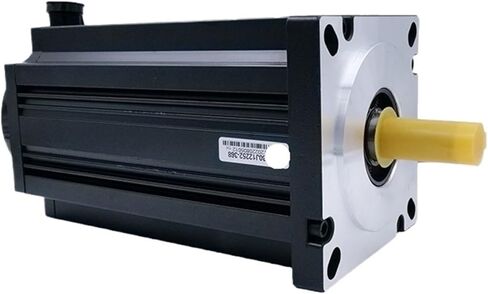

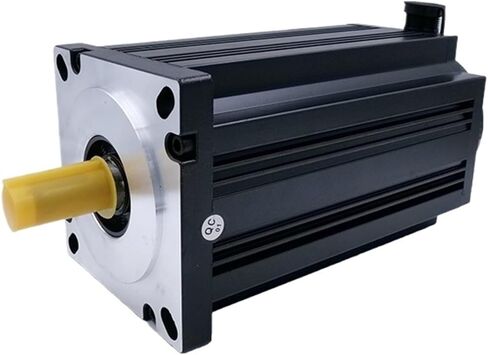

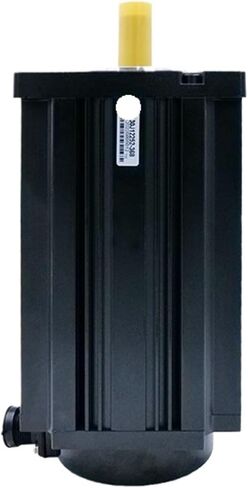

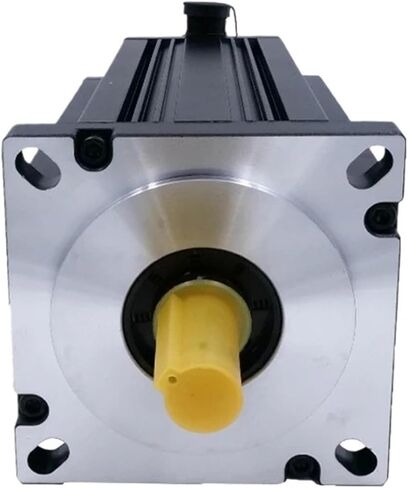

Model Number : 130J12252-368
Feature 1 : brushless stepper motor
Feature 2 : Permanent magnet
Feature 3 : optional
Feature 4 : Position control function
Feature 5 : Stepless speed regulation function
Feature 6 : Support PUL+DIR and CW+CCW modes
Feature 7 : RS232 communication
Feature 8 : Parameters be changed according to requirement
