Motor Drives
The 3DM2080 is a three phase digital stepper driver based on DSP. Its Micro step resolutions and output
current are programmable. And it has advanced control algorithm, which can brings a unique level of system
smoothness, provides optimum Tq and mid-range instability. The control algorithm of Multi-Stepping
can make stepper motor has smooth system performance. The control algorithm of Tq compensation
can improve the Tq of motor in the high speed.
The control algorithm of motor self-test and parameter auto-setup technology offers optimum responses
with different motors and easy-to-use. The control algorithm of smoothness can enhance the acceleration
and deceleration of motor. Its unique features make the 3DM2080 to be an ideal solution for applications.
==========

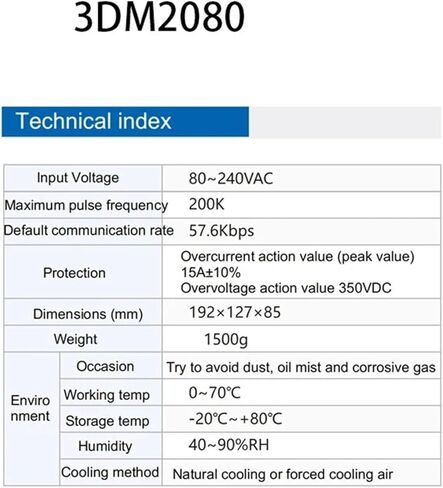

3phase Stepper Motor Driver 3DM2080 80VAC 240VAC 200K Pulse Frequence 32-bit DSP Control Alarm Function For Automatic Device
Power Supply : AC
Model Number : 3DM2080
Feature 1 : Multi-Stepping inside
Feature 2 : Tq compensation in high speed
Feature 3 : Support PUL/DIR and CW/CCW modes
Feature 4 : Optically isolated input and compatible with 5V or 24V
Feature 5 : Storage the position of motor
Feature 6 : User-defined micro steps
Feature 7 : Support PUL/DIR and CW/CCW modes
