Motor Drives
Specification
Phase: 2 ;
step angle: 1.8degree
Step angle accuracey: ±0.09º
Rated current per phase: 5.0A
Resistance per phase: 0.6±10%;
Inductance per phase: 2.67MH±20%;
Holding Tq: 3.5N.m;
Rotor Inertia: 1200gcm²;
Dielectric strength:500VAC;
Insulation resistance: 100M/min;
Insulation classe (UL): B;
Temperature Rise Max. 80K
Working ambient temperature: 0~50;
Working ambient humidity: 20%~90%RH;
Storage ambient temperature: -20~70;
Storage ambient humidity: 15%~90%RH;
==========

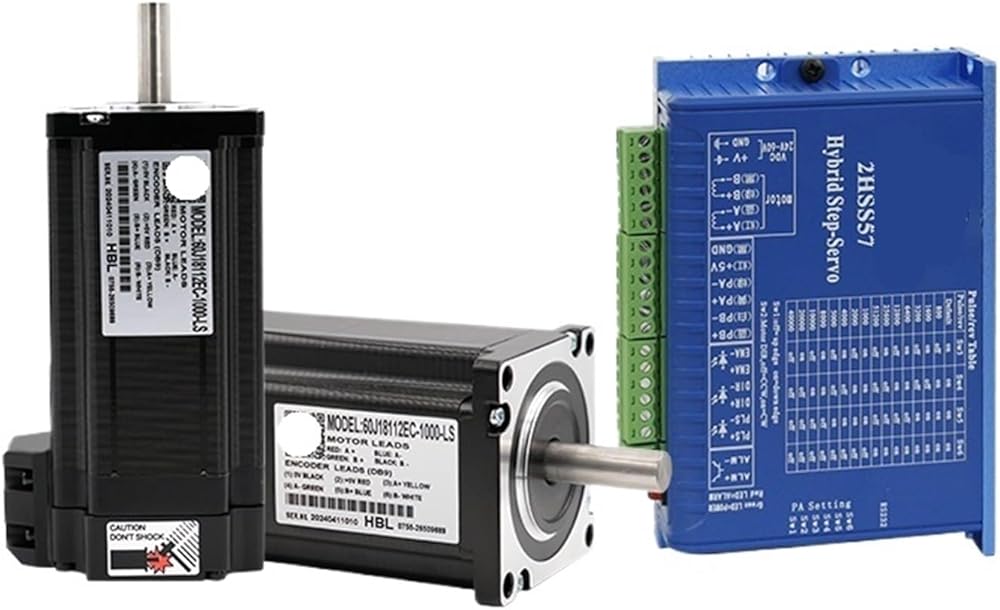

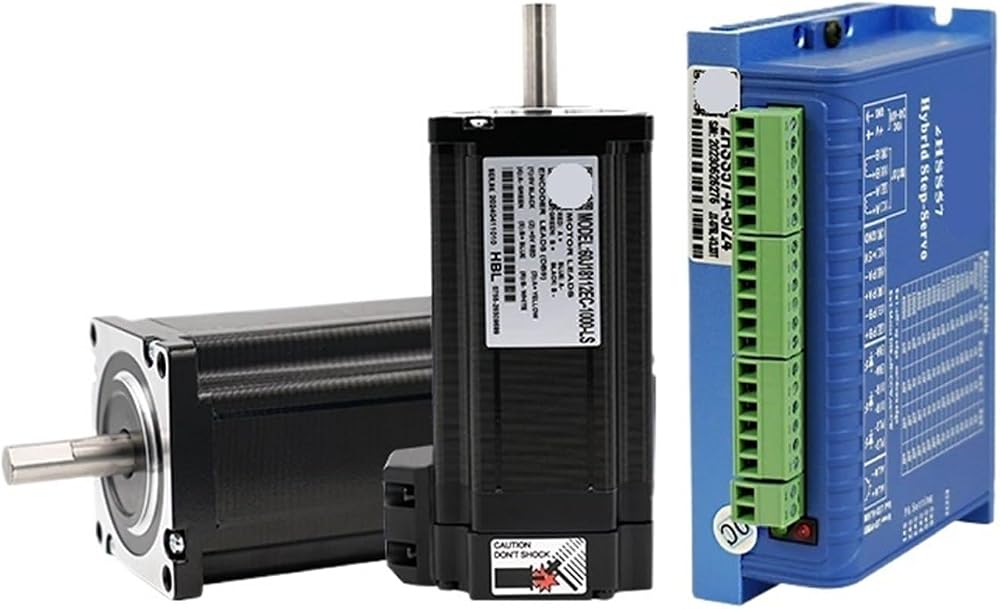

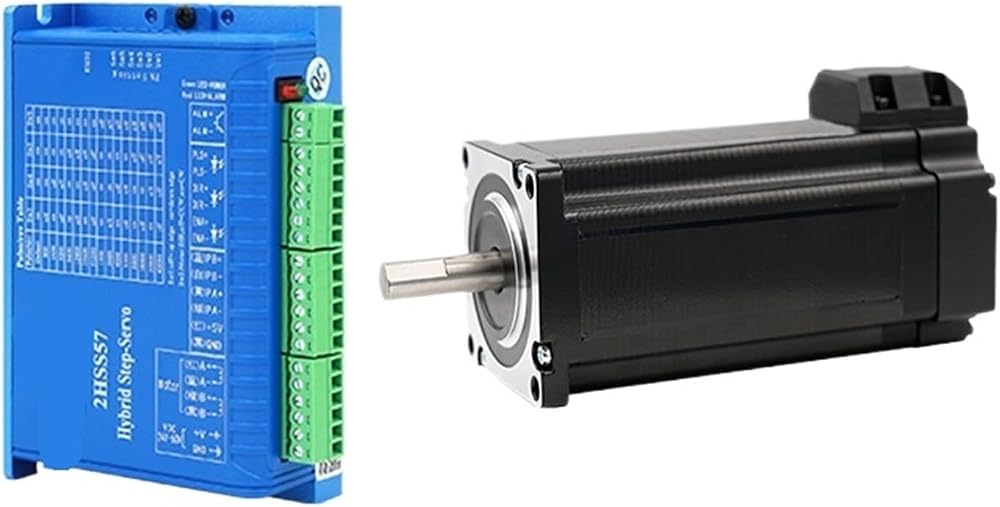

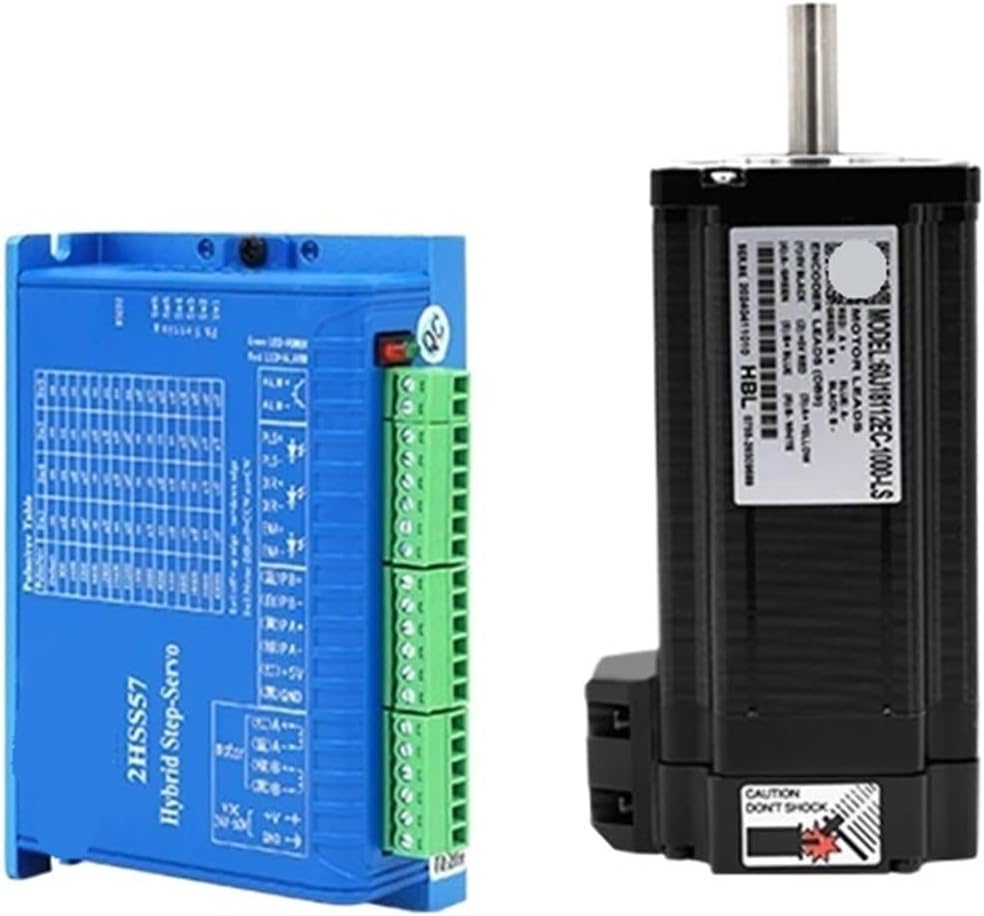

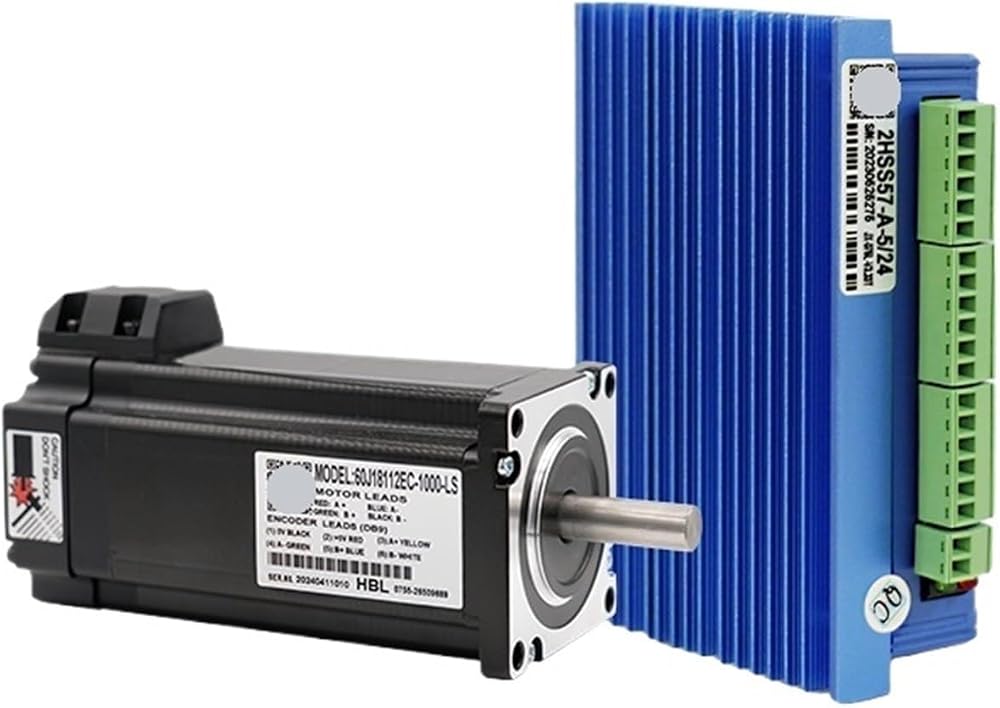

1pcs Closed loop Step Motor 3.5N.m 496oz-in with Driver 48VDC DC Power Voltage for Laser Marking Machine
Current / Phase : 5
Holding Tq : 3.5
Step Angle(degrees) : 1.8
Phase : 2
Closed Loop Step Motor: : 60J18112EC-1000-LS

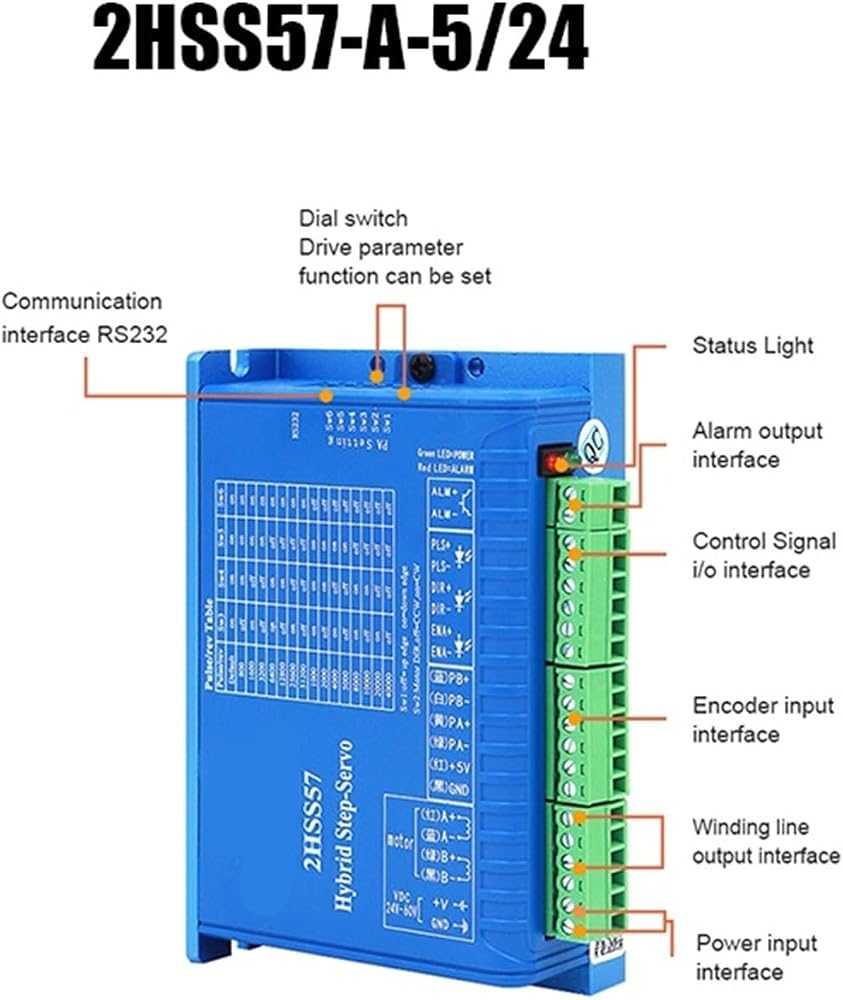

Stepping Motor Driver : 2HSS57-A
Holding Tq: : 3.5N.m, 496 oz-in
