Lmin=54.5mm+Stroke
For example: If Sroke is 50mm,the normal Lmin is 54.5+50=104.5mm.
Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.
Stroke means the movement length of linear actuator.
Lmax=Lmin+Stroke=54.5+2×Stroke
For example: If Sroke is 50mm,the normal Lmin is 54.5+2×50=154.5mm.
Lmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.
Stroke 30MM Lmin=54.5+30=84.5MM,Lmax=84.5+30=114.5MM
Stroke 50MM Lmin=54.5+50=104.5MM,Lmax=104.5+50=154.5MM
Linear actuator spec:
Input:12V DC
Load:Max 188N/18.8KG/41.36LBS
Limited switch:With
Duty cycle:10%
Poduct Material:Metal and plastic

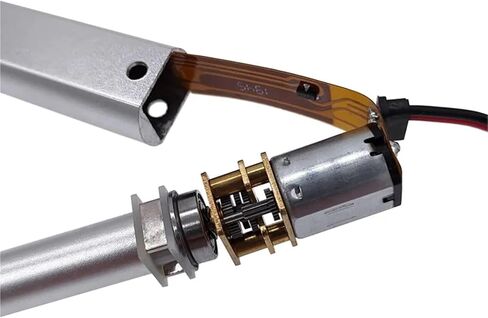

Worm Gear:Metal gear
Color:Black
Operation temperature:-26 ~ +65 degree
==========
Tq : 30N/60N/100N
Model Number : 30mm Stroke/50mm Stroke
Construction : Permanent Magnet
Type : Gear Motor
Protect Feature : Totally Enclosed
Commutation : Brush
Efficiency : IE 1
Output Voltage : 12V
Use : Home Appliance
