Versatile Application
This stepper motor is ideal for a wide range of applications, from robotics to automation, thanks to its versatile design and specifications.
Closed Loop Technology
Enjoy the benefits of closed loop technology, providing stable and reliable operation in various environments.
High Tq Performance
Experience robust performance with the 17 Stepper motor, featuring a substantial 0.5N.m (70.8 oz-in) holding Tq.
Precision Control
Achieve precise control over your applications with the 1000PPR(4000CPR) encoder, ensuring accurate positioning and movement.
Efficient Design
The 2 phase shaft size 5mm design offers efficient power transmission, enhancing the motor's overall efficiency.

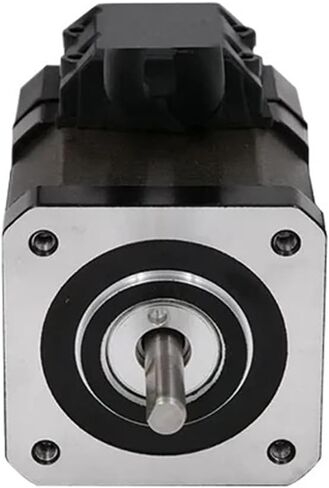

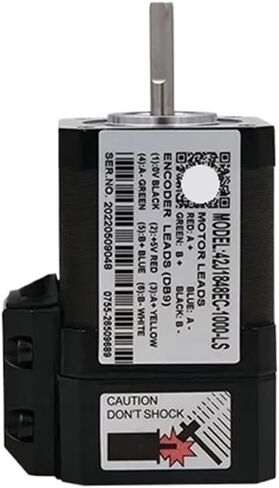

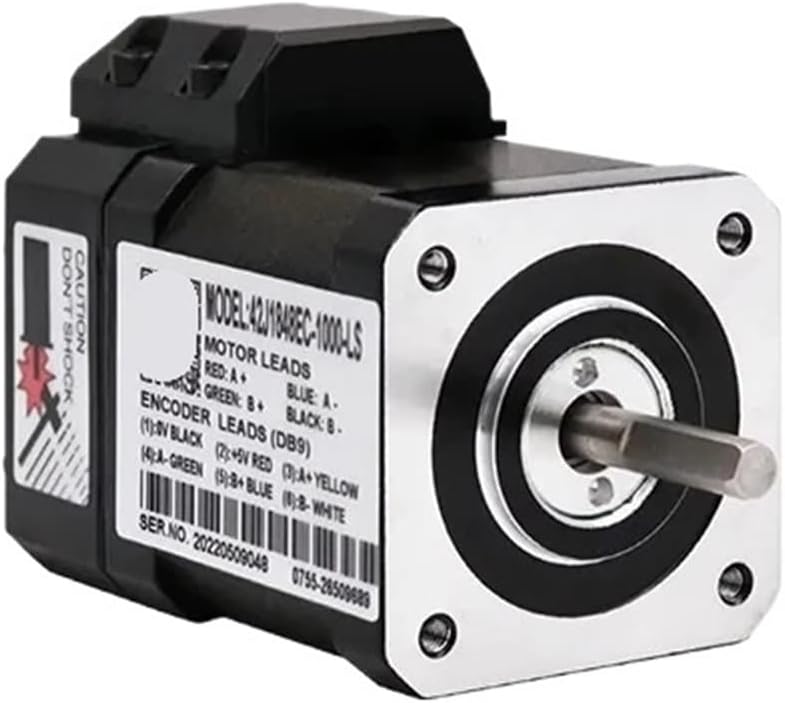

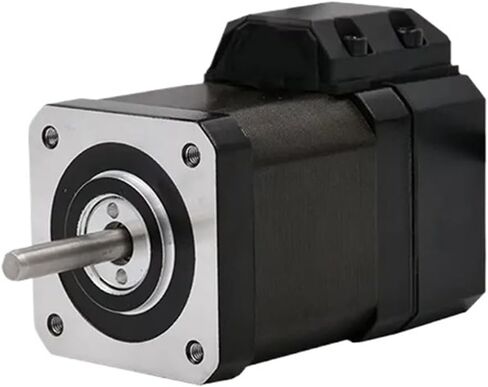

42J1848EC-1000

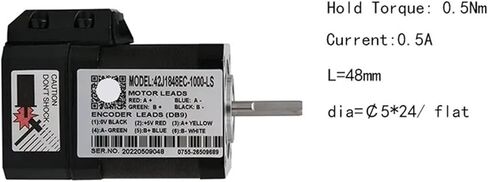

Specification
Phase: 2 ;
step angle: 1.8degree
Holding Tq: 0.5N.m;
Rotor Inertia: 77gcm²;
Rated current: 5.0A
Shaft:5*24/flat
Step angle accuracey: ±0.05º
Resistance per phase: 3.1±10%;
Inductance per phase: 7.9MH±20%;
Dielectric strength:500VAC;
Insulation resistance: 100M/min;
Insulation classe (UL): B;
Temperature Rise Max. 80K
Working ambient temperature: 0~50;
Working ambient humidity: 20%~90%RH;
Storage ambient temperature: -20~70;
Storage ambient humidity: 15%~90%RH;
