Motor Drives
Stepper Motor Series Introduction
A stepper motor is a mechanical device that directly converts electrical pulses into angular
positions. The amount of angle depends on the number of pulses. It and its matched stepping motor
drive device together form a set of open loop system with simple control and low cost.
Working princip
Simply put, the stepper motor driver controls the windings of the stepper motor to be energized
positively and negatively in a certain time sequence through its internal logic circuit according to
the external pulse, so as to realize its operation. Taking a two-phase 1.8° stepper motor as an example,
For a 4-wire (bipolar) motor, the energization direction of its windings changes in sequence
according to the four states of AC BD CA DB. Each time it changes, the motor runs one step, that is1.8°.
If you have any special needs for applications,please feel free to contact us.
Feature:
==========
Holding Tq : 12
Step Angle(degrees) : 1.8
Phase : 2

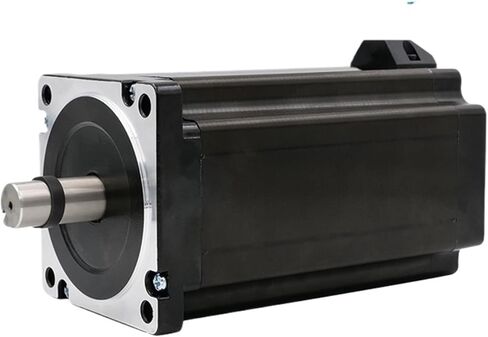

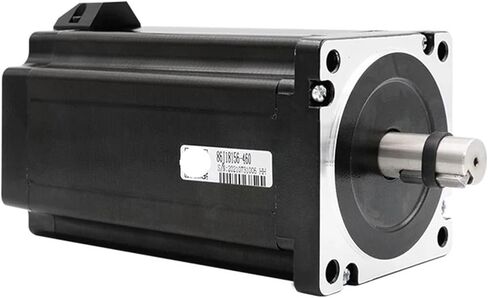

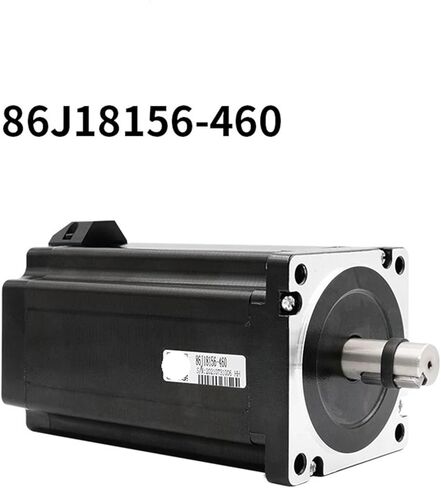

Model Number : 86J18156-460
Type : HYBRID
Feature 1 : 34
Feature 2 : Holding Tq 12Nm
Feature 3 : Support PUL/DIR and CW/CCW modes
Feature 4 : Over current, over voltage and low voltage protection
Feature 6 : Micro-step resolutions and Output current programmable
Feature 7 : Variable current control technology,
Feature 8 : Suitable for Grind Machine
