Motor Drives

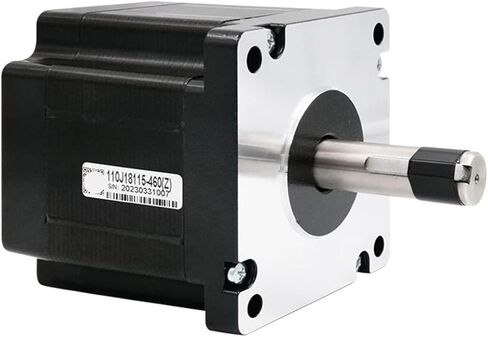

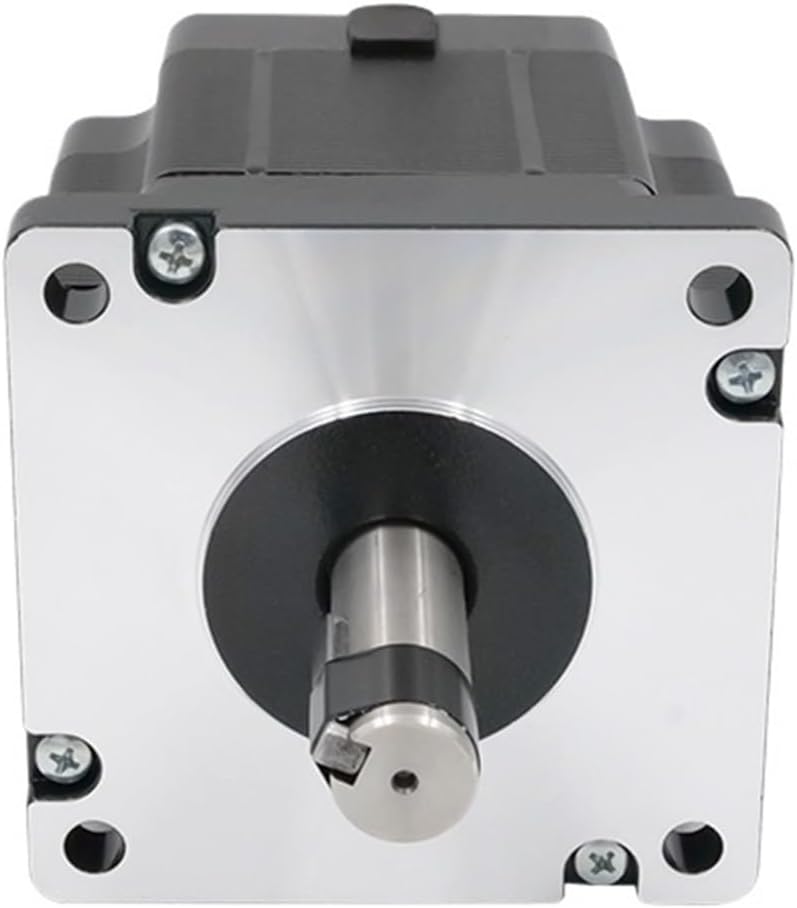

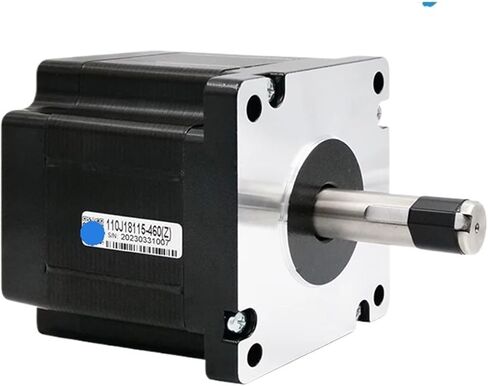

A stepper motor is a brushless, motor that converts digital pulses into mechanical shaft
rotation.Its normal shaft motion consists of discrete angular movements of essentially uniform magnitude
when driven from sequentially switched DC power supply.
The stepper motor is a digital input-output device. It is particularly well suited to the type of application where
control signals appear as digital pulses rather than analog voltages. One digital pulse to a stepper motor drive
or translator causes the motor to increment one precise angle of motion. As the digital pulses increase in
frequency, the step movement changes into continuous rotation.
Some industrial and scientific applications of stepper motors include robotics, machine tools, pick and place
machines, automated wire cutting and wire bonding machines, and even precise fluid control devices.

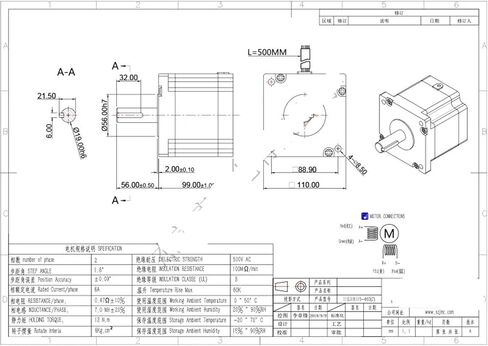

Specification:
Phase: 2;
step angle: 1.8degree
Step angle accuracey: ±0.09º
Rated current per phase: 6A
Resistance per phase: 0.47±10%;
Inductance per phase: 7MH±20%;
Holding Tq: 12N.m;
Rotor Inertia: 6000gcm²;
Dielectric strength:500VAC;
Insulation resistance: 100M/min;
Insulation classe (UL): B;
Temperature Rise Max. 80K
Working ambient temperature: 0~50;
Working ambient humidity: 20%~90%RH;
Storage ambient temperature: -20~70;
Storage ambient humidity: 15%~90%RH;
==========
Current / Phase : 6
Step Angle(degrees) : 1.8
Phase : 2
Model Number : 86J18118-460
Feature 1 : brushless
Feature 2 : stepper motor
Feature 3 : optional
Feature 4 : Position control function
Feature 5 : Stepless speed regulation function
Feature 6 : Support PUL/DIR and CW/CCW modes
Feature 7 : Pulse+direction control. RS232 communication
Feature 8 : Low speed and high-precision position function
Feature 9 : Positive/reverse, emergency stop and lock function
Feature 10 : P
