Motor Drives
Description
Stepper motors are so named because each pulse of electricity turns the motor one step. Stepper motors are
controlled by a driver, which sends the pulses into the motor causing it to turn. The number of pulses the motor
turns is equal to the number of pulses fed into the driver.

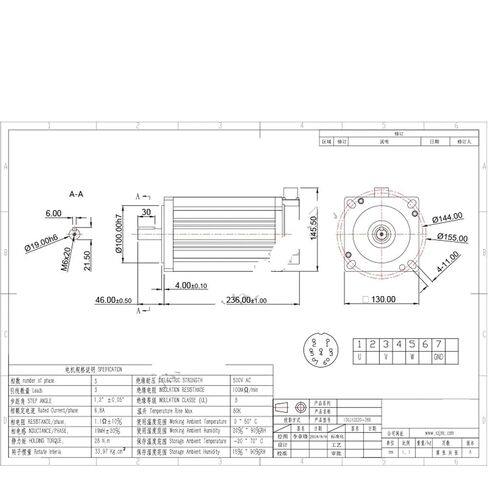

Specification
Phase: 3 ;
step angle: 1.2degree
Step angle accuracey: ±0.05º
Rated current per phase: 6.8 A
Resistance per phase: 1.1±10%;
Inductance per phase: 19MH±20%;
Holding Tq: 28N.m;
Rotor Inertia: 33970gcm²;
Dielectric strength:500VAC;
Insulation resistance: 100M/min;
Insulation classe (UL): B;
Temperature Rise Max. 80K
Working ambient temperature: 0~50;
Working ambient humidity: 20%~90%RH;
Storage ambient temperature: -20~70;
Storage ambient humidity: 15%~90%RH;
==========

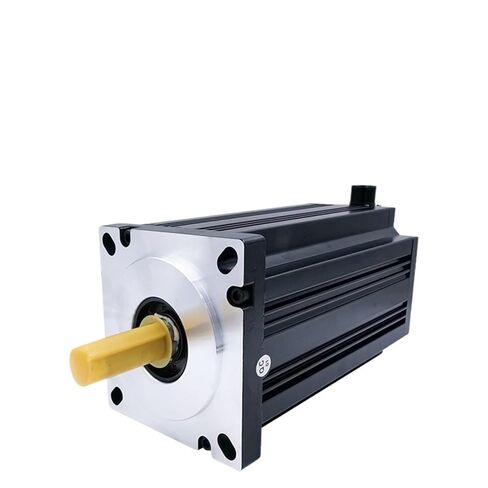

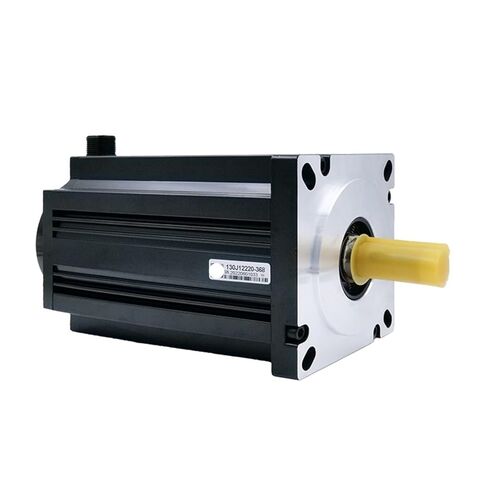

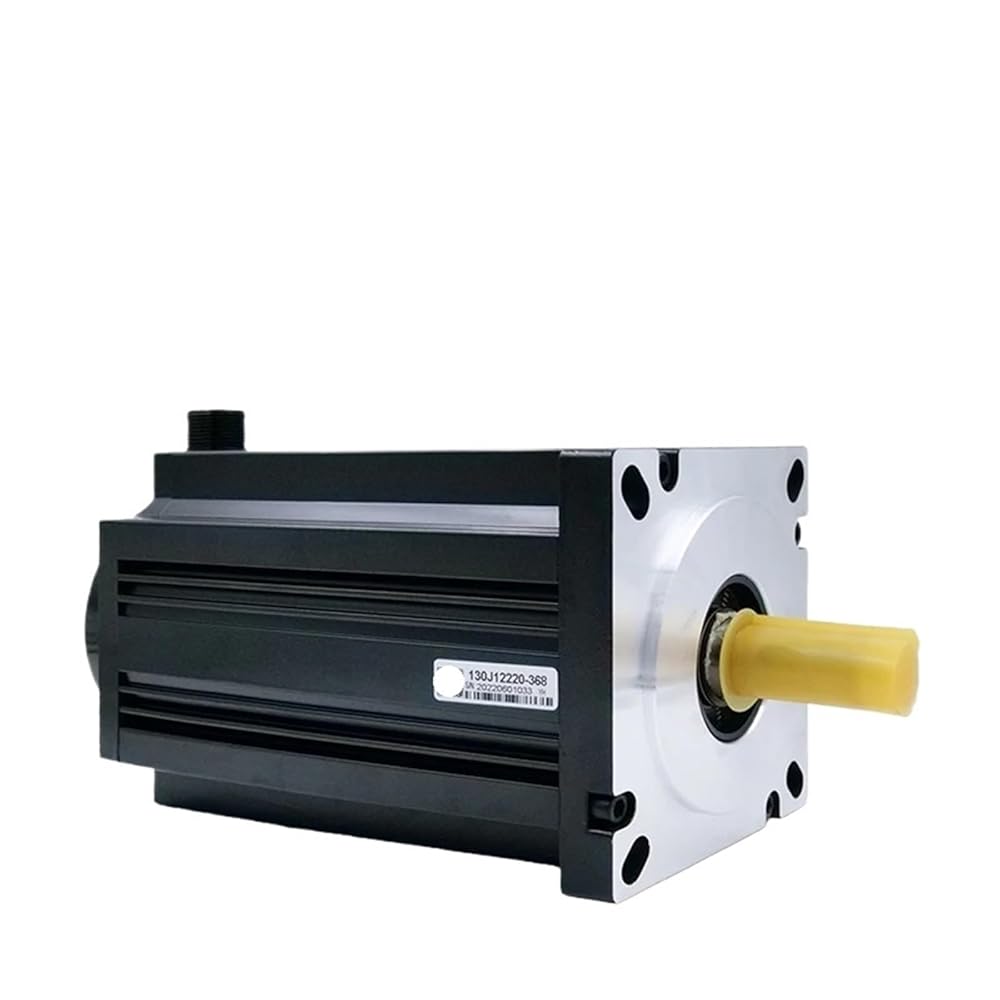

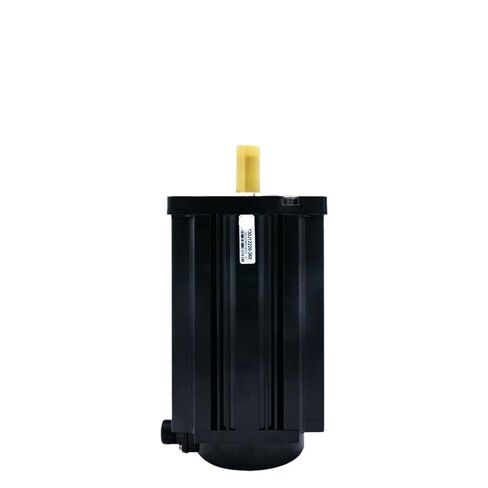

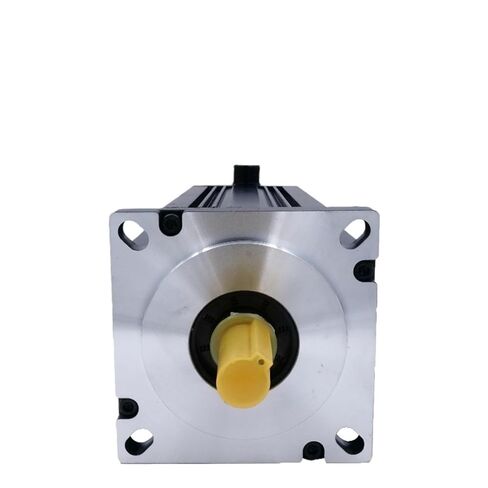

Stepper Motor 3 phase 1.2° 6.8A 130mm frame Stepper motor with strong Holding Tq 28Nm connector
Current / Phase : 6.8
Holding Tq : 28
Step Angle(degrees) : 1.2
Phase : 3
Model Number : 130J12220-368
Feautre 1 : brushless stepper motor
Feautre 2 : optional
Feautre 3 : Position control function
Feautre 4 : Stepless speed regulation function
Feautre 5 : Support PUL/DIR and CW/CCW modes
Feautre 6 : Pulse+direction control. RS232 communication
Feautre 7 : Low speed and high-precision position function
Feautre 8 : Positive/reverse, emergency stop and lock function
