Motor Drives
Description:
Stepper motors are so named because each pulse of electricity turns the motor one step. Stepper motors are
controlled by a driver, which sends the pulses into the motor causing it to turn. The number of pulses the motor
turns is equal to the number of pulses fed into the driver.
Specification:
Phase: 3;
step angle: 1.2degree
Step angle accuracey: ±0.05º
Rated current per phase: 6A
Resistance per phase: 1.24±10%;
Inductance per phase: 22MH±20%;
Holding Tq: 20N.m;
Rotor Inertia: 19600gcm²;
Dielectric strength:500VAC;
Insulation resistance: 100M/min;
Insulation classe (UL): B;
Temperature Rise Max. 80K
Working ambient temperature: 0~50;
Working ambient humidity: 20%~90%RH;
Storage ambient temperature: -20~70;
Storage ambient humidity: 15%~90%RH;
==========
Current / Phase : 6
Holding Tq : 20
Step Angle(degrees) : 1.2
Phase : 3

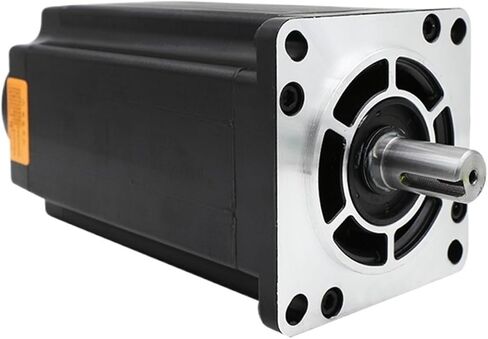

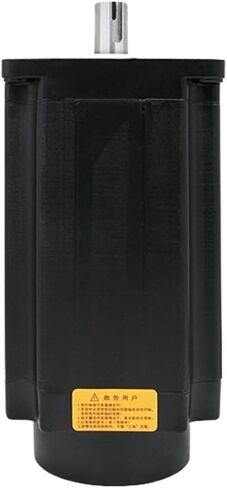

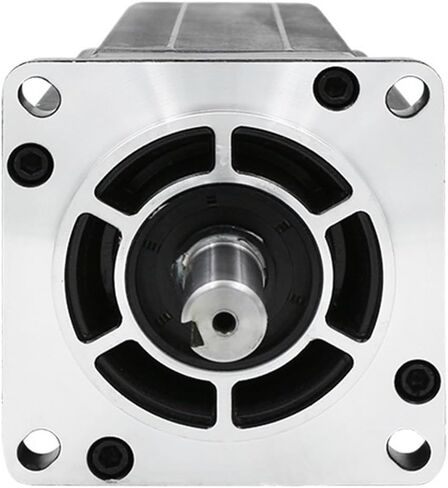

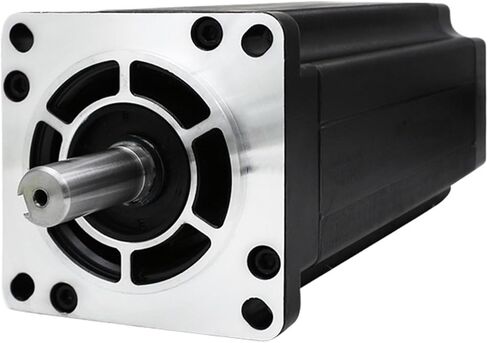

Model Number : 110J12220-360
Feature 1 : optional
Feature 2 : Position control function It can send out a specific number of pulses in advance to get the angle that needs to be output
Feature 3 : Stepless speed regulation function According to the speed of sending pulse the required motor speed can be obtained
Feature 4 : Positive reverse emergency stop and lock function The effect of forward reverse rotation can be obtained by controlling the high and low levels of the system
Feature 5 : Low speed and high-precision position function: Through the control of pulse speed, extremely low speed can be directly obtained without the transition of gears, thereby avoiding power loss and angular position deviation
Feature 6 : Long life No need to commutate through brushes and inverters like ordinary DC motors, thereby reducing friction and increasing life
