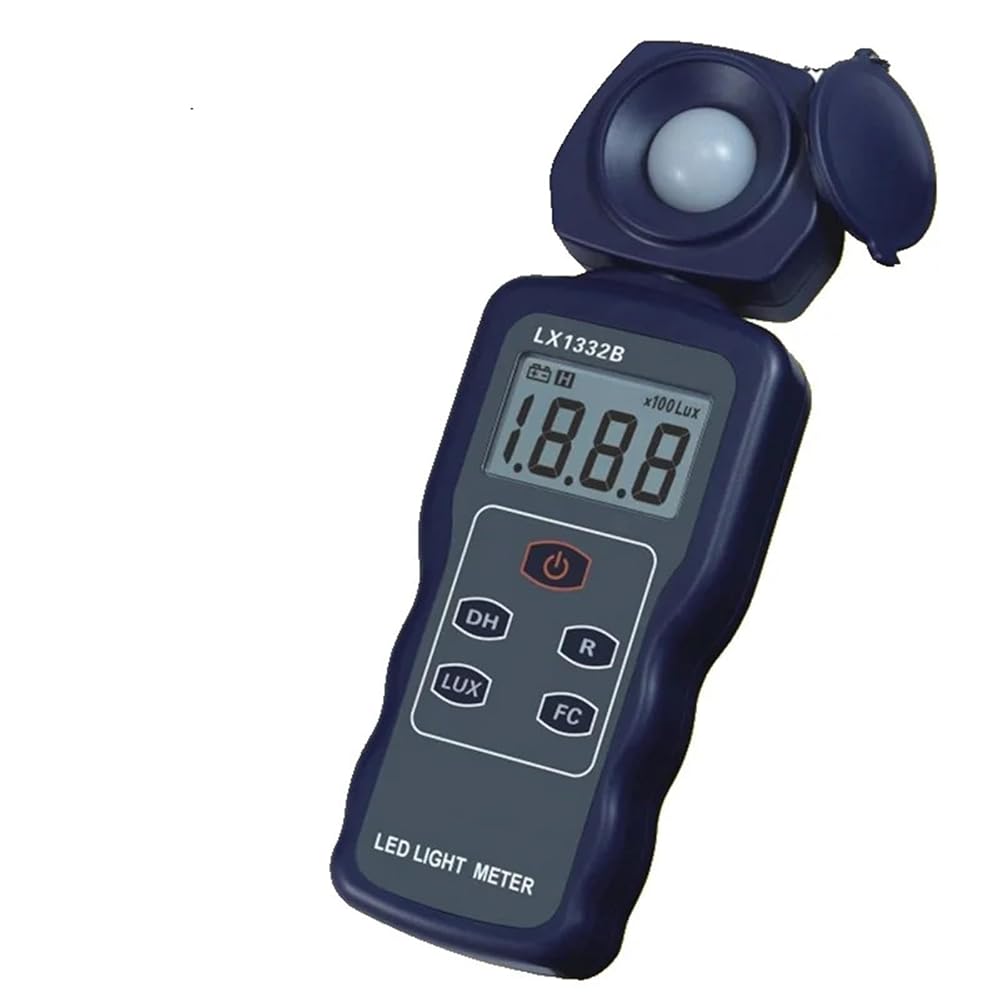

MODEL: LX1332B
Features:
Measuring Ran: 0.1Lux~200,000Lux
Measuring Ran: 0.01FC~20,000FC
High Accuracy and rapid response
Peak Value locked function
Reading locked function
display the symbol and unit
Zeroize automatically
Low power consumption
Specifications:
Display: 3 1/2 digits LCD display, maximum reading value display 1999
Rans: 200Lux, 2,000Lux, 20,000Lux,200,000Lux,
Rans: 200Lux, 2,000Lux, 20,000Lux,200,000Lux,
Accuracy: ±3%rdg±0.5%f.s(>20,000Lux/2,000FC: ±5+10digits)(Calibrated to standard incandescent lamp at color temperature 2856K)
Repeatability: ±2%
Temperature Characteristic: ±0.1%/°C
Test rate: 0.2times/sec
Photo detector: one sil photo diode with filter
Operation temperature-humidity: 0°C to 40°C(32°F-104°F) 0~80%Rh
Stora temperature-humidity: -10°C to 50°C(14°F-140°F) 0~80%Rh
Over-input: indication of "1"
Power:9VBattery (Not Included)
Battery life: 200 hours (estimate)
Dimensions: 149 x 71 x 41 mm
Photo Detector Dimensions: 100 x 60 x 28 mm
Packa List:
Luxmeter LX1332B*1
Carrying case*1
User manual*1
