Features:

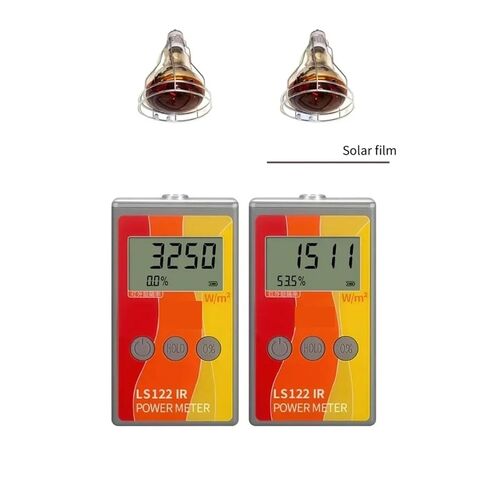

1. The LS122 solar power meter is suitable for testing the infrared rejection peormance of architectural film, automobile
thermal insulation film, solar film, thermal insulation glass and solar equipment.
2. It can be used to measure the radiation intensity (infrared power density) of infrared light sources (sun, infrared lamps,
etc.).
3. The infrared power meter has a fast measurement speed which can automatically convert the infrared rejection rate of the material. The rejection rate will be displayed on the inteace directly for easy reading.
4. The solar power meter has wide spectral response which can test the infrared intensity from 1000nm-1700nm wavelength.
Detector
Spectral Response Curve
Paramenters
Power range
0-40000 W/m²
Measurement accuracy
± 10%
Infrared rejection rate
-999%-100%
Spectral response
1000nm-1700nm
Photosensitive aperture
10mm
Dimension
125mm * 69mm * 24.5mm (L*W*H)
Weight
About 140 g (including battery)
Working temperature
-20 - + 70
Power supply
AAA alkaline dry batteries
