Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular Siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular Siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X/18 and WF25X; Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring, oil); Head: 30 degrees inclined 360 degrees rotatable trinocular Siedentopf; Interpupillary: hinge adjustment 1-7/8inch ~ 2-15/16inch (48mm ~ 75mm); Diopter: adjustable on left eyepiece tube; Nosepiece: revolving, quadruple, reversed; Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm

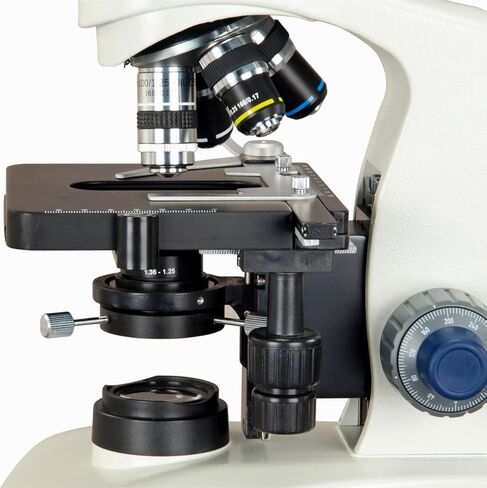

Focus: coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop; Illumination: transmitted replaceable 3W LED light, intensity adjustable; Brightfield condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Oil darkfield condenser: NA1.36-1.25 condenser plus plan 100X/1.25-0.5 160/0.17 objective (oil, spring) with built-in iris diaphragm

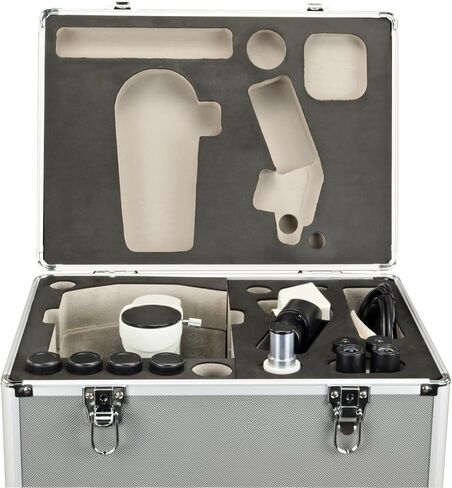

Solid metal base and stand; Power supply: AC 100V ~240V 50/60Hz (US and Canada plug); Carrying case: aluminum
Digital camera: - true color 4912x3684 pixels (18M pixels) - Super speed USB 3.0 connection - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5.6fps at 4912x3684, 18.1fps at 2456x1842, 32.2fps at 1228x922 - Software compatible with Windows, Mac OS X and Linux operating systems - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB3 cable included
5-year warranty against manufacturing defects
Description

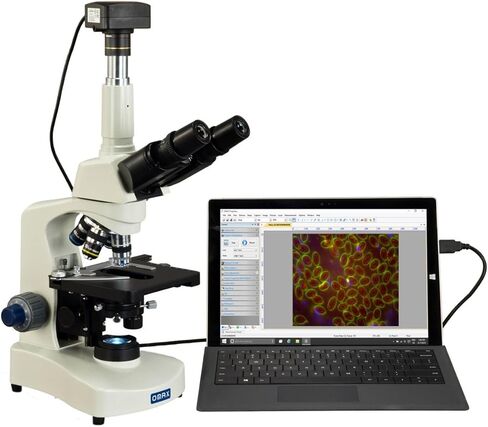

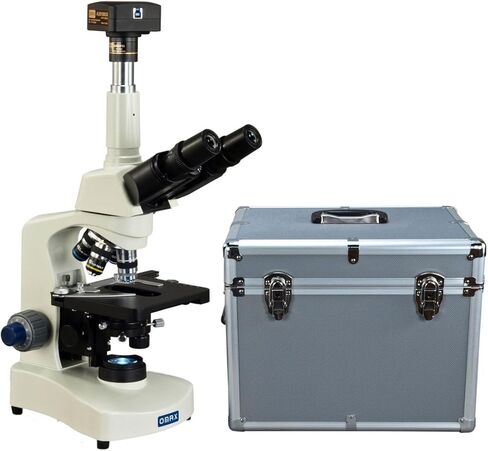

The trinocular compound LED siedentopf microscope 40X-2500X provides brightfield & darkfield microscope system, a super speed 18MP USB 3.0 digital imaging system and an aluminum carrying case. The darkfield microscope features an optical system for simultaneously observing images through eyepieces and an adjustable trinocular port. The 4096x3288 pixels USB 3.0 digital imaging system that captures still microscope images and live video on computer. The included software is compatible with Windows, Mac OS X and Linux operating systems (see version information below). The Windows software can also be used to make measurements. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This darkfield compound microscopy is ideal for professionals and also affordable for students.
