Specification:

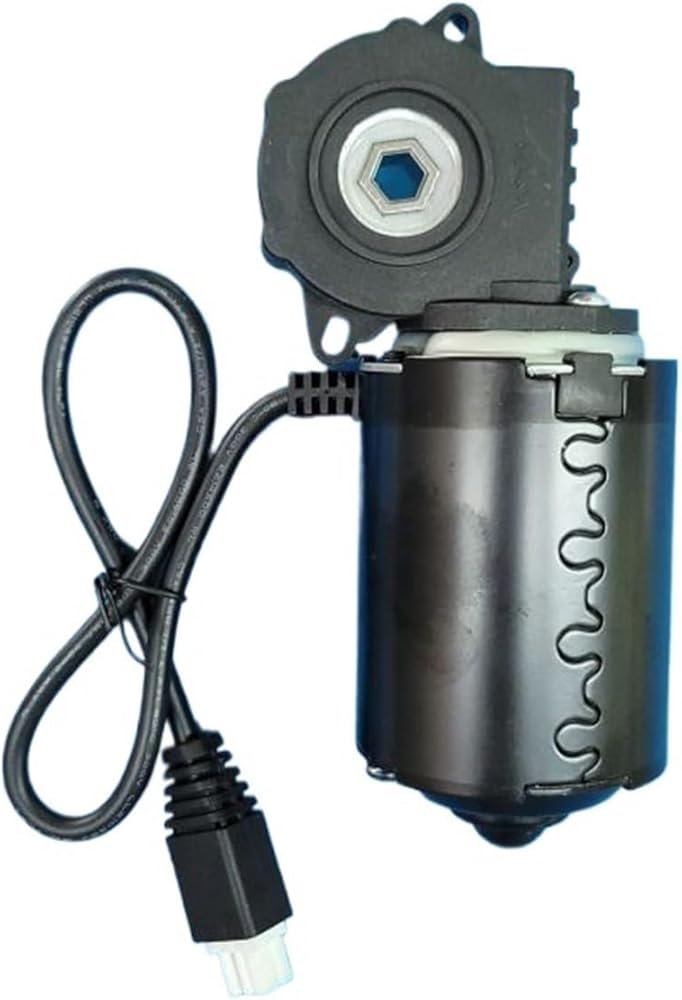

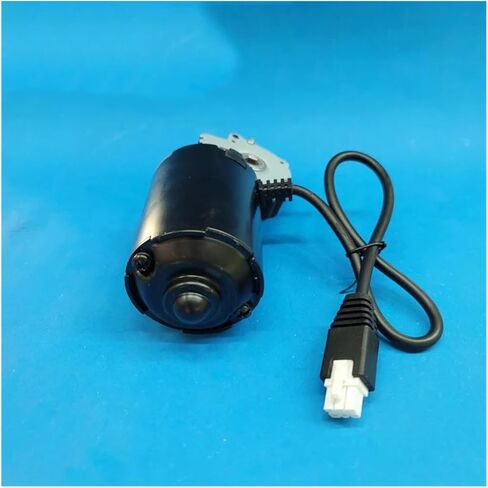

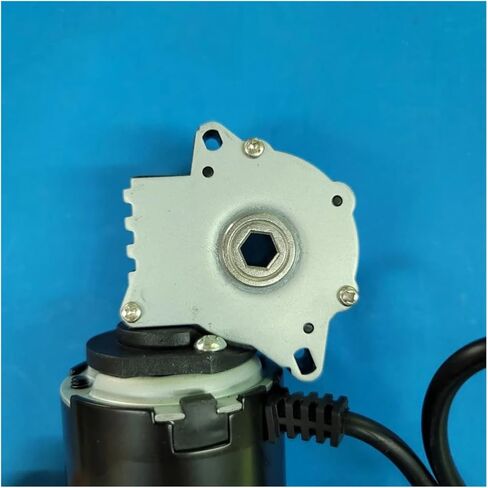

Product name: Electric Lifting Seat Motor
Motor voltage: DC 24V
Rated current: 0.8A
Rated power: 48W
Rated torque: 5.733NM
Motor reduction ratio:1:39

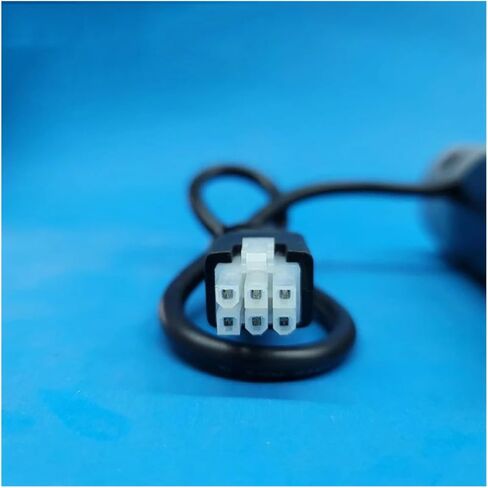

Length of straight wire: 400MM
Motor bearing: 50KG
No load speed: 95RPM

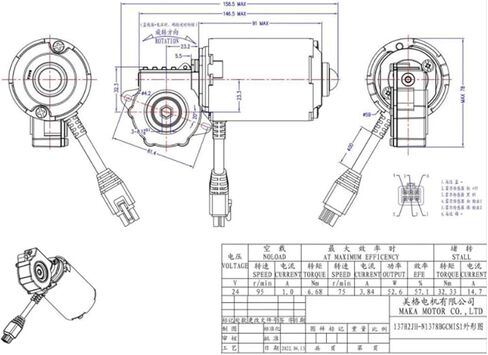

Overall dimension: 78x156MM

1, use the 5±0.5V power supply and connect the positive and negative terminals of the power cable to 5V and GND, and the positive terminal of the multimeter to SA.
2, turn the magnetic ring, the multimeter will alternately display 0.6V or 4.8V two values.
3, in the same way, connect the positive pole of the multimeter to SB and turn the magnetic ring, and the multimeter will alternately display two values of 0.6V or 4.8V.
4, the Angle between A Hall element and B Hall element is 90°.
