المغزل 3.2KW 220V/380V تبريد الماء محرك المغزل 4 محامل ER20 φ100x265 لجهاز CNC AROUTER WOODWORKING ANGRAIVE MICHER in Kuwait المغزل 3.2KW 220V/380V تبريد الماء محرك المغزل 4 محامل ER20 φ100x265 لجهاز CNC AROUTER WOODWORKING ANGRAIVE MICHER in Kuwait المغزل 3.2KW 220V/380V تبريد الماء محرك المغزل 4 محامل ER20 φ100x265 لجهاز CNC AROUTER WOODWORKING ANGRAIVE MICHER in Kuwait المغزل 3.2KW 220V/380V تبريد الماء محرك المغزل 4 محامل ER20 φ100x265 لجهاز CNC AROUTER WOODWORKING ANGRAIVE MICHER in Kuwait المغزل 3.2KW 220V/380V تبريد الماء محرك المغزل 4 محامل ER20 φ100x265 لجهاز CNC AROUTER WOODWORKING ANGRAIVE MICHER in Kuwait

المغزل 3.2KW 220V/380V تبريد الماء محرك المغزل 4 محامل ER20 φ100x265 لجهاز CNC AROUTER WOODWORKING ANGRAIVE MICHER

KWD 313
ماركة
KIRANDY
فئة
ساندرز
وزن
499 g
اللون3.2kw ER20 380V
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

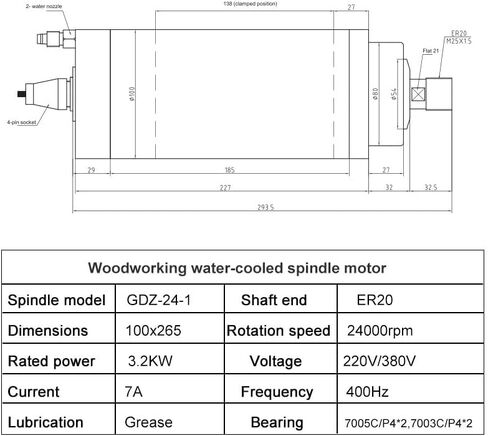

  • Middle body diameter: 100x265
  • Speed regulation mode: change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
  • Cooling method: water cooling

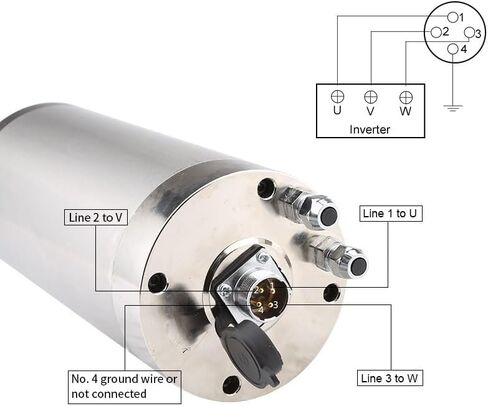

  • Power interface: YX20-4 pin waterproof aviation adapter is optional. The aviation adapter marked "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), and the 4 connected to the inverter will Ground the equipment.

وصف

Power: 3.2kw
Voltage: 220v 380v
Current: 7.0A
Frequency: 400Hz
Speed: 24000rpm
Runout: less than 0.01mm
Bearing type: 7005C/P4*2,7003C/P4*2
4 ball bearings
Number of phases: 3

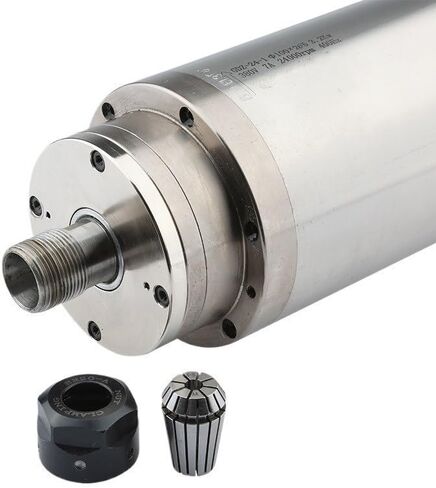

Chuck: ER20
Water-cooled ER20 chuck
Grease lubrication

The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.
