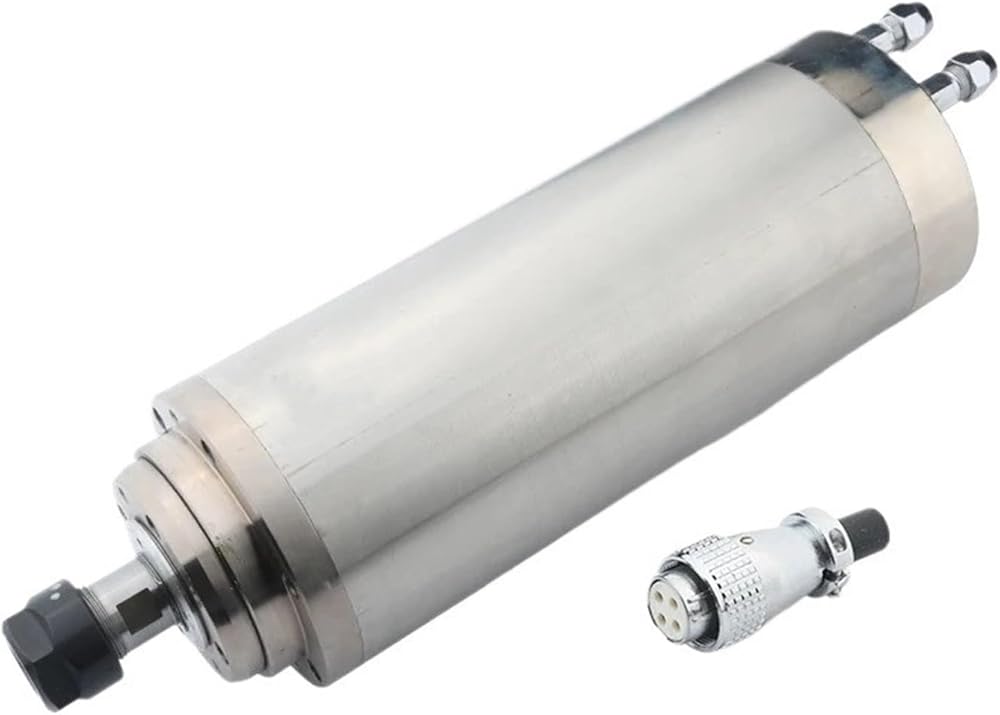

المغزل 3.2KW ER20 محرك المغزل المبرد بالمياه 220V/380V 100 مم لجهاز CNC Woodworking Milling Machine Tools (3.2kw ER20 380V)

KWD 276
ماركة
KIRANDY
فئة
ساندرز
وزن
1 kg
اللون3.2kw ER20 380V
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

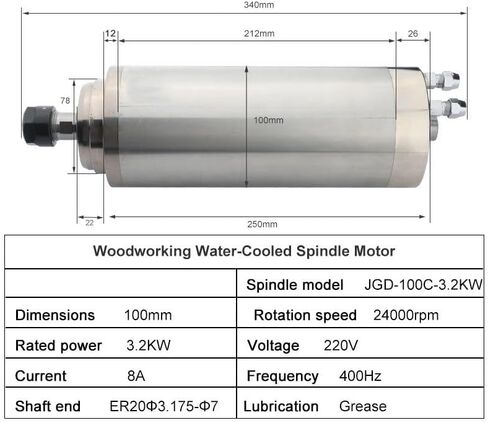

  • Size: 100mm (diameter of middle body: 100mm x length: 340mm)

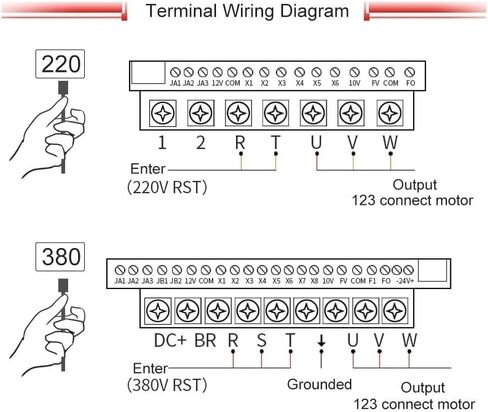

  • Speed regulation mode: The spindle speed can be changed by three-phase output inverter and adjusting the frequency of the inverter.
  • Cooling method: water cooling

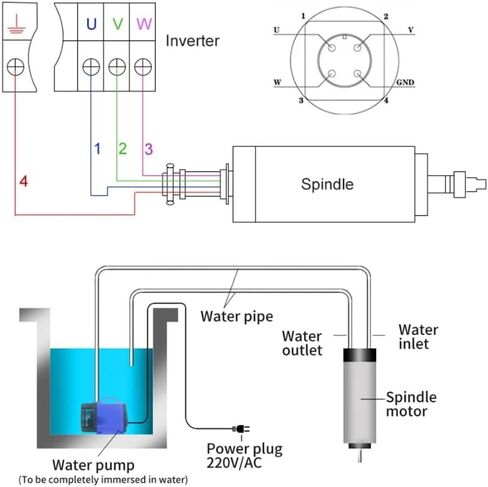

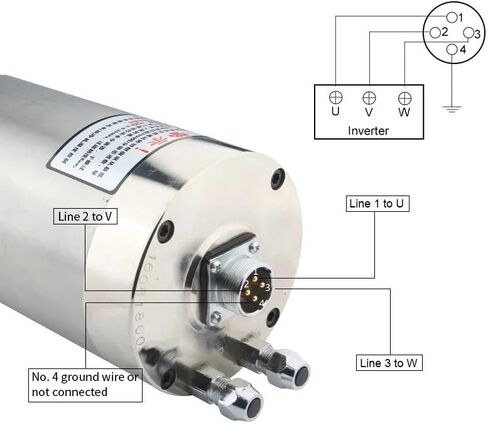

  • Power interface: Optional H20-4 pin waterproof air adapter. The air adapter labeled "1", "2", "3", "4", "1", "2", "3" are connected to the inverter (U, V, W), 4 are connected to the inverter The device is grounded.

وصف

Power: 3.2kw
Voltage: 220v
Current: 8A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter (mm): 100
4 fully sealed angular contact bearings

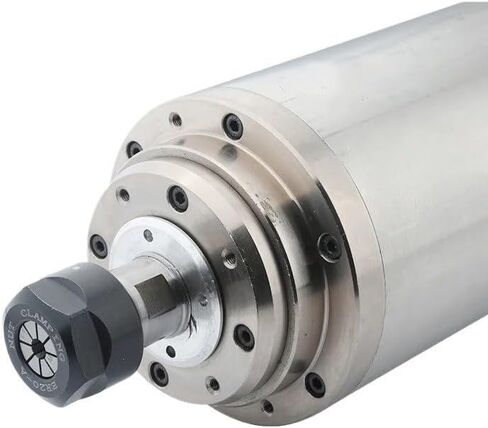

Chuck: ER20
Clamping tool diameter: 13mm,12.7mm,12mm,11mm,10mm,9mm,8mm,7mm, 6.5mm, 6.35mm, 6mm, 5.5mm, 5mm, 4.5mm, 4mm, 3.5mm, 3.175mm, 3mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 6mm)
Water-cooled ER11 chuck
Grease lubrication
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.
