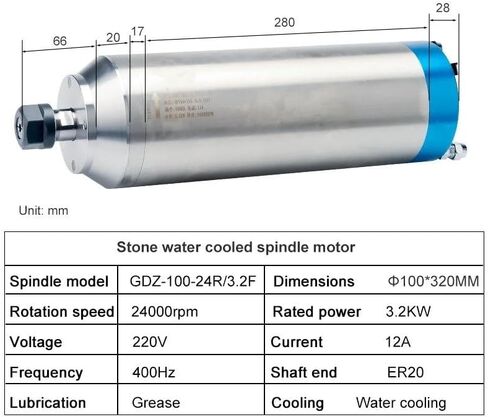

Power: 3.2kw

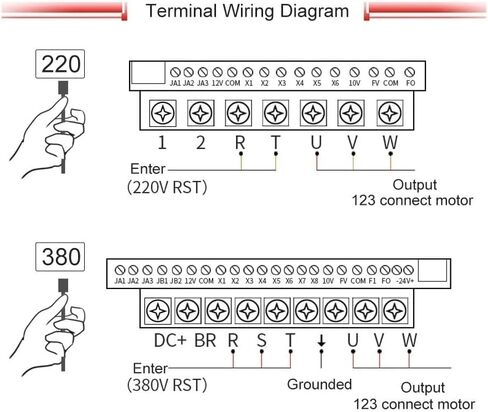

Voltage: 220v 380v
Current: 12A
Frequency: 400Hz
Speed: 24000rpm
Runout: less than 0.01mm
Bearing type: 7005C/P4*2,7003C/P4*2
4 ceramic ball bearings

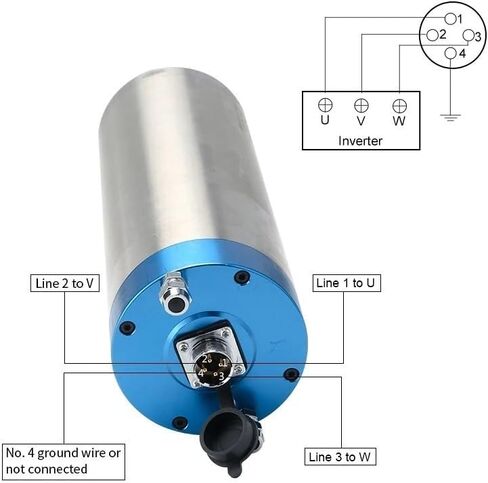

Number of phases: 3
Chuck: ER20

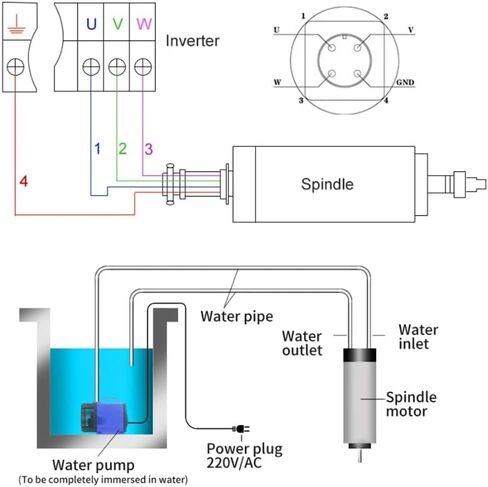

Water-cooled ER20 chuck
Grease lubrication
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.
