Our products are sold worldwide and are highly regarded. We have very high quality standards for our products, if you have any questions about our products, please contact us. We will reply within 24 hours.
Description:
Material: aluminum alloy and Acrylic
Power: 50W
Voltage: 24VDC
Speed:12000 r / min, 7 grade speed
Size:20.5X6X5.5 mm
The theoretical maximum turning diameter: 4mm
The theoretical maximum clamping length: 25mm
Chuck clamping range: 0.6-25mm
Power Adapter:
Input: AC110V- 240V~50/60Hz 1.5A max
Output:12/15/16/18/19V 4.5A max; 20/24V 4A max
Wire length:1.1m+1.1m
Features:
High-precision, stability, low noise.
Designed for the home DIY enthusiasts, small and portable, strong power.
Transparent plexiglass shield, super convection cooling holes.
Large torque ball bearing motor.
Precautions:
1.If the user does not have lathe base experience, when used, should follow: low speed, slowly, cautiously and other operations.
2.The speed can be adjusted in 4000-8000R, cut wood should not exceed 4000, grinding can use higher speed.
3.Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4.If not a cylinder, the speed should be reduced.
5.Tailstock bearing without lock tight.
6. When using a knife, locking the bottom of screw, location should be away from timber 1-1.5cm.
7.If you do not really understand the operation, it is to consult a professional person.
Package include:

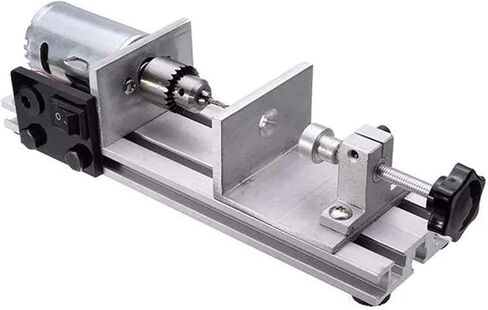

1 x Buddha Lathe
1 x Power Adapter
1 x lathe tool
3 x key type drill chucks
