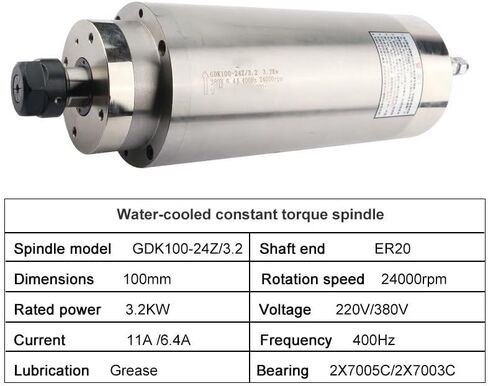

Power: 3.2kw
Voltage: 220V 380V
Current: 11A/6.4A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm

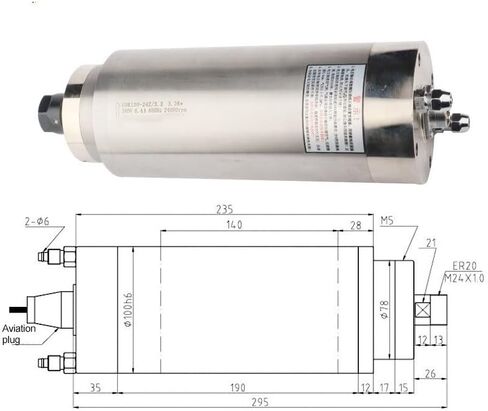

Diameter (mm): 100
4 fully sealed angular contact bearings

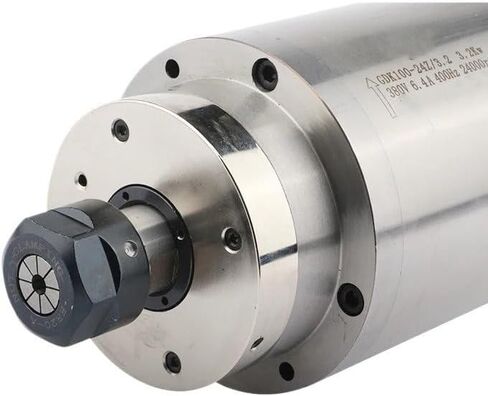

Chuck: ER20
Grease lubrication
Main Application: Engrave for wood,nPCB,PVC, plas-tic,duotone board(ABS)and etc nonmetal, also can engrave on gold,sil-ver.copper, aluminium,Pb etc soft metal surface working
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.
