Power: 0.8kw
Voltage: 220v
Current: 5.0A
Frequency: 400Hz
Speed: 24000rpm
Number of strokes: 2
Jump close: less than 0.01mm
Diameter (mm): 65
4pcs ceramic ball bearings (fully sealed angular contact bearings)

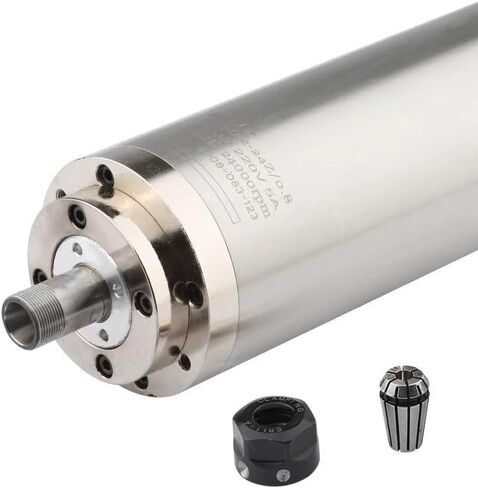

Chuck: ER11
Clamping tool diameter: 7mm, 6.5mm, 6.35mm, 6mm, 5.5mm, 5mm, 4.5mm, 4mm, 3.5mm 3.175mm, 3.0mm, 2.5mm, 2mm, 1.5mm, 1mm (standard 4mm)
Water-cooled ER11 chuck block
Grease lubrication

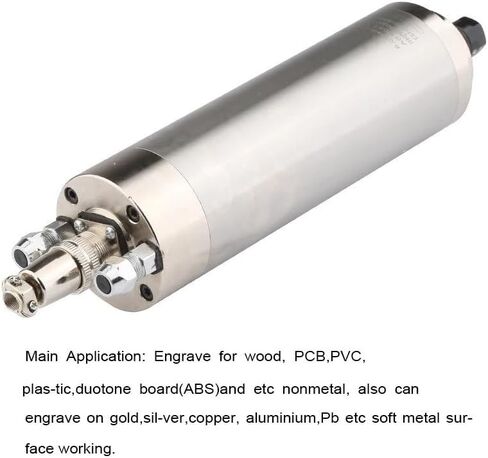

Main application: carving iron, steel, stainless steel, aluminum, hardwood, etc. (this is a professional metal spindle with high precision and large torque)
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular ceramic bearings can extend the life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
Accuracy is 0.01mm, coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. The bearing is resistant to high temperature and low temperature
3. The ball bearing has low friction, low noise and long service life.
When the spindle is stored and transported, the bearing condition inside the high-speed grease will change, and the customer should run it at low speed for 30 minutes. Then increase slowly at a speed of 3000 rpm, running for 20 minutes each time. The spindle and inverter should work together. The specifications and parameter of the inverter match the spindle parameters.

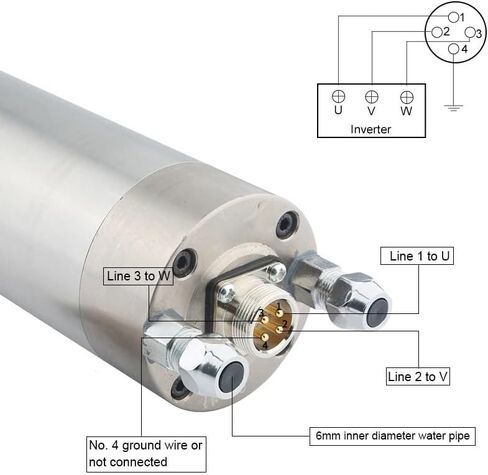

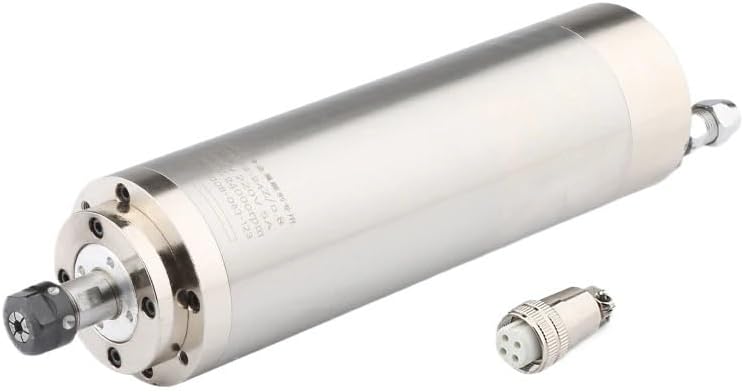

To connect the inverter main shaft, the three-phase inverter power cord should be welded to the plug 1 (U), 2 (V), 3 (W) pin, and the grounded pin 4. After turning on the power, observe whether the spindle rotation axis always shows the direction. If it is inconsistent, turn it off immediately, and replace the two wires of the three-phase power
