Grease lubrication
Main use: Carving wood,PCB, PVC, PM-MA, plastic, two-color board (ABS) and other non-metals.
1.Double sealing and air sealing structure
double sealing air seal structure greatly improves the waterproof performance, which is widely used in copper, aluminum, steel and other gold,it is the center field of carving,cutting,stone and CNC fine carving processing.
2.Equipped with standard BT30 taper holes
The shaft ends are connected with standard BT30 taper holes. The spindle adopts 4 imported high-precision P4 bearings, which effectively ensures the operation and machining accuracy of the spindle.
The working environment temperature of the spindle is usually -10~40.
Rotate the spindle head by hand before installing the spindle, make sure it is flexible and without blockage.
4 pole fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer of the length, the greater of the torque and power.
Carefully assembled makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3.Ceramic ball bearings: low friction, low noise and long service life.
The water-cooled spindle must be used together with water pump. Otherwise, the spindle will quickly break.
The AC spindle motor must be used together with inverter. The power of the inverter needs to be equal to or larger than the spindle. Before using, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.
When using the spindle, if the sound is different from before, so please stop it immediately and replace the spindle bearing.

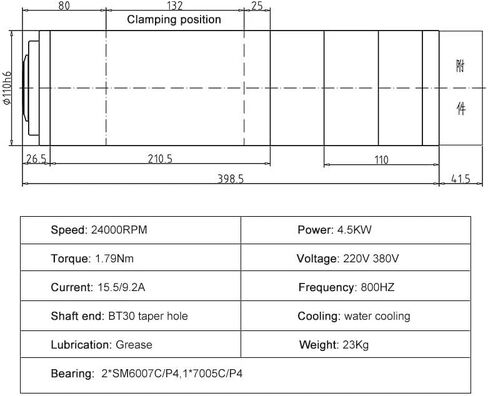

The electric spindle must be installed in the clamping position, otherwise it is easy to damage the bearing!
2. The spindle must be completely stopped to change the tool, and the
