Model Number: DZB312B002.2L2DK
Power: 2.2 kw
Input voltage: 220v (± 20%)
Input phase: 1 or 3 phase
Input frequency: 50-60Hz (± 5Hz)
Output voltage: 220V/380V
Output phase: 3 phase
Output current: 10A
Output frequency: 0-1000Hz
Control method: V/F control

Two speed control modes: V / F control
No PG vector control (SVC): starting torque 0.5Hz up to 150%
8-stage simple PLC function, multi-speed control and pid regulation
Support multiple frequency sets: digital setting, analog setting, PID setting, RS485 communication setting

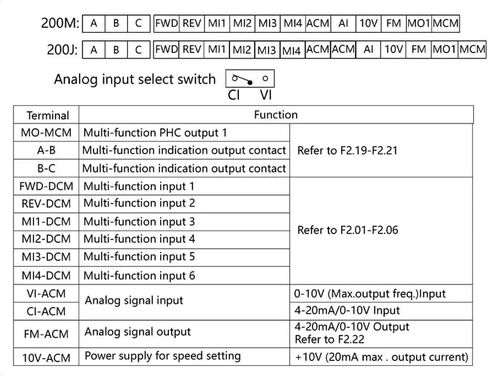

I / O terminals can be freely programmed to combine multiple working modes according to user needs.
With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.
With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure
With over torque and under torque detection
Automatic voltage adjustment function to effectively solve the low frequency vibration problem of high power motor
Offer a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation
Built-in reactor with inverter above 37kW, which improves the power factor of the input side and improves the efficiency and stability of the whole machine.
0.75 ~ 15kW built-in braking unit.
