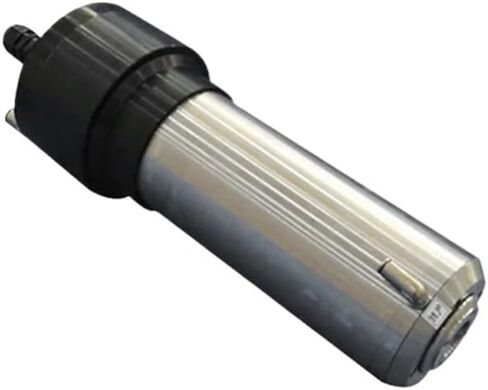

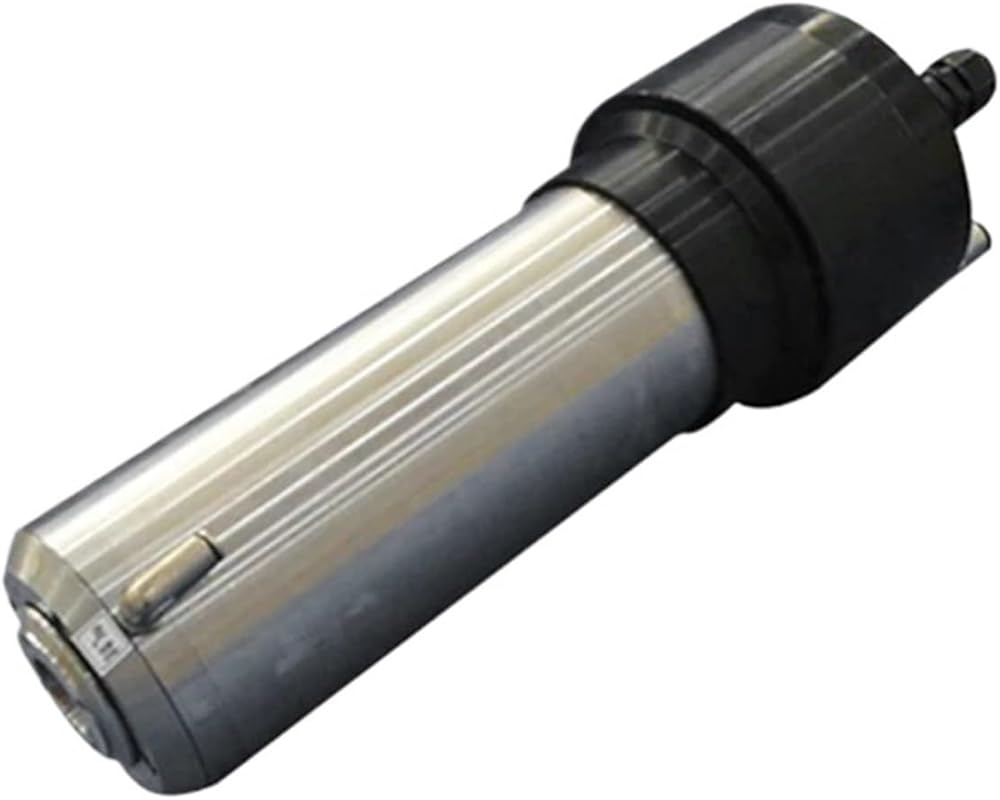

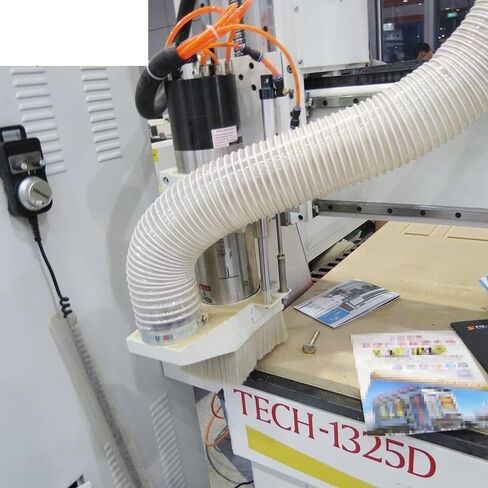

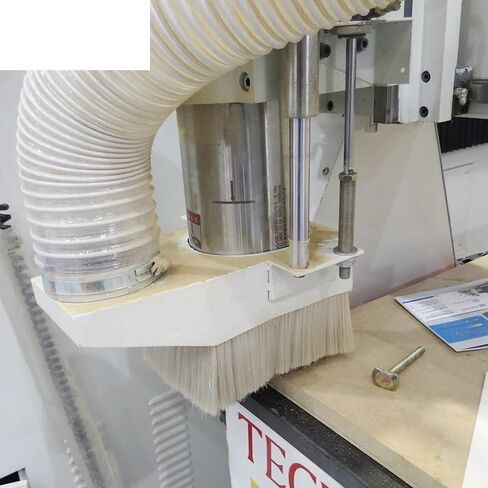

Main use: Carving wood,PCB, PVC, PM-MA, plastic, two-color board (ABS) and other non-metals.

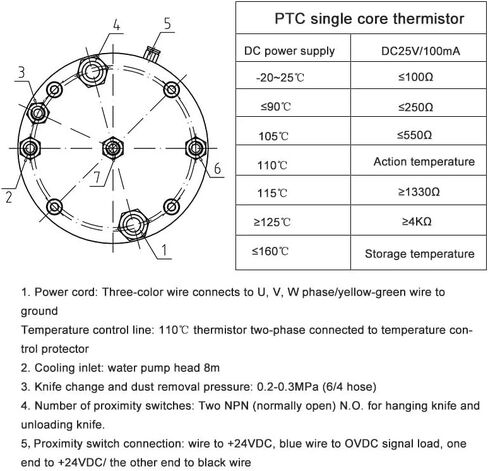

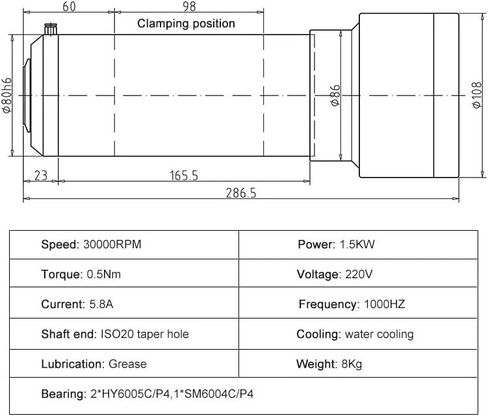

1. Power cord: Three-color wire connects to U, V, W phase/yellow-green wire to ground
Temperature control line: 110 thermistor two-phase connected to temperature control protector
2. Cooling inlet: water pump head 8m
3. Knife change and dust removal pressure: 0.2-0.3MPa (6/4 hose)
4. Number of proximity switches: Two NPN (normally open) N.O. for hanging knife and unloading knife.
5,Proximity switch connection: wire to +24VDC, blue wire to OVDC signal load, one end to +24VDC/ the other end to black wire
6. Air seal pressure: 0.1-0.2MPa (4/2 hose)
7. Cooling water: (2 and 6 ends are connected to 8/6 hose)
8. Cylinder intake pressure: 0.65MPa (6/4 hose)
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.
The water-cooled spindle must be used together with the water pump. Otherwise, the spindle will quickly break.
The AC spindle motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the spindle. Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.
When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace
