Grease lubrication
Main use: Carving wood,PCB, PVC, PM-MA, plastic, two-color board (ABS) and other non-metals.
1.Double sealing and air sealing structure
double sealing air seal structure greatly improves the waterproof performance, widely used in copper, aluminum, steel and other gold is a carving and cutting and stone and CNC fine carving processing center field

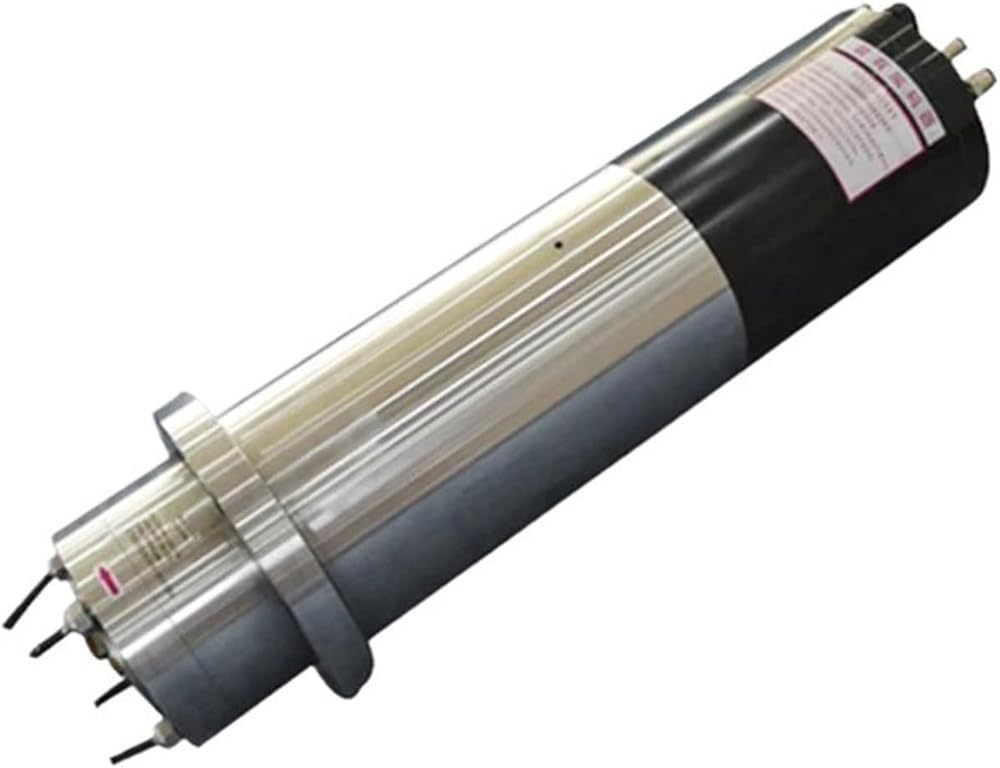

2.Equipped with standard BT40 taper holes
The shaft ends are connected with standard BT40 taper holes. The spindle adopts 4 imported high-precision P4 bearings, which effectively ensures the operation and machining accuracy of the spindle
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular contact ceramic bearings can extend the service life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. Ceramic ball bearings have low friction, low noise and long service life.
The water-cooled spindle must be used together with the water pump. Otherwise, the spindle will quickly break.
The AC spindle motor must be used together with the inverter. The power of the inverter needs to be equal to or greater than the power of the spindle. Before use, please set the inverter parameters suitable for the spindle. Otherwise, the spindle and inverter will break immediately.
When using the spindle, the noise is different from before, so please stop the spindle immediately. You need to replace the spindle bearing.
1. The electric spindle must be installed in the clamping position, otherwise it is easy to cause damage to the bearing!
2. The spi
