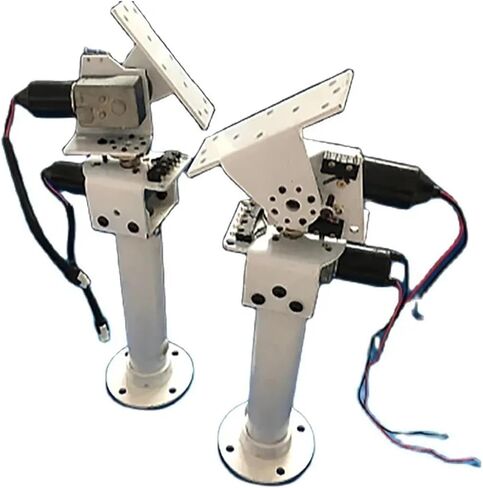

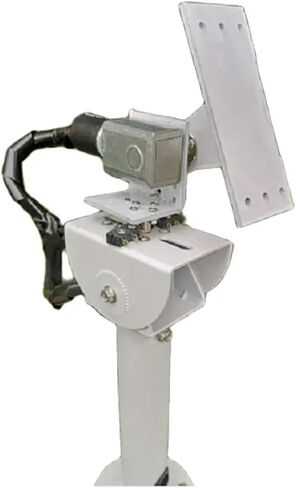

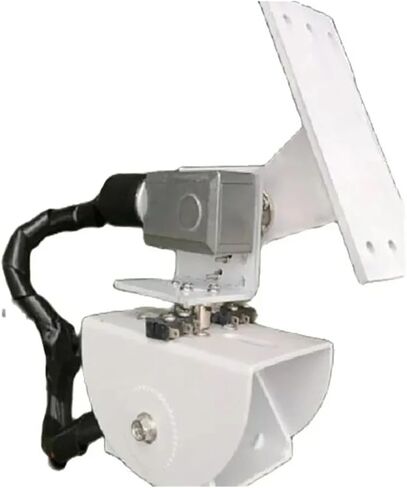

DIY DC DUAL AXIS PAN TILT TILT TILT TILT TILL TILL TILL TILL ROBOT ROBOT ROBOT HIGHT TORQUE HIGH

KWD 84
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • The fuselage is made of all-metal, and the bracket is made of ultra-thick aluminum alloy, with excellent stability! Ultra-low-speed worm gear motor, all-metal gear, torque 35KG, with self-locking, to achieve all-round dual-axis tracking, two horizontal limit switches, and two vertical limit switches to prevent winding wires.
  • Motor voltage: 5V-12V-24V
  • Motor power: 30W
  • Horizontal rotation angle: 340°

وصف

Specification:
Motor name: worm gear motor
Motor voltage: 5V-12V-24V
Motor power: 30W
Horizontal rotation angle: 340°
Pan Tilt base size: 86MM
Pan Tilt Height: 420MM
Pan Tilt Mounting Panel: 40x100MM
Worm: 240MM
Horizontal load bearing: 60KG
Vertical rotation angle: 120°
Vertical load: 25KG
Bracket material: aluminum alloy + 3MM steel plate
Gearbox material: all metal gears

Product weight: 1.02KG
