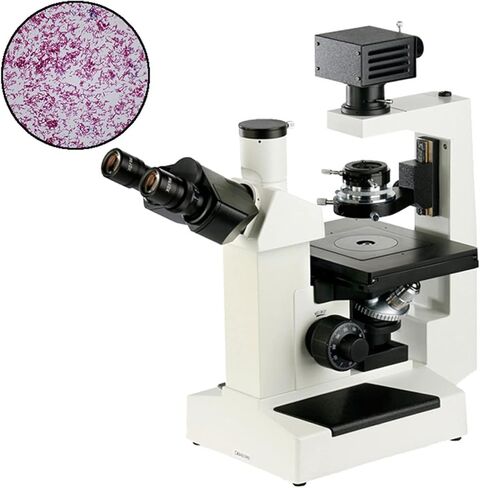

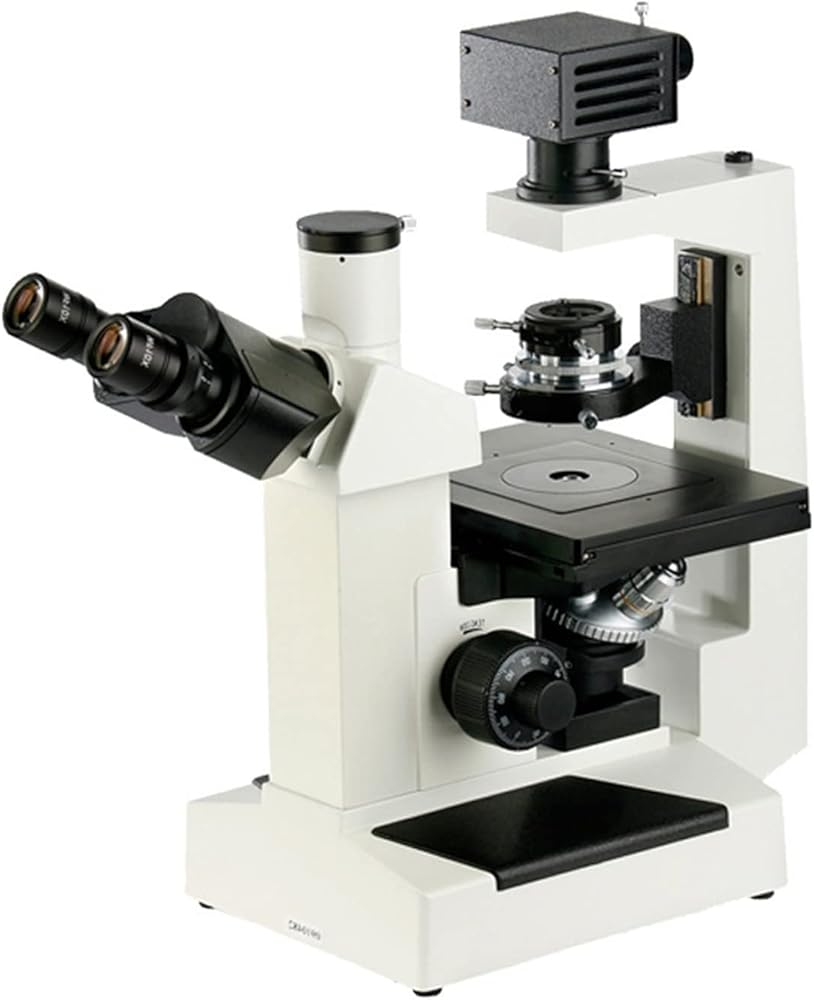

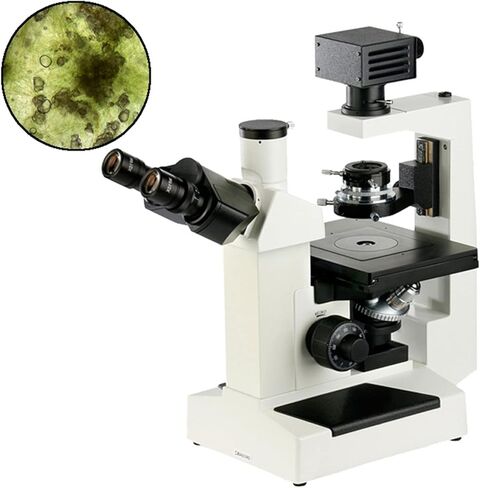

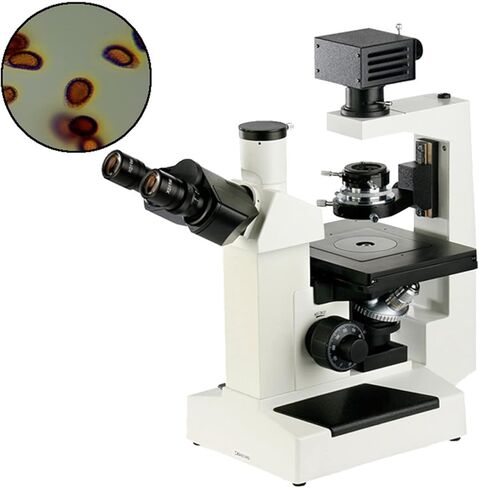

Product name: Inverted Biological Microscope
Magnification: 400X
Digital multiple: 4000X
Eyepiece: wide field objective eyepiece WF10X (field of view 20mm)
Objective: Long working distance plan achromatic objective 10X25X40X, phase contrast objective 10X;
Eyepiece tube: hinged trinocular observation tube, 30° tilt, 100% light-emitting photography;
Converter: four holes (inward-oriented ball positioning);
Loading platform: double-layer mechanical mobile platform, moving range: 75mm×30mm
Petri dish support plate 1: inner tank size: φ68mm;
Petri dish Toban 2: Inner tank size: 34mm×77.5mm, which can be adapted to round petri dish φ68.5mm;
Focusing mechanism: coarse and fine coaxial focusing mechanism, fine adjustment accuracy 0.002mm;
Condenser: plug-in type phase contrast condenser, working distance 30mm;
Light source: 6V20W with adjustable brightness;
Color filters: blue and green color filters, frosted glass;
Camera interface: 1X standard C interface
