Special Features

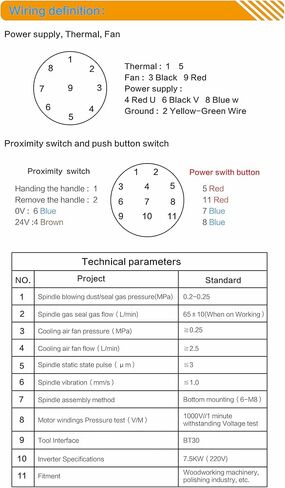

Parameters of Spindle: Model Number: RTM120x103-30-24/7.5; Power: 7.5KW; Voltage: 220V; Maximum Torque: 7.2N.m; Rated torque: 6N.m; Rated Speed: 12000RPM; Max Speed: 24000RPM; Max. Frequency: 800Hz; Bearing: 4 bearings(2x7008 nd 2x7006); Nose: BT30; Motor pole: 4 Pole; Current: 12A; Defend grade: IP53; Insulation grade: F

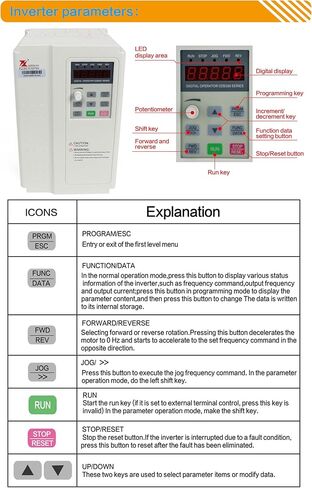

Parameters of VFD: 7.5KW Fuling VFD Inverter 220V; Input Phase: 1 phase or 3 phase; Input Frequency: 50-60Hz (±5Hz); Output Voltage: 220V; Output Phase: 3 phase; Output Current: 31A; Output Frequency: 0-1000Hz; Control Method: V/F control
Advantages of Spindle: This spindle is built-in type spindle motor, built-in three asynchronous motors,as the spindle has a compact structure,high power, big torque, small vibration, low noise characteristics,so it can achieve high speed,high powe cutting,high recision and high stability operation.The bearing of spindle use grease lubricated angular to contact bearings
Multi functional of the VFD: 8-stage simple PLC function, multi-speed control and PID control;Support multiple frequency settings:digital setting, analog setting, PID setting, RS485 communication setting;I/O terminals can be programmed;With over torque and under torque detection;Automatic voltage adjustment function;Over-current,over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring
User manual: The spindle and VFD will be sent out after testing,and we will provide the PDF user manual of the spindle and VFD,pls notice all parameters of the VFD are pre-set before leaving the factory,so you can directly use it to run the spindle,no need to set up the VFD
