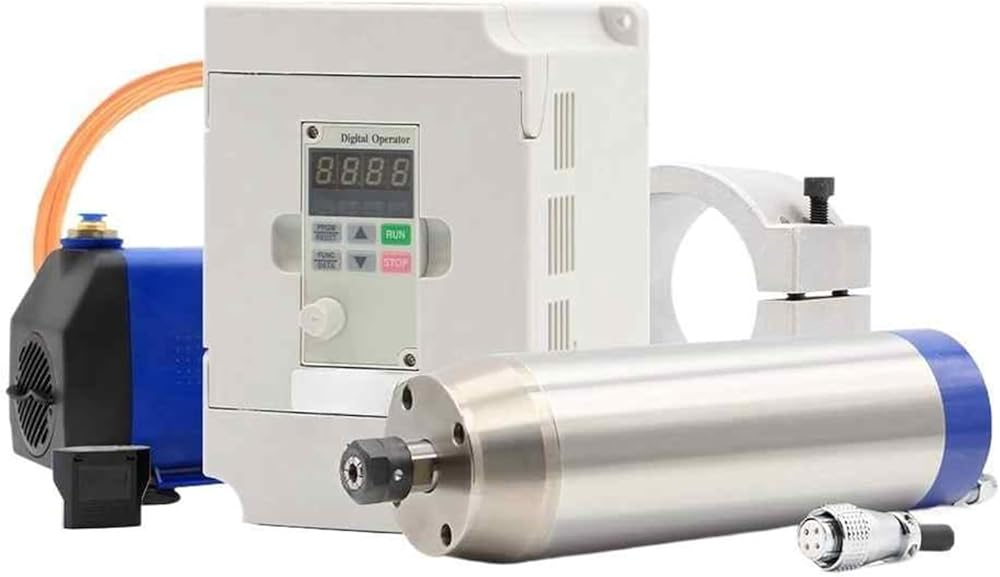

1.5KW ER16 Water Cooled 80mmMetalSpindle400Hz Pole=2 Diameter =80mm
15KW Inverter VFD GDZB300 GBD600

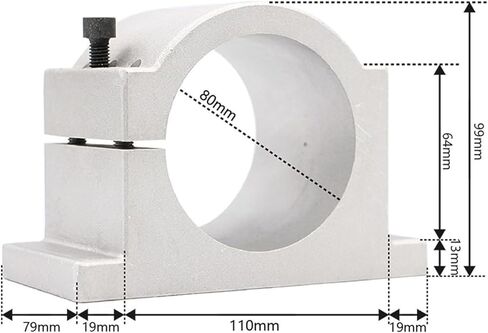

80mm Aluminium Bracket Holder
75W Water pump 5M

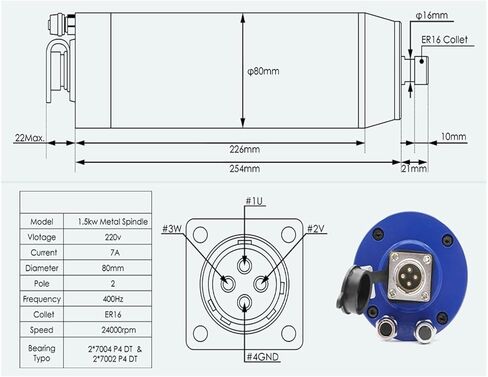

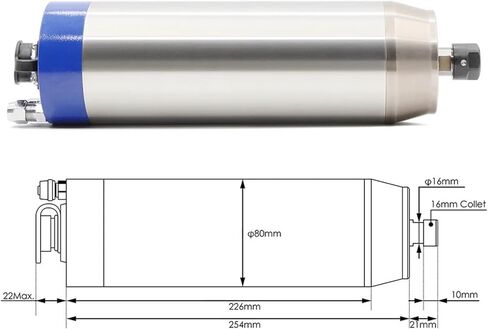

Size80x226mmMiddle body diameter80mmxLength:226mm)
Cooling:Water cooling
Power:1.5kw
Voltage:220v
Current:7A
Frequency:400Hz
Speed:24000rpm
Pole: 2
Runout Off:Less than 0.01mm
Diameter(mm):80
Bearing Type:2 x7004 P4 DT & 2 x 7002 P4 DT

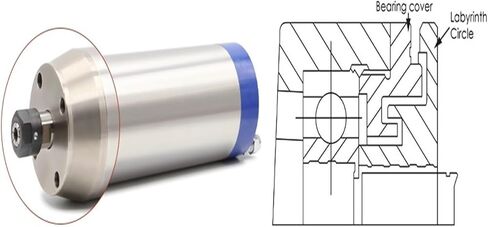

4pcs Ceramic Ball Bearings fully sealed angular contact bearings
ColletER16
Clip diameter13mm12mm127mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)
Water Cooling ER16 collet chunk
Grease Lubrication
Ceramic ball bearings,full sealed angular contact ball bearings,2×7004 P4 DT&27002 P4
Precision0.01mm.

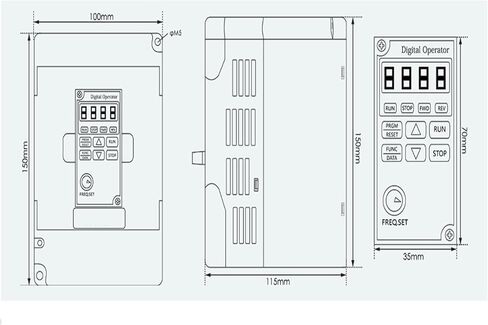

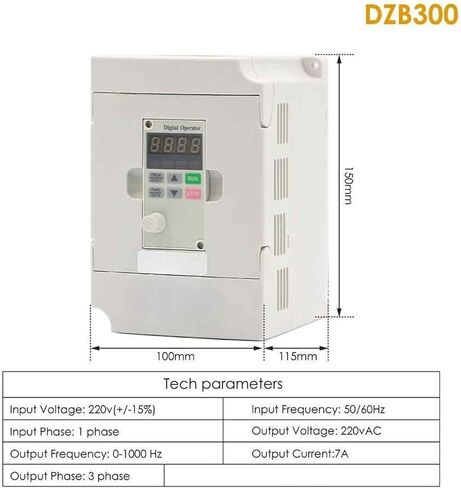

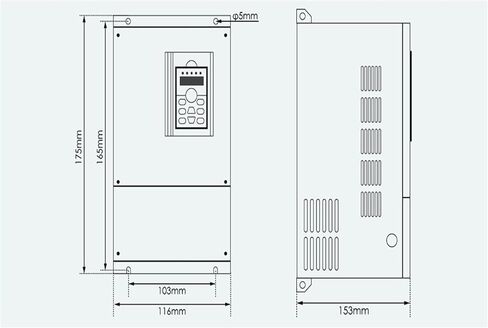

Inverter Type: 1.5KW DZB300-Series
Input Voltage: 220v(+/-15%)
Input Frequency: 50/60Hz
Input Phase: 1 phase
Output Voltage: 220vAC
Output Frequency: 0-1000 Hz
Output Current:7A
Output Phase:3 phase
Inverter Type: 1.5KW BD600-Series
Input Voltage:220v(+/-15%)
Input Frequency:50/60Hz
Input Phase:3 phase
Output Voltage:220vAC
Output Frequency:0-1000 Hz
Output Current:7A
Output Phase:3 phase

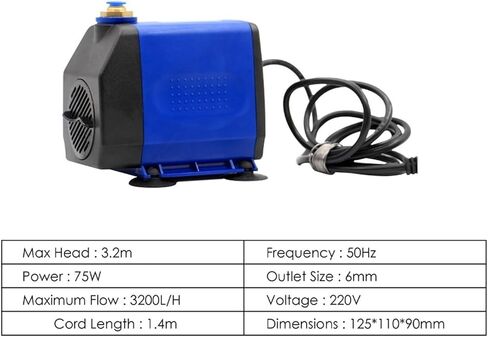

Max Head: 3.2 m;
Power: 75w;
Maximum flow: 3200L / H
Cord Length: 1.4m
Voltage: 220V;
Frequency: 50 HZ
Outlet size: 4 and 6 mm;
Dimensions: 145 * 110 * 90 mm
==========
Drive : MOTOR
Maximum Torque : 0.65N.m
Operating Speed : 24000rpm
Model Number : 1.5KW Metal
spindle Size : 80X226mm
Voltage : 220v
Current : 7A
Power : 1.5kw (1HP=735w)
Cooling : Water cooled
Bearing Type : 2 X 7004 P4 DT and 2X 7002 P4 DT
Collet : ER16
Frequency : 400Hz
Pole : 2
Collet Range : 1-13mm (Including 1/4,1/8,1/2)
Bracket : 80mm
Inverter : 1.5KW FL
Water Pump : 75W
