65x195mm 4 تحمل 220 فولت

KWD 86.500
ماركة
BERWENNY
فئة
ساندرز
وزن
3.1 kg
اللون220 فولت
مقاس65x195mm 4 تحمل
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

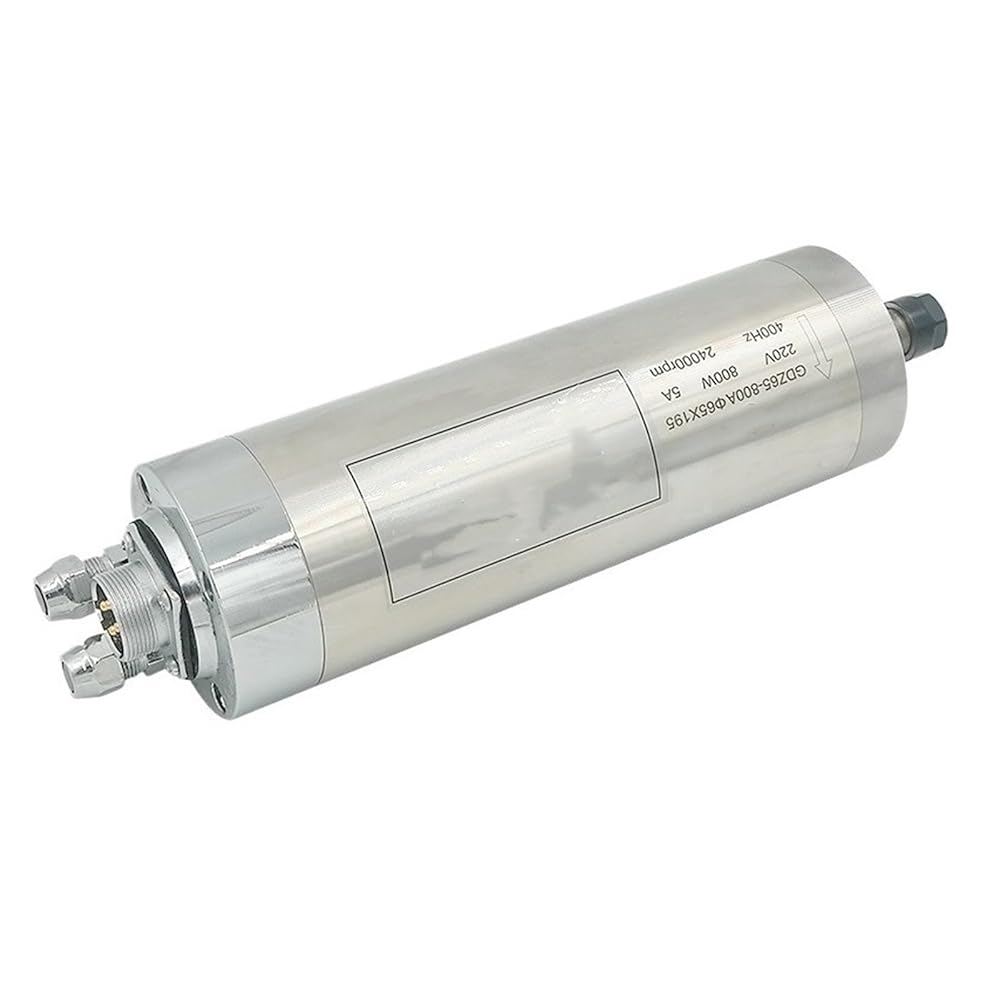

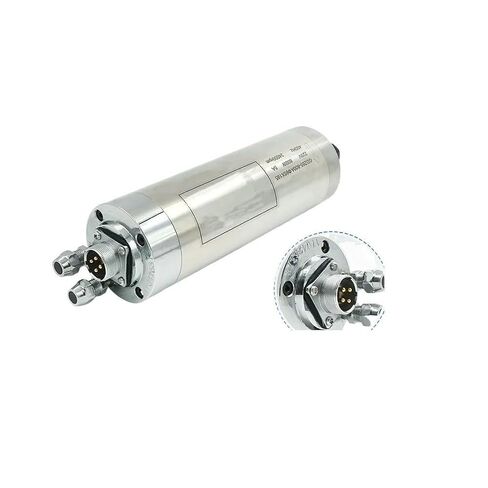

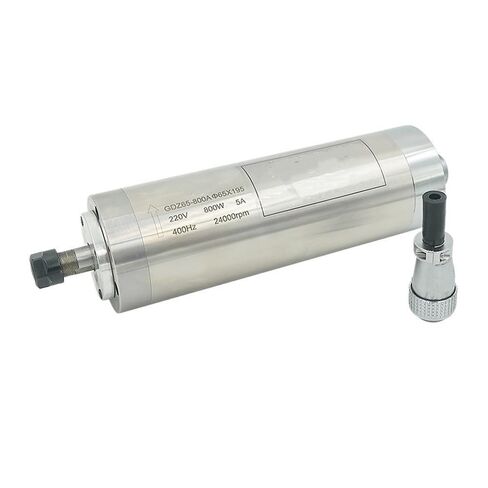

  • Model Number: 800W Water Cooled Spindle Motor
  • Drive: Motor
  • Power: 0.8KW(0.8KW (1HP=735W))
  • Power supply interface:Professional aviation Interface, Interface 1234 marked 123 respectively connected to the inverter output end of the (U, V, W), 4 ground wire this interface must be safe ground.
  • Main application:Wood, Aluminum, Stone, metal, glass, PVC,PCB etc industry

وصف

Specification:

1、Product parameters
Power: 800W 65x158 ER11
Voltage: 220V (must be approved by the inverter output, can not be directly used household electric)
Current: 5A
Frequency: 400Hz
Diameter: 65mm*158mm
Speed: 0-24000 rev / min
Clip diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Cooling: water cooling
Spindle Weight: 2.5kg

2、Product parameters
Power: 800W 65x195 ER11
Voltage: 220V (must be approved by the inverter output, can not be directly used household electric)
Current: 5A
Frequency: 400Hz
Torque: 0.61Nm
Diameter: 65mm*195mm
Speed :0-24000 rev / min
Clip diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Cooling: water cooling
Spindle Weight: 3kg
Bearing: 4pcs
