نقش 3 كيلوواط 220V/380V مجموعة مغزل تبريد مع العاكس 100 مم مشبك المغزل 80W مضخة المياه ER20 لملحقات CNC (380 فولت ، 4 محمل)

KWD 321
ماركة
BERWENNY
فئة
ساندرز
وزن
50 g
اللون380 فولت
مقاس4 تحمل
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

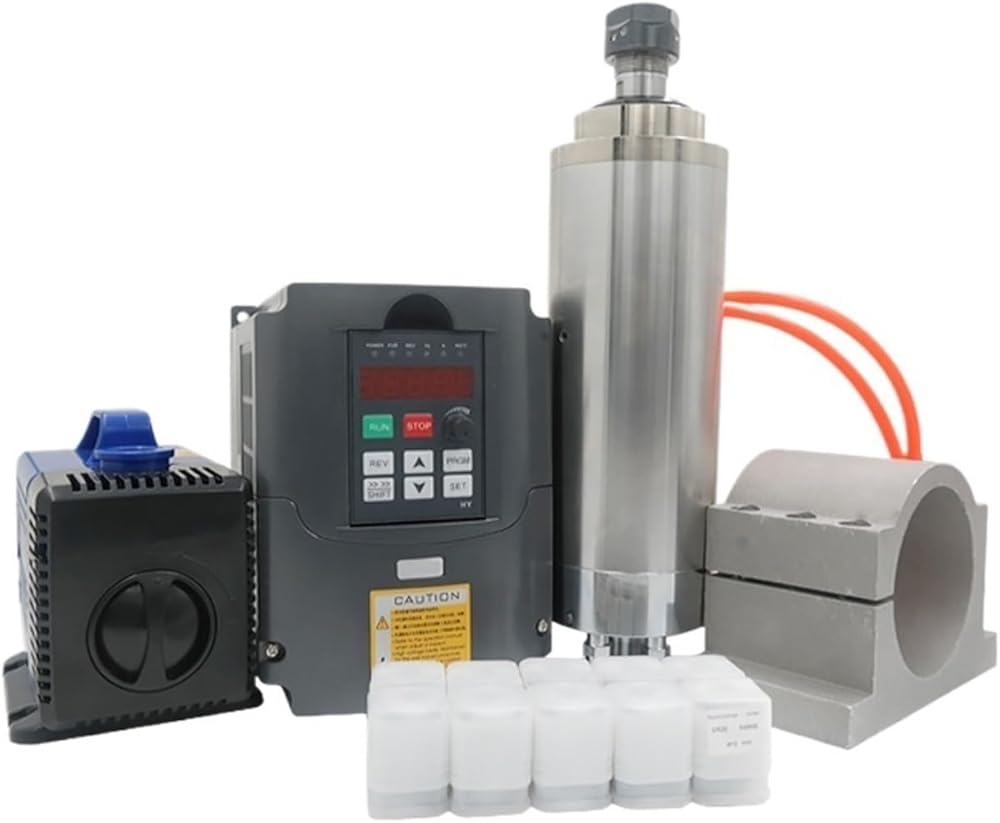

  • CS 3KW Water Cooled Spindle Motor Sets
  • Package Included: 1 x 3KW CNC Water Cooled Spindle
  • 1 x 3KW VFD; Inverter; 1 x 3.5M 80w Water Pump
  • 1 x 5M Water Pipe; 1 x 100mm Spindle Clamp
  • 13 x ER20 Collet (1mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm)

وصف

Fearture:

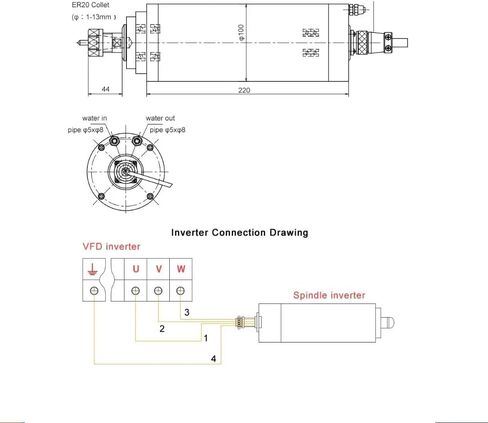

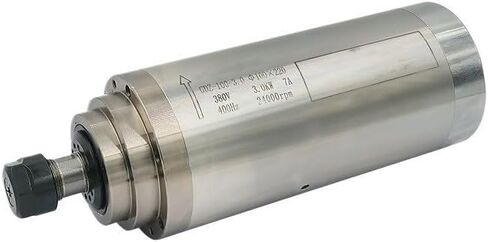

1. Water-cooled spindle motor
Size: 100*220mm(3 bearing),100*250mm(4 bearing)
Power: 3000W
Voltage: 220V
Frequency: 0-400Hz
Speed: 0-24000rpm
Water Cooling ER20 collet
Runout off: less than 0.005mm

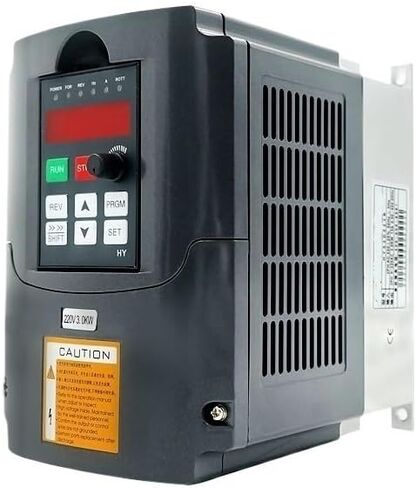

2.Inverter:
Type:3KW/220V
Input:220VAC/50Hz
Output:0-220VAC 3-phase
Frequency:0-400Hz
the parameter of the inverter is :
PD005=400
PD004=400
PD003=400
Note: If there is no problem, please do not change the parameters of the inverter.

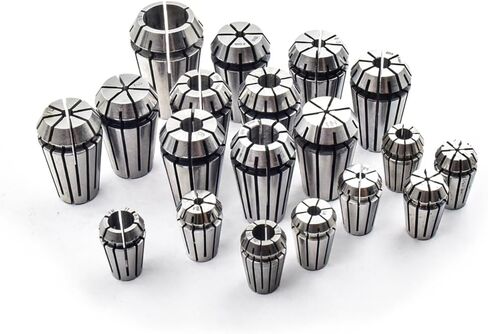

3. 13PCS ER11 Collet :
13 pcs ER20 Spring Collet(1mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm)

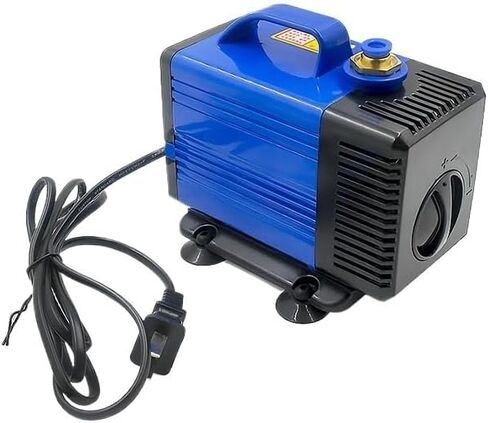

4.Water Pump:
AC Voltage: 220v-240v/50hz
Flow: 3500L / h
Power: 80w
Qmax:3500L/H
Structure:single-stage pump
Pressure :high pressure
Don't operata without water.
Caution:read the instrution carefully before using !
5.5M Water Pipes:
Size:5M 5mm (ID)*8mm (OD)

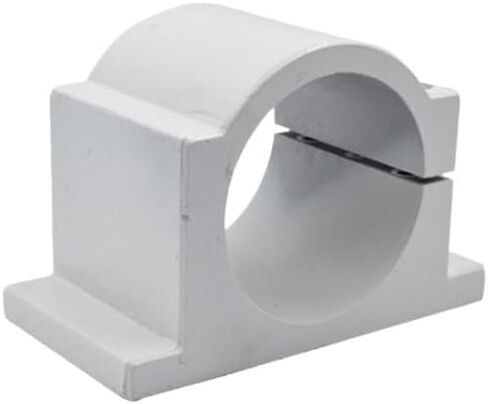

6.Spindle Motor Clamp Mount:
Diameter: 100mm
Material: Aluminum,Surface sandblasted
Application: Wood working industry rourter, such as wood door milling engraving and cutting, furniture producing
