Product parameters

1、Power: 800W 65x158 ER11
Voltage: 220V (must be approved by the inverter output, can not be directly used household electric)
Current: 5A
Frequency: 400Hz
Diameter: 65mm*158mm
Speed: 0-24000 rev / min
Clip diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Cooling: water cooling
Spindle Weight: 2.5kg

2、Power: 800W 65x195 ER11
Voltage: 220V (must be approved by the inverter output, can not be directly used household electric)
Current: 5A
Frequency: 400Hz
Torque: 0.61Nm
Diameter: 65mm*195mm
Speed: 0-24000 rev / min
Clip knife diameter: 7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Cooling: water cooling
Spindle Weight: 3kg
Bearing: 4pcs

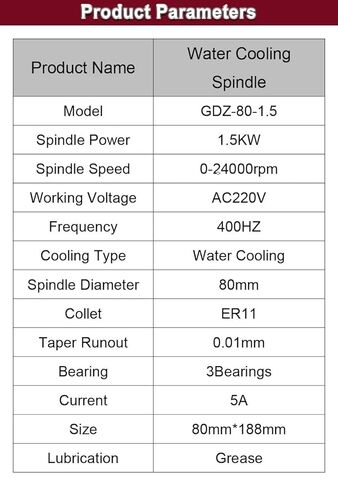

3、Power: 1.5KW 80x188 ER11
Voltage: 220V (must be approved by the inverter output, can not be directly used household electric)
Current: 5A
Frequency: 400Hz
Diameter: 80mm*188mm
Speed :0-24000 rev / min
Nut Model: ER11-A-type
Cooling: water cooling
Spindle Weight: 4kg

4、Power: 1.5KW 80x213 ER16
Voltage: 220V (must be approved by the inverter output, can not be directly used household electric)
Current: 5A
Frequency: 400Hz
Diameter: 80mm*213mm
Speed: 0-24000 rev / min
Nut Model: ER16-A-type
Cooling: water cooling
Spindle Weight: 4.3kg

5、Product parameters
Power: 2.2KW 80X213MM ER20
Voltage: 220V (must be approved by the inverter output, can not be directly used household electric)
Current: 8A
Frequency: 400Hz
Diameter: 80mm*213mm
Speed :0-24000 rev / min
Nut Model: ER20-A-type
Cooling: water cooling
Spindle Weight: 6.0kg

6、Product parameters
Power: 3KW 100X220MM ER20
Voltage: 220V (must be approved by the inverter output, can not be directly used household electric)
Current: 10A
Frequency: 400Hz
Diameter: 100mm*220
