40X-1600X Biological, Upgrade, 4 Replaceable Objective, Trinocular Microscope with LED Light, 5V 1A Power Supply, Wide Field Eyepiece, Stage, Abbe Condenser

KWD 130.500
Brand
FTVOGUE
Category
Microscopes
Weight
4.7 kg
– 1 +

Special Features

  • Interchangeable Wide Field Eyepieces: Equipped with interchangeable wide field eyepieces, including 2 x WF10x and 2 x WF16x, this microscope offers flexibility in viewing capabilities, maximizing your observational experience.
  • Aluminum Alloy Structure: The for XSP500 series biological microscope features a full aluminum alloy body, meticulously crafted for durability and elegance, with all components coated for enhanced performance.
  • High Magnification Power: Featuring a 195 achromatic objective lens with magnification options of 4X, 10X, 40X, and 100X, this microscope achieves magnification up to a remarkable 1600X, allowing for detailed examinations of microscopic specimens.
  • Ergonomic Design: The head is fixed at a 45 degree angle, promoting ergonomic use that enhances comfort. The 360 degree rotation capability supports bright field and dark field works, complemented by LED illumination for high visibility.
  • Accuracy Stage Control: The 2 layer mechanical stage, combined with an for Abbe condenser and adjustable LED brightness, provides accurate focusing control, enabling clear inspections of specimens.

Description

Specification:
Item Type: Industrial Microscope
Material: Aluminum Alloy
Power Supply: DC 5V 1A
Total Magnification: 40X-1600X
Eyepiece:
Wide Field Plane Eyepiece: WF10X, WF16X

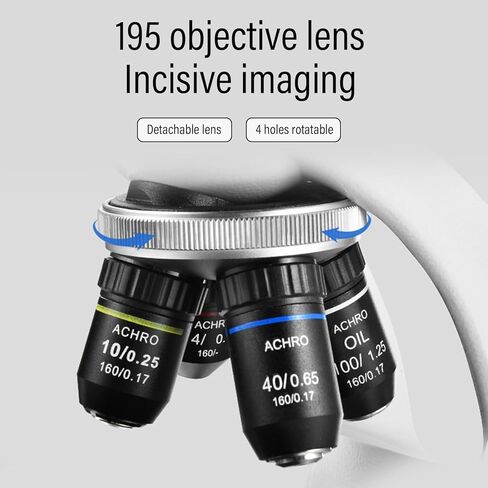

195 Achromatic Objective Lens:
Achromatic 4X/0.1mm, Achromatic 10X/0.25mm, Achromatic 40X/0.65mm (Spring Z), Achromatic 100X/1.25mm (Spring, Oil)
Tube Lens:
Hinged Freely Trinocular Observation Head, Pupil Distance 55-75mm; 45° Inclined, 360° Rotatable

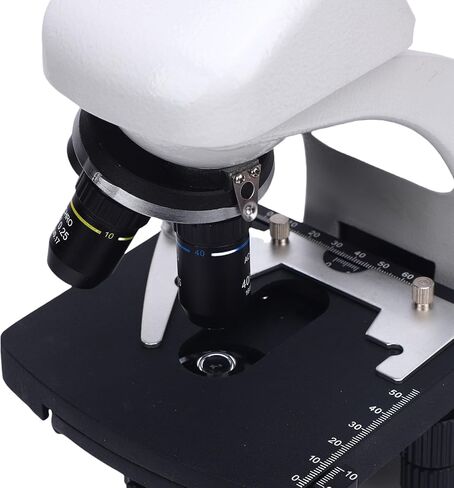

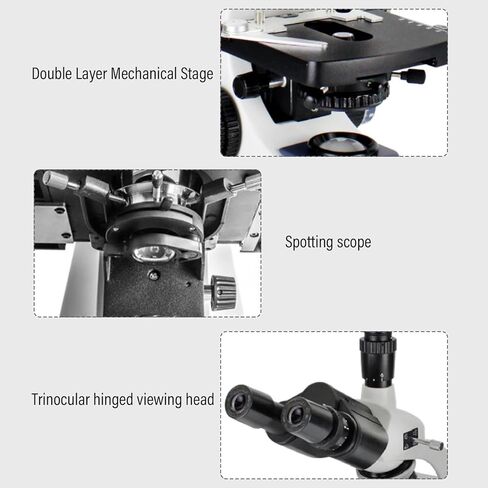

Stage:

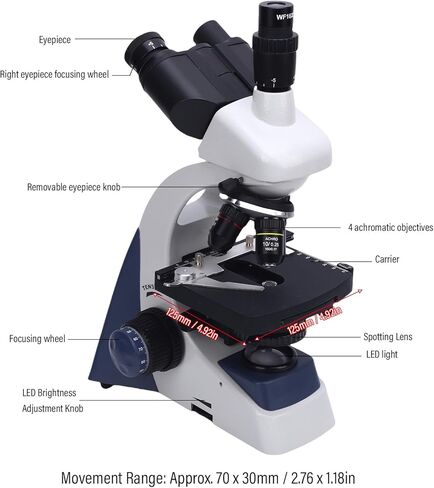

Double Layer Mechanical Stage: Approx. 125 x 125mm / 4.92 x 4.92in
XY Range: Approx. 70 x 30mm / 2.76 x 1.18in
Condenser:
Abbe Condenser: NA1.25; Diameter 2-30mm Variable Aperture and Diameter 32 Filter
Focusing:
Coarse, Fine coaxial focusing mechanism, with limit device, Fine Division Value 4um
Illumination Converter:

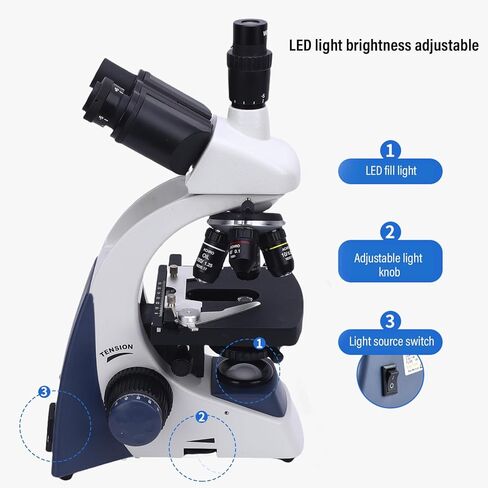

Built in adjustable brightness 3W LED light
Four hole (outward ball outer positioning)

How to Use:
Direct installation and use

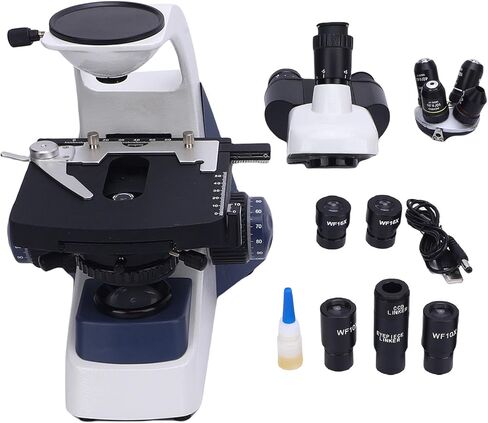

PackageList:
1 x Microscope Body
1 x Achromatic Objective Lens
2 x WF16x Eyepiece
2 x WF10x Eyepiece
1 x Eyepiece Tube
2 x Transfer Interface
1 x User Manual
1 x Cedarwood Oil
1 x DC Cable
