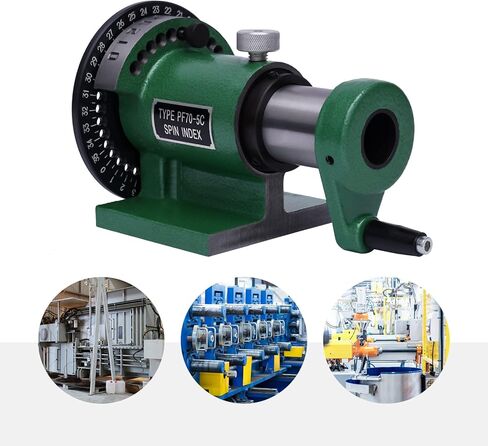

Multifunction Worktable Milling, 1-1/8" Standard 5C Collet Capacity Spin Indexing Fixture, Indexing Milling Machine, Green

KWD 31
Brand
LGXSHOP
Category
Milling Machines
Weight
5.8 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Vertical and Horizontal Design】This spin indexing fixture has both vertical and horizontal functions. When the vertical position of the table is used with the tail section, it is possible to perform circumferential cutting, indexing drilling, milling and more complex work.

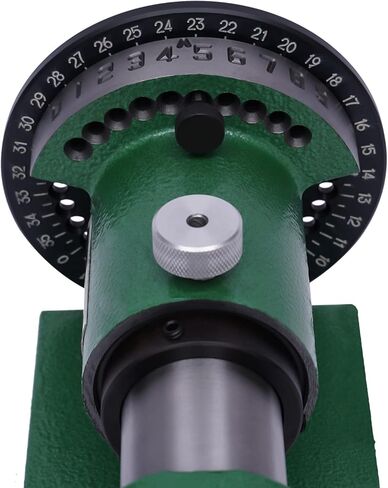

  • 【High Precision】The spin indexing fixture is marked with a 360-degree scale on it, so you can accomplish precise rotation and reset.
  • 【Easy to Use】You just need to operate the control handle and adjust it to the desired position, which makes it easy and convenient to use. This spin indexing fixture is very compact and portable. Therefore, if you want to use it on a different milling tool, you can easily move it to the machine you want.
  • 【Powerful Clamping Force】This spin indexing fixture is controlled by a rotary screw. When you place the item inside and twist the screw tightly, it will hold the item firmly, making it easy for you to manipulate.
  • 【Great Stability】It has a wider base design, so it fits more closely to the countertop. It will give strong support to the long metal rods you want to handle, providing a more stable working condition. And the cast steel spin indexing fixture has good casting properties such as milling vise, vibration damping properties and high heat resistance. Therefore, it is very strong and durable.

Description

Description
This spin indexing fixture is made of high-quality cast steel and is very strong and durable. It will help you to operate precisely and be your right-hand assistant for machining slots for milling cutters, cutting teeth for gears, curved milling slots, or drilling a bolt-hole circle around the circumference of a part.
Specification
Material: Cast Steel
Color: Green
Module: PF70-5C
Indexing Accuracy: ± 4'
Capacity for Standard 5C Collet: 1-1/8"
Height of Center: 70mm/2-3/4"
Spindle Travel: 2-1/16"
Spindle Cone Radial Runout: 0.010mm/0.0004"
The Radial Center of the Spindle is Bouncing (25mm/0.98" From the Spindle End): 0.03mm/0.0012"
The Parallelism of the Center Line of the Spindle to the Bottom Surface: 0.02mm, 0.0008''

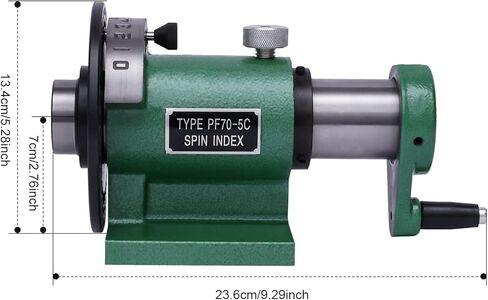

Product Size（LxH）: 9.29x5.28''
Package Size: 8.66x5.51x5.51''
Gross Weight: 5.8kg/12.79lbs

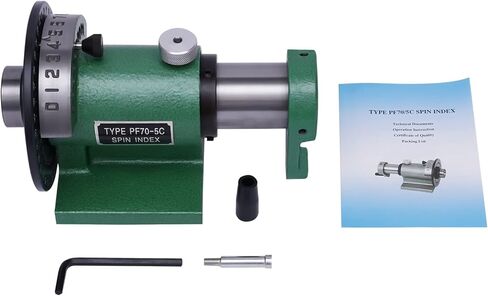

Package Included
1xSpin Indexing Fixture
1xEnglish Manual
All Accessories for Use
