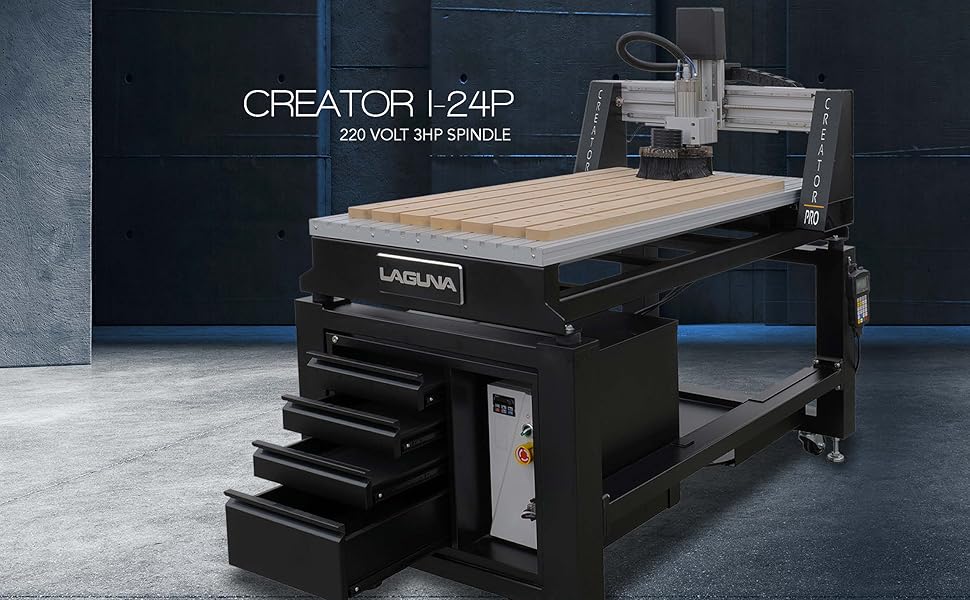

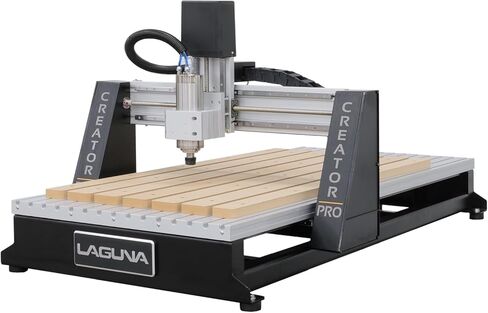

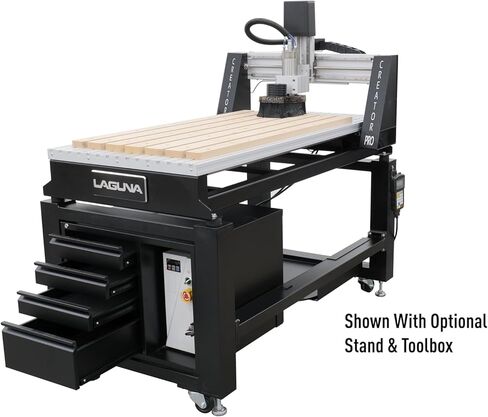

Laguna Desktop CNC Router Creator Pro 2"x4"

KWD 2,872

Brand
Laguna
Category
Milling Machines
Weight
306.2 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
1 +

Special Features

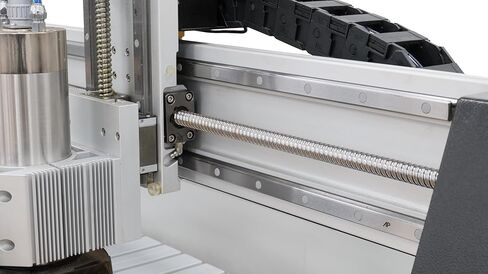

  • 3HP Liquid Cool Spindle/ ER-20 Collet Prismatic Guides In All Axes Precision Ball Screws In All Axes Tool Touch Off Puck Included DSP Controller 4th Axis Ready Optional UCCNC PC Control

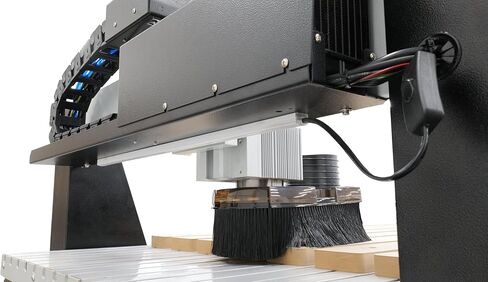

  • Parts Included With Machine: Dust Shoe Hold Down Clamp Set (4 Total Clamps) 1/2″ & 1/4″ Collets Collet Wrenches Integrated MDF Spoil Board
  • X Axis Travel: 24″ Y Axis Travel: 47.63″ Z Axis Travel: 5.9″ C Axis Travel: 360° Table Work Area: 28.4″ x 63″ Spindle Configuration: ER20 Electro Spindle: 2.2KW (3HP)
  • Spindle Speed: 0-24000 RPM Rapid Shuttle Rate: 300 IPM Precision Linear Guideway: X/Y/Z Precision Ball Screw: X/Y/Z Ball Screw Diameter: 16mm Power Requirements: 220V, 50~60Hz, 10A, 1-Phase
  • Working Table: High Rigidity Aluminum Extrusion Positional Accuracy: +/- 0.00393″ Gantry Bridge: High Rigidity Aluminum Extrusion Gantry Supports: Steel Max Gantry Clearance: 6-1/2″
  • Machine Dimensions (L x W x H): 62.99″ x 37.36″ x 30.27″ Shipping Dimensions (L x W x H): 65″ x 39″ x 33″ Machine Weight: 405 lbs. Tool Touch-Off Device: Included Onboard Cooling System: Liquid

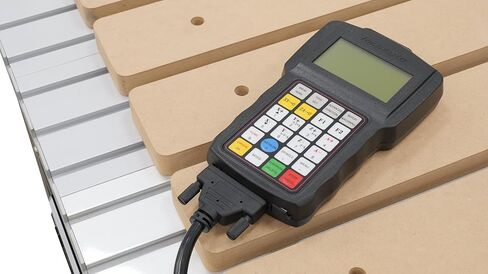

  • Controller: RichAuto B18 DSP 4-Axis Controller CNC Motion Control System USB Port For Easy File Transfer (No PC Required) Applicable Language: Support English / Chinese CSA Approved: Yes

Description

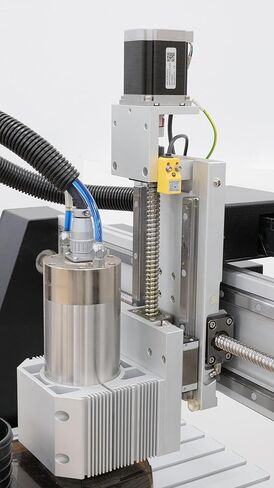

The Laguna Creator Pro offers all of the great features you've come to know and love but adds increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD. The updated Creator Pro offers 4-axis capability, powerful electro-spindle performance, and rotary machining capability in a compact industrial machine. This machine provides a full 6.5″ of gantry clearance and a quiet yet powerful 3HP electro-spindle with an integrated liquid cooling system. The Laguna Creator Pro also offers precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table.
