All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features
With 16 isolated input port, the input interface is simpler, the port are wet and dry contacts, and the wiring is simpler. The dry contact method only needs to connect a physical switch to the ground line externally. All 16 input port have signal indication. When the indicator is low, the indicator is on and the debugging is simple and clear.
USB does not require drivers, all are plug and play, and hot plugging is supported.USB bus uses high-end chip magnetic coupling isolation, truly valuable isolation, different from the optocoupler isolation of the general control card.
Input and output, to achieve ultra-reliability, absolutely guarantee the safety of computer USB. At the same time, it guarantees superior electro magnetic compatibilityimmunity.Single-chip, the system is more streamlined, and the stability of the multi-chip processing is much higher than the average.
Dual-core ultra-high-speed CPU (single core with a maximum frequency of 204MHz), the processing power is extremely redundant. And to ensure the 3K axle linkage 1000KHz pulse output frequency, 4 axle linkage 750KHz pulse output frequency, 6-axle linkage pulse output frequency up to 500KHz, can be connected to servo / step.
Has a maximum of 24 output port (8 channels, RS485 can be expanded), 32 input port(with 16 input, RS485 can expand 16). PWM speed control output port (isolated), PWM frequency can be set, duty cycle 0~1000 is continuously adjustable.
Description
Specification:

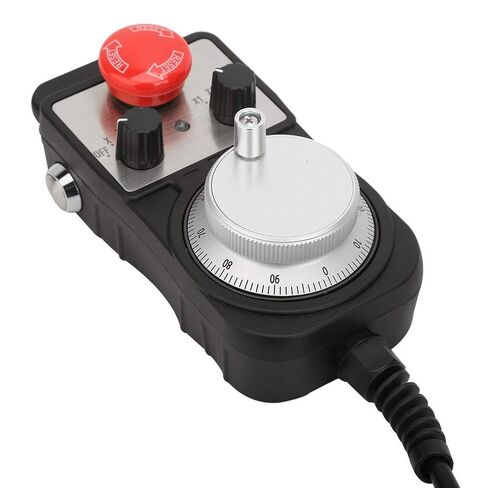

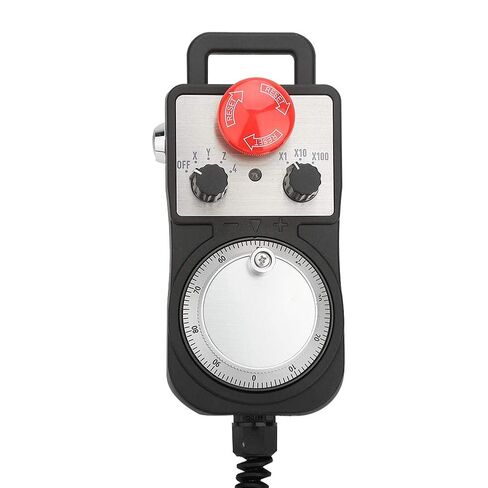

Handwheel Working Voltage:5V
Handwheel Three Output:Voltage, Single-Ended, Differential
Handwheel Pulse Output:100PPR

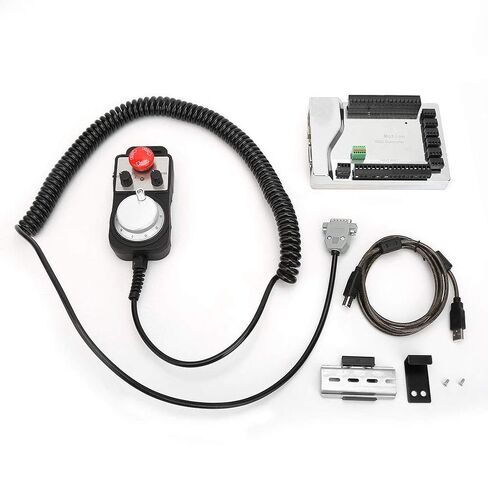

Package List:
1 x Control Board
1 x USB Cord
1 x Fixing Bracket
1 x Handwheel
1 x Hook
