Features

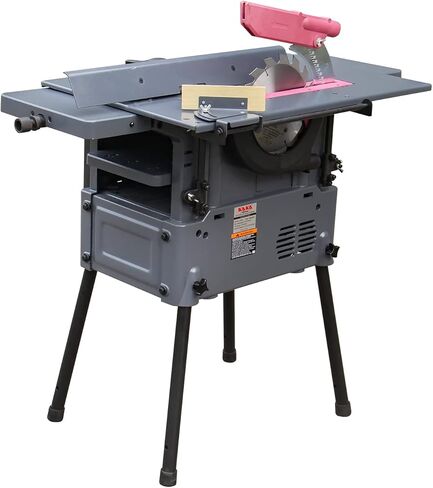

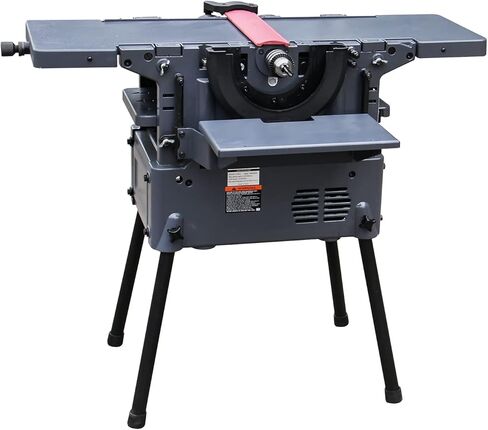

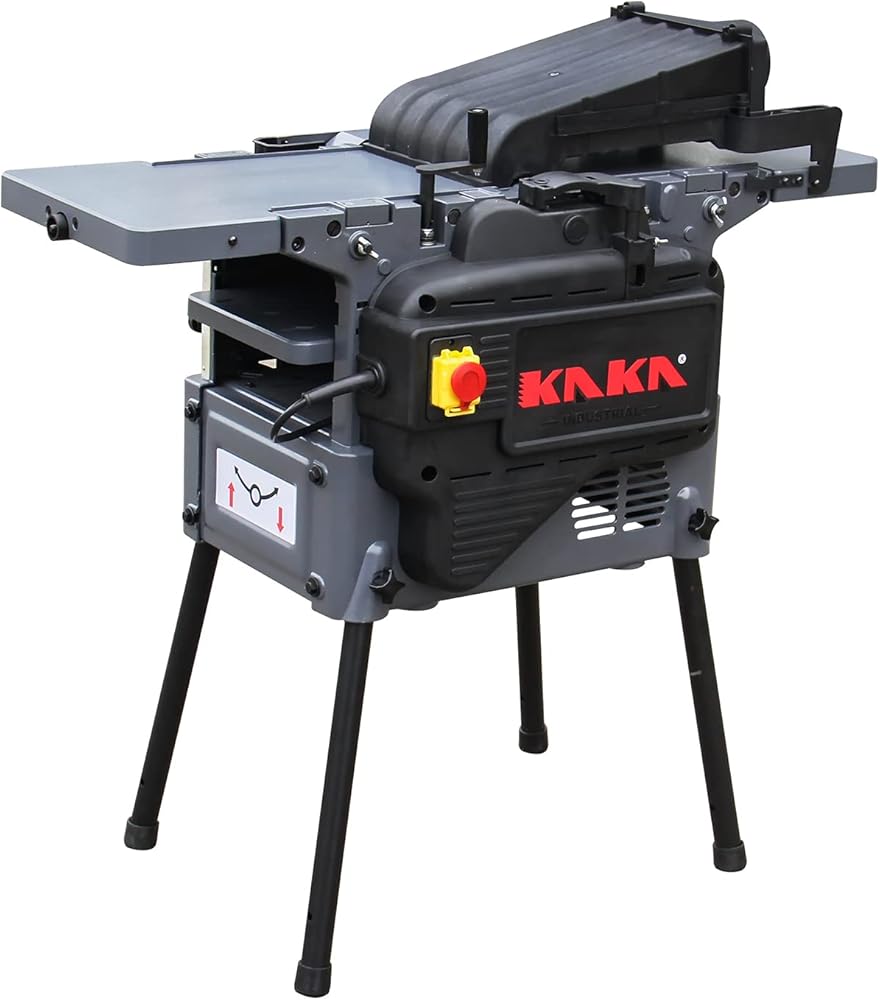

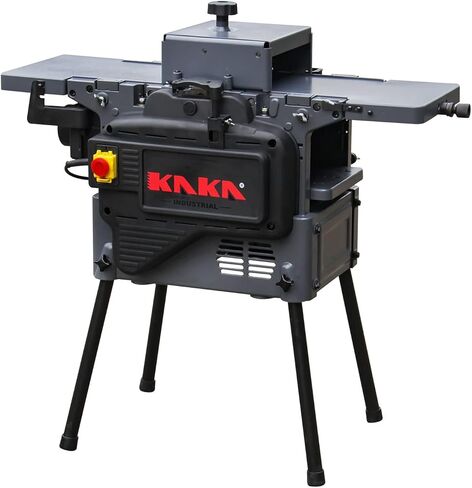

Multifunctional portable woodworking machine WM-3020 is the most functional one
The basic function: thicknessing, sawing, planing, milling and drilling.
This machine does not require special working place as there are supporting legs in the set of shipment

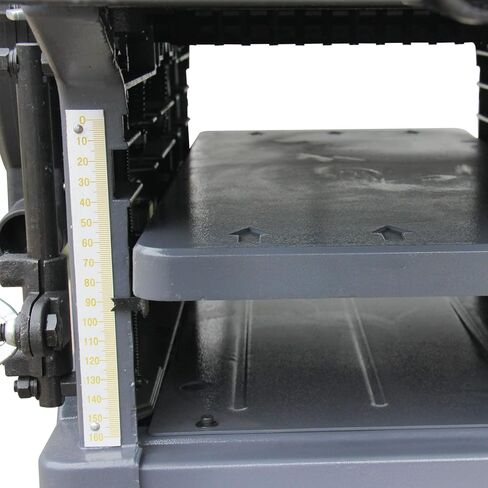

Max. section of working object at thicknessing: 9.8x6.3 inch
Dimension of table at thicknessing (L x W):22.8x9.8 inch

Specification
Model:WM-3020
Max. one-way planing thickness:9.8 inch
One-way planing depth:0-1.37 inch

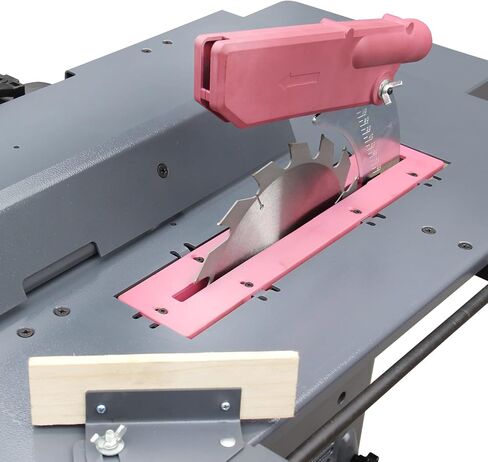

Max. sawing depth:3.35 inch
Max. planing thickness with use of clamping device:9.8 inch
Max. thickness of clamped object:2.36 inch
Range of cutting and planing angles at using devices:0-45 degree
Rated diameter of saw-blade:9.8 inch

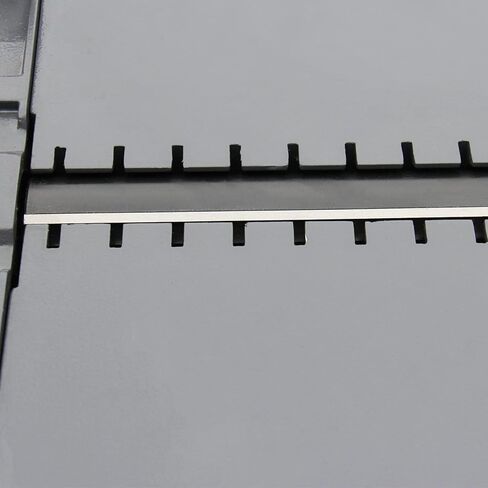

Quantity of knives:2 pcs
Knife length:9.8 inch
Saw table dimensions L x W:29.5x20 inch
Dimensions of the tables (mobile and immobile) at paning L x W:39.3x12.5 inch

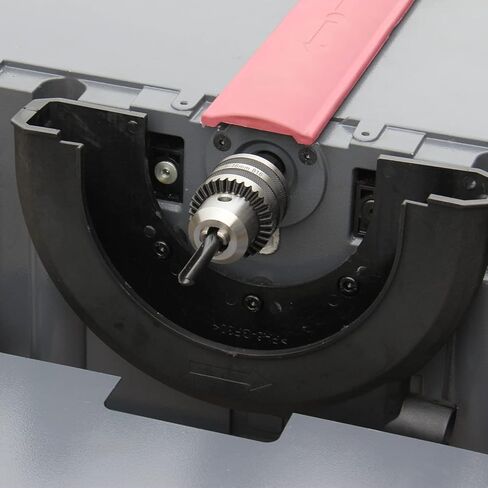

Table dimensions at milling/drilling, LxW:14.5x7.8 inch
Rated idle RPM:5500 revs/min
Rated input power:2.2 kW
Working mode of electric motor: S6-40
Packing size: 41x21x21 inch
N.W./G.W.: 172/181 lbs
