Motors

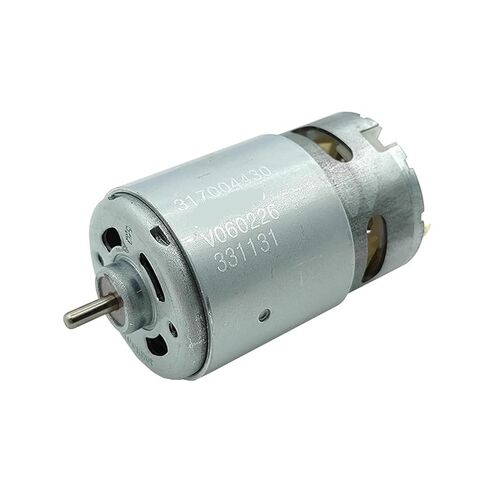

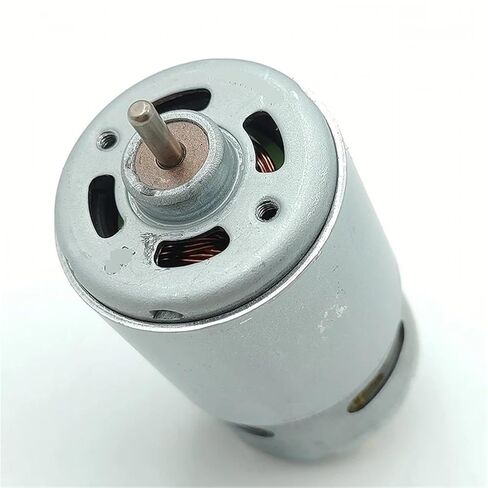

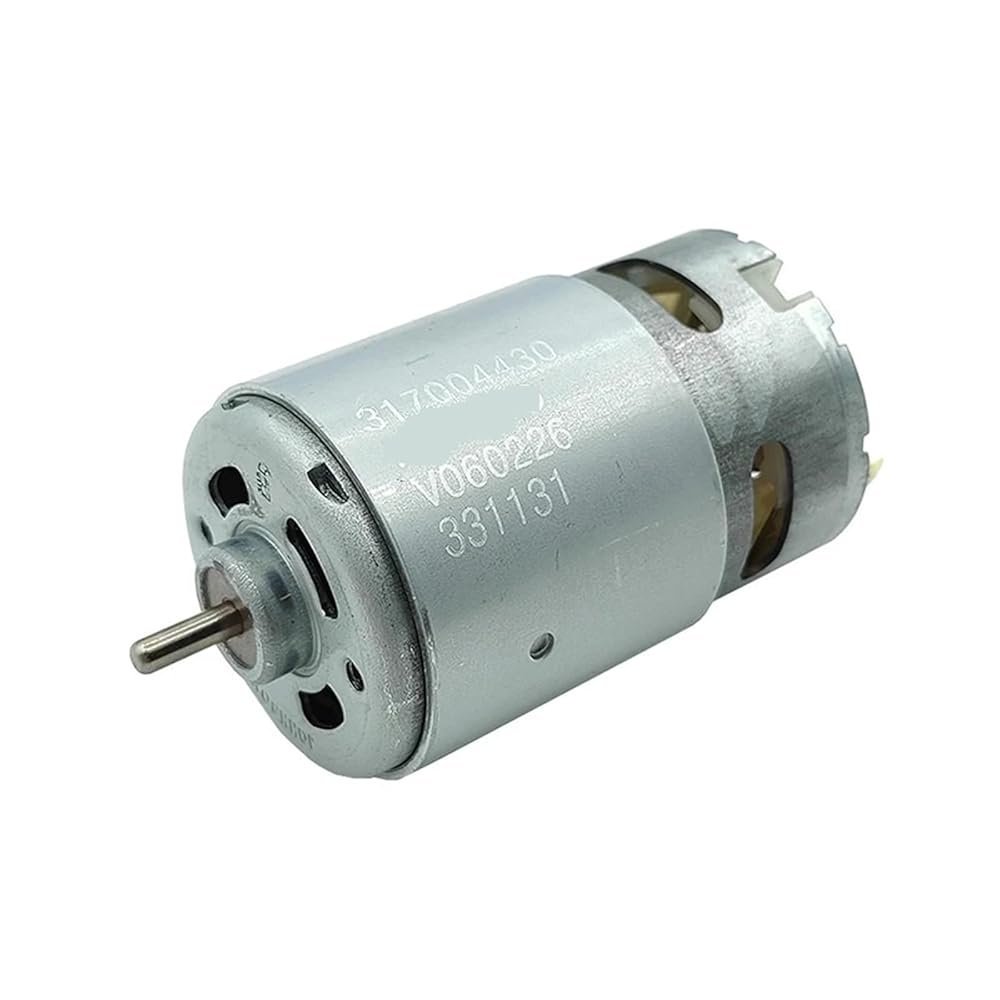

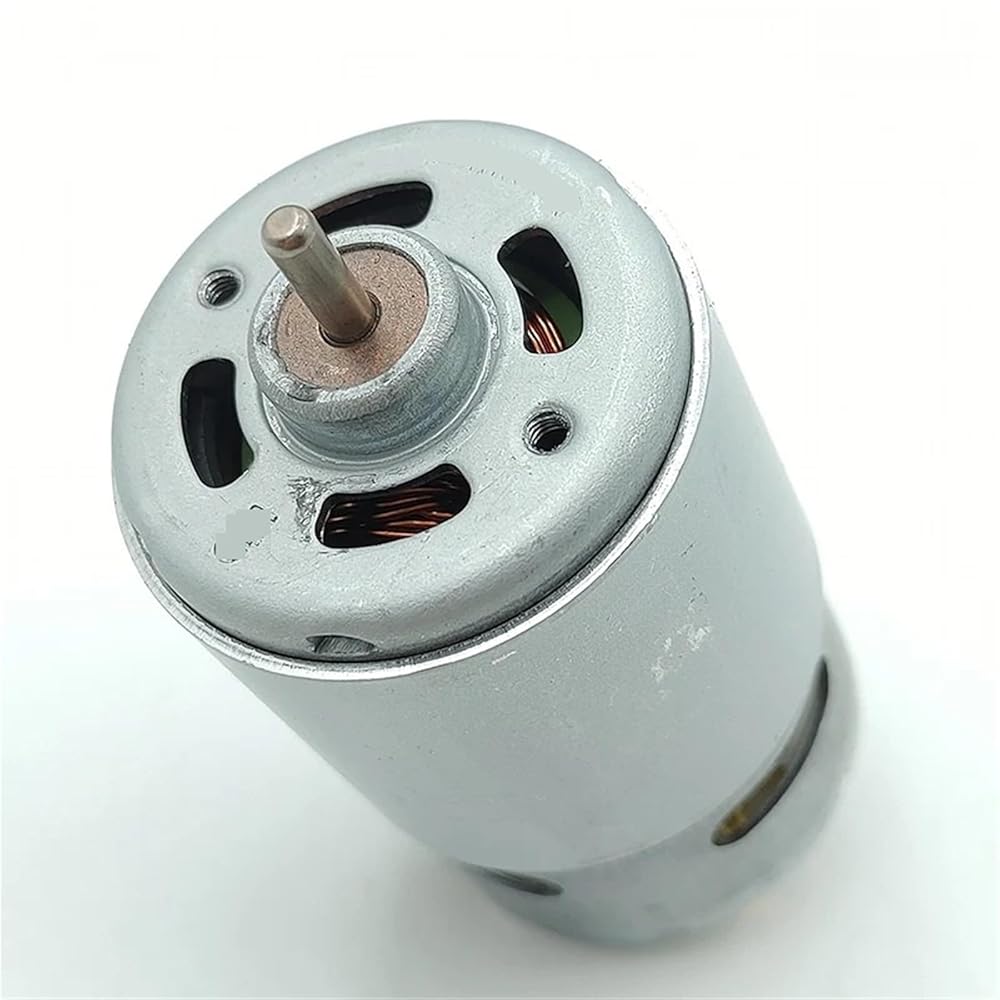

Model number: 317004430

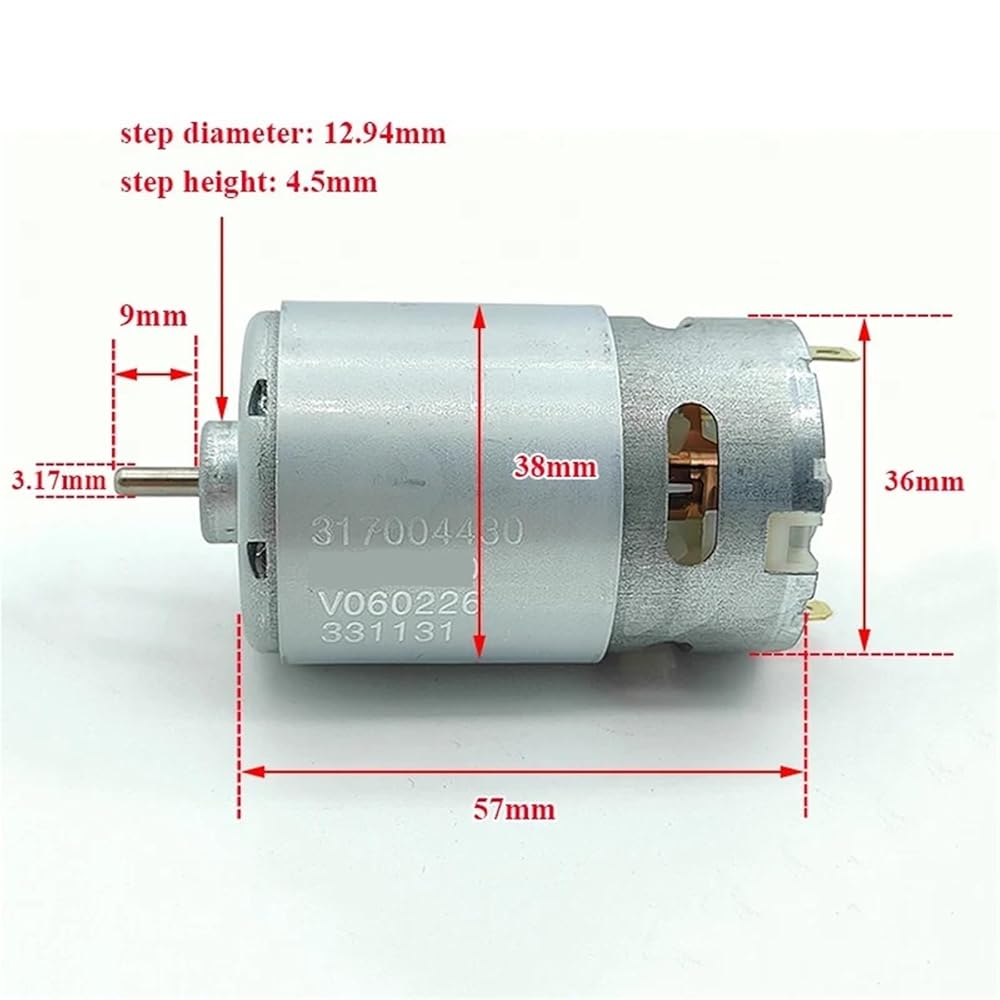

Motor diameter: 36mm (with cover 38mm)
Motor height: 57mm
Output shaft diameter: 3.17mm ; Shaft length: 9mm (not include step height)
Step diameter: 12.94mm ; Step height: 4.5mm
Weight: 236g
Suitable voltage: DC 5.0V-18.0V
Test data:
Voltage:5.0V No-load speed:6300RPM No-load current:0.9A
Voltage:12.0V No-load speed:15000RPM No-load current:1.2A
Voltage:14.4V No-load speed:18500RPM No-load current:1.3A
Voltage:18.0V No-load speed:23000RPM No-load current:1.5A
Package List:
Motor x 1PCS
Usage : Home Appliance
Model Number : Mini RS-550 Motor
Construction : Permanent Magnet
Type :Motor
Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model number : 317004430 HC683LG
Motor diameter : 36mm (with cover 38mm)
Motor height : 57mm
Output shaft diameter : 3.17mm
Suitable voltage : DC 5V-18V
Speed range : 6300RPM-23000RPM
Weight : 236g
