VC9101 5MP Modular Split-type Surveillance System, Supports 1 Discreet Camera Unit, H.265, 30fps, 5MP Fisheye or 4MP Pinhole Options, AI Face Detection, 3DNR, SNV, WDR Pro 120dB, Smart Stream III, PoE
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features

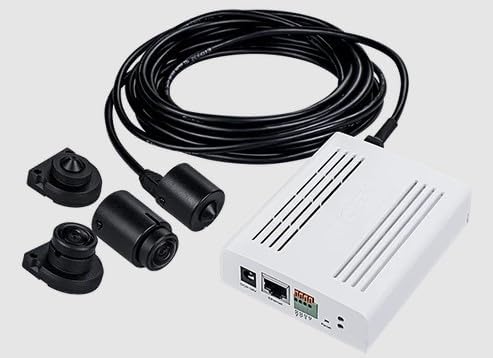

Discreet Split-Type Design: Modular system with separate video core and ultra-compact camera unit connected via a 5m cable for inconspicuous installation in architectural or covert settings.
5MP & 4MP WDR Camera Options: Supports one camera unit from four options, including 4MP WDR Pinhole (CU9171-H/HF) and 5MP WDR Fisheye (CU9183-H/HF) for 180° panoramic coverage or ultra-discreet views.
AI-Powered Face Detection: Integrated CNN hardware accelerator enables deep learning-based face detection and intelligent motion analysis with increased precision and performance.
WDR Pro (120 dB): Wide Dynamic Range ensures superior image quality in scenes with both bright and dark areas, ideal for high-contrast environments.
3D Noise Reduction (3DNR): Enhances low-light performance and image clarity by reducing sensor noise in real-time video streams.
Smart Stream III + H.265 Compression: Advanced compression technology reduces bandwidth and storage requirements while maintaining high visual quality.
Seamless Onboard Storage: Supports MicroSD/SDHC/SDXC cards (up to 1TB) and network-attached storage (NAS) for uninterrupted video recording during network downtime.
Two-Way Audio Support: Full-duplex audio capability via external microphone and line output interfaces for interactive communication.
Flexible Corridor View: Video orientation rotation options allow optimized surveillance in narrow vertical spaces such as hallways and aisles.
Trend Micro IoT Security: Built-in cybersecurity defense with secure boot, signed firmware, and protection against brute force attacks and other cyber threats.
Description
The VC9101 is a next-generation modular split-type surveillance system engineered for professional applications requiring flexible installation and high-performance AI-powered video analytics. Designed to blend seamlessly into discreet or space-restricted environments, this system separates the compact camera unit from the powerful video core, allowing for hidden installations in locations such as ATMs, elevators, banks, offices, and retail spaces. The VC9101 supports one camera unit from a selection of four models—two 4MP pinhole variants and two 5MP fisheye variants—connected via a 5-meter cable for extended reach and inconspicuous mounting. At its core, the VC9101 leverages a robust multimedia SoC processor and a CNN (Convolutional Neural Network) hardware accelerator to support deep learning VCA, including face detection and intelligent motion detection. The system delivers full 5MP resolution at 30 fps, H.265 and H.264 encoding, Smart Stream III technology, and triple-stream video for optimal bandwidth efficiency. Integrated WDR Pro (120 dB), 3DNR, and SNV (Superior Night Visibility) ensure excellent image performance in challenging lighting conditions. Additional features include full-duplex two-way audio, seamless local and NAS recording, advanced cybersecurity from Trend Micro, and modular expandability for easy maintenance and upgrade.
