Mini Metal Drilling Lathe Machine 110V 180W Milling Machine CT125 Multi-Function Micro DIY Drilling and Milling Lathe Machine Power Milling Machines w/Three-jaw Chuck For Workshops Worktable

KWD 385.500
Brand
EDUJUAN
Category
Milling Machines
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Multi Functional -- This is a 3-in-1 micro multifunctional drilling and milling lathe, equipped with a 180W, high-power all copper asynchronous motor, with strong power and stable operation. It can be used for various rotating parts' outer circle, inner hole, end face, taper, and metric and inch thread processing.
  • High Precision -- The machine adopts an electronic control panel, which ensures extremely high accuracy. You can adjust various functions as needed to achieve the best drilling and milling effect. And it's equipped with high-performance and high-precision spindles, precision machining can be achieved.
  • Durable -- The body is made of cast iron, which has good impact resistance and oxidation resistance, and is not prone to oxygen aging and rusting. The gears are made of high hardness metal, which is wear-resistant, smooth, and not easy to get stuck.
  • Widely Used -- This metal drilling lathe machine can process various non-ferrous metals such as titanium, stainless steel, steel, iron, aluminum, copper, and soft materials such as wood and nylon. It's suitable for home, studios, schools, operation rooms, and various small maintenance workshops.
  • Easy to Use -- This product is equipped with 3-jaw chucks and drill bits and other accessories, allowing you to install and use the product upon receiving it. The operation panel is also extremely clear, making your operation easier. Also, the machine is designed with multiple protection functions to ensure your safe use.

Description

Product Description

Specification
Power:180W
Voltage:110V

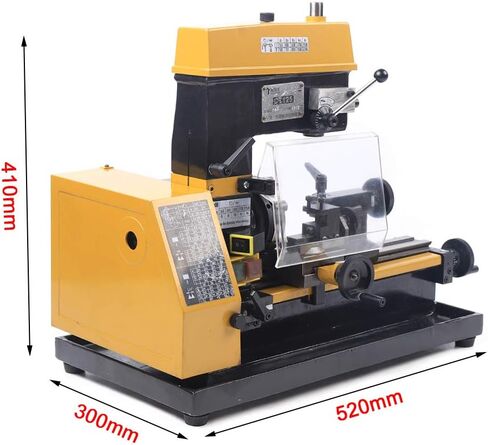

Size: 52*30*41cm
Wight: 22kg
Package size: 55*30*48cm

Function
1.Turning
Max.workpiece rotation diameter: 125mm
Max.workpiece length: 180mm
Max.workpiece rotation diameter on the tool rest: 60mm
Spindle through hole diameter: 9mm
Spindle taper hole: MT.1
Number of metric threads processed: 8
Machining metric thread pitch range: 0.4-1.5mm
Number of inch threads processed: 8
Machining Inch thread pitch range: 0.0028-0.00551 /n
Longitudinal feed series: 2
Longitudinal feed of spindle per rotary tool holder: 0.07-0.14mm
Tailstock sleeve stroke: 18mm
Taper hole of tailstock sleeve: MT.1
Spindle speed range and series: 560-2500r/min

2. Drilling & Milling
Ma.hole diameter: 6mm
Distance from spindle end face to working surface: 120-180mm
Distance from spindle center line to column surface: 125mm
Rotary Angle of drilling and milling head box around column: 360°
Spindle speed range and series: 500-2500r/min
Vertical lifting stroke of drilling and milling head box: 60mm
Width of working face: 60mm
Working surface length: 85mm
Width of T-groove of working table: 8mm
Spindle sleeve movement: 40mm

Package Included
1 * Drilling Lathe Machine

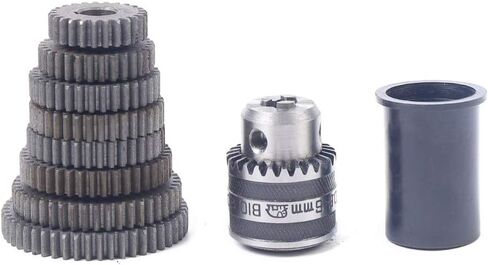

Other Accessories
