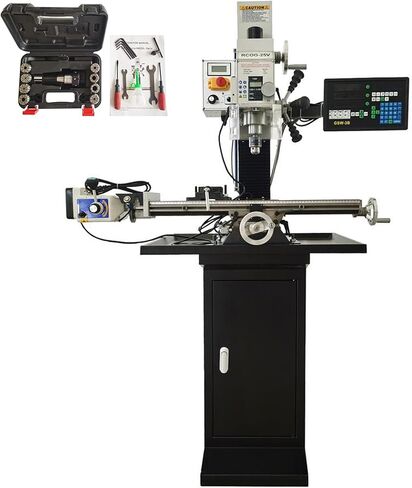

RCOG-25V Milling and Drilling Machine Brushless Precision Milling and Drilling Machine Mini R8 Micro Drilling and Milling Machine with Axis X Power Feed & Three-Axis Grating Ruler, AC110V

KWD 1,102
Brand
Yokoma
Category
Milling Machines
Weight
133.5 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Main Parameters: Voltage: AC110V / 60Hz, X axis stroke: 18.9" (480mm), Y axis stroke: 6.9" (175mm), Z axis stroke: 11" (280mm), Max. drilling diameter: 0.9" (25mm), Max. vertical milling capacity: 0.79" (20mm), Spindle taper: R8, Spindle stroke: 2" (52mm)
  • ±90° Spindle Multi-Angle Tilt: With non-welded fixed way, the mini drilling and milling machine head with R8 taper can tilt left and right by 90° to meet special Angle needs of the production of the workpiece, more flexible to use (With no other limitations, the machine can actually rotate 360°)

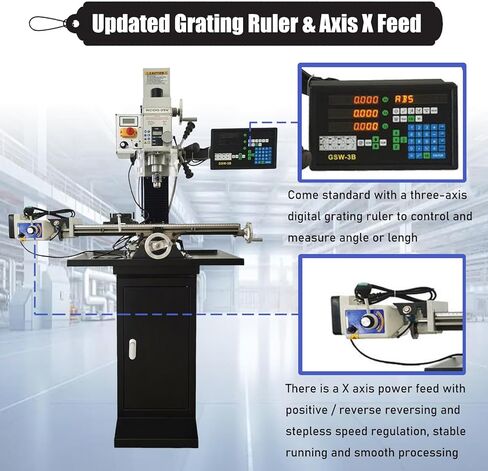

  • Standard with Grating Ruler: Equipped with a three-axis digital grating ruler, the RCOG-25V mlling and drilling machine can adjust Angle or length, up to 0.005mm accuracy also makes processing effect much more greater
  • 20-2250rpm Stepless Speed: Designed with burshless motor, the spindle speed has a wide range from 20 to 2250rpm, also equipped with axis X power feed, both positive, reverse reversing and stepless speed adjustment can be operated smoothly
  • Multifunctional Process: With high-precision milling and drilling functions, the RCOG-25V Model Machine can handle precision parts processing, sample processing and model making, suitable for most materials such as metal, wood, plastic, Buddha beads and so on

Description

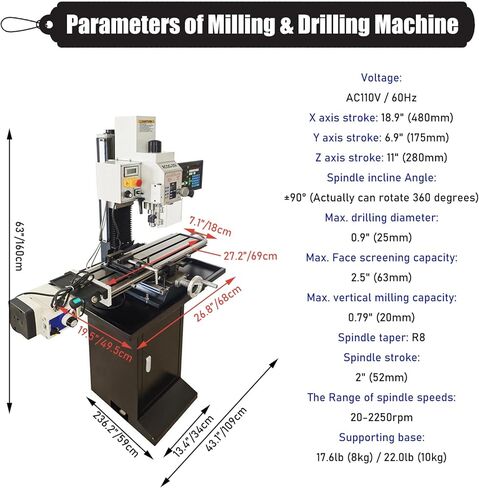

Product Parameters
Model: RCOG-25V
Voltage: AC110V / 60Hz
Motor power: 1100W brushless motor
X axis stroke: 18.9" (480mm)
Y axis stroke: 6.9" (175mm)
Z axis stroke: 11" (280mm)
Spindle incline Angle: ±90° (Actually can rotate 360 degrees)
Max. drilling diameter: 0.9" (25mm)
Max. Face screening capacity: 2.5" (63mm)
Max. vertical milling capacity: 0.79" (20mm)
Distance from spindle to table: 13.8" (350mm)
Spindle taper: R8
Spindle stroke: 2" (52mm)
The Range of spindle speeds: 20-2250rpm
Table size: 27.2*7.1" (690×180mm)
T groove width: 0.47" (12mm)
Net weight / Gross weight:
Milling machine: 276.7lb (125.5kg) / 342.8lb (155.5kg)
Supporting base: 17.6lb (8kg) / 22.0lb (10kg)
Axis X power feed voltage: AC110V
Axis X power feed Power: 95W
Axis X power feed speed range: 0-200rpm
Grating ruler voltage: AC110V-220V 50/60Hz
Grating ruler power: 10W
Precision of grating ruler: 0.005mm
