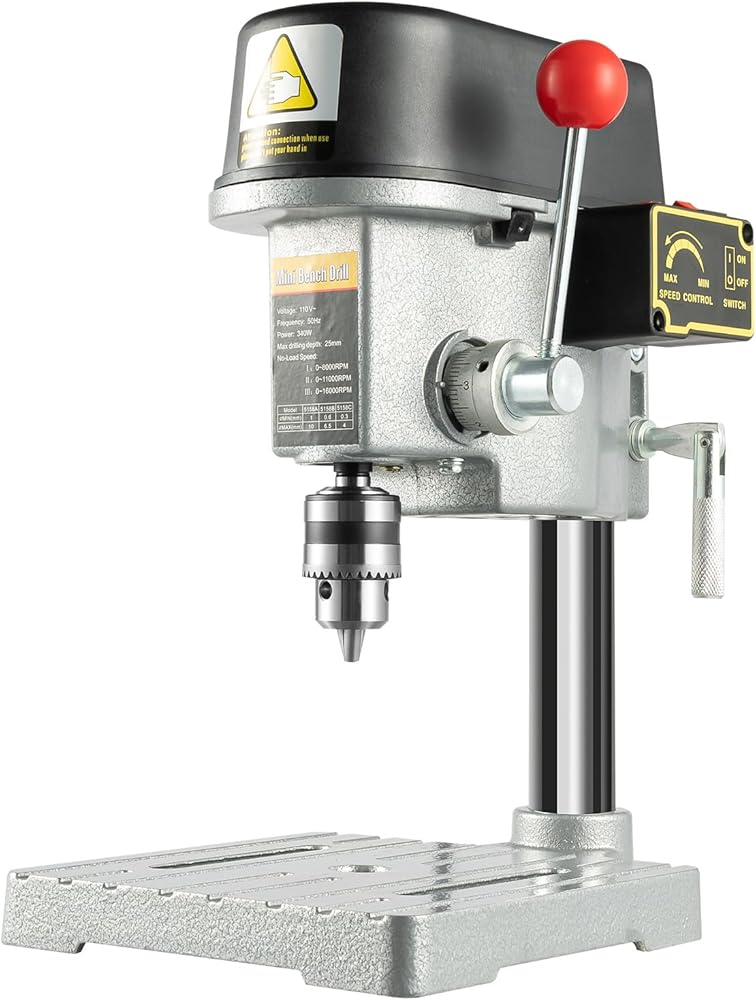

Mini Bench Drill Press Stand, 340W Portable Drill Workbench, Light-Duty DIY Metal Drilling Hobby Tool Expanding Drilling Machine Chuck 1-10mm

KWD 29
Brand
DONNGYZ
Category
Drill presses
Weight
5.6 kg
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

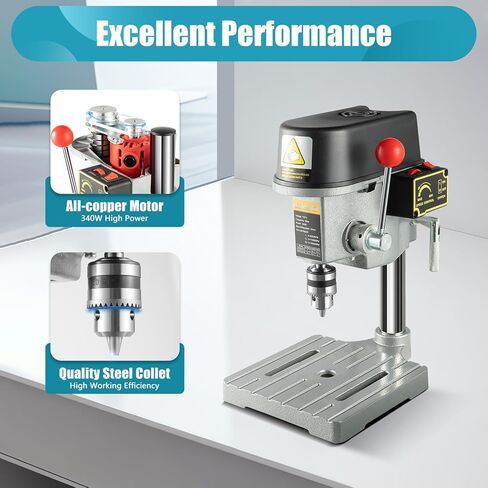

  • 【High Quality】The 340W all-copper motor provides stable and high power output, and when used with the high-quality steel collet, it can effectively improve your work efficiency and save time. Suitable for drilling, expanding, and reaming operations on iron, woods and other materials.

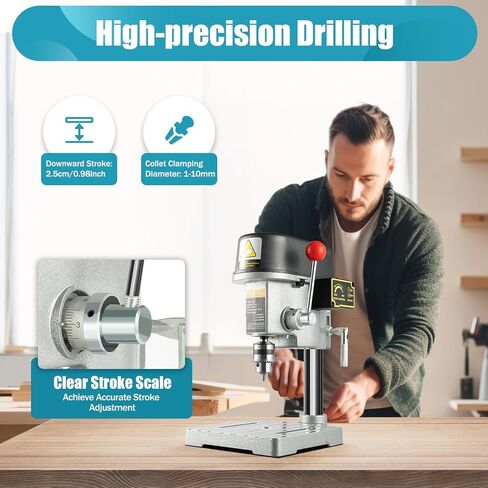

  • 【Drilling Parameters】Clamping diameter is 1-10mm, the spindle is about 155mm away from the drill bit center, max spindle travel is 25mm. Non-load speed in 3 levels, 0-9650r/min, 0-12150r/min, and 0-14100r/min. With a 3.94-inch handle makes it easy to operate.
  • 【Stable Operation】The 1.18-inch large column and 0.98-inch thick base make the whole body not easy to shake, which can effectively enhance stability during operation. The belt cover and all-copper motor minimize noise provide you with a comfortable working environment.

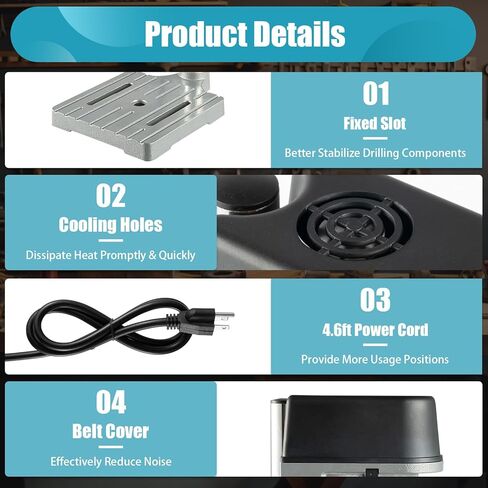

  • 【Fixing Slot】The attachment fixing slots on the 6.69" x 6.69" base can help stabilize the drilling components and ensure the smooth progress of drilling work. A mini bench drill saving you a lot of space in your shop and making a great addition to your workbench.
  • 【Wide Applications】It is mainly suitable for small craft workshops for drilling and machining iron (≤6 mm), wood (≤16 mm), acrylic boards, plastic products, and so on. It can also be used for teaching experiments, home DIY, or furniture installation.

Description

Application
It is mainly suitable for small craft workshops for drilling and machining iron (≤6 mm), wood (≤16 mm), acrylic boards, plastic products, and so on. It can also be used for teaching experiments, home DIY, or furniture installation.

Specification
Material: Cast Iron, Steel, Plastic
Process: Spray Molding
Voltage: AC 110V
Rated Input Power: 340W
Rated Frequency: 50/60Hz
No-load Speed(RPM): I:0 -9650r/min; II:0 -12150r/min; III:0 -14100r/min
Spindle Travel: 25mm/0.98inch
Clamping Diameter: 1-10mm

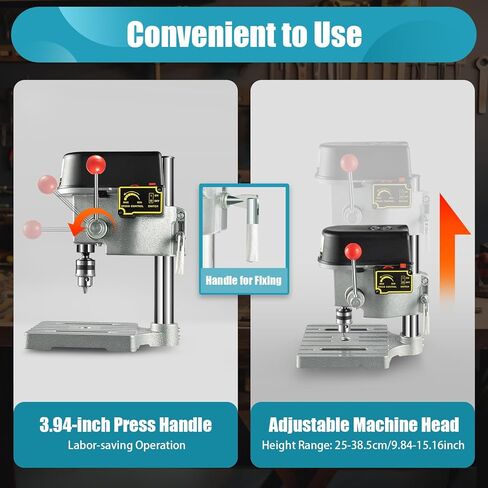

Adjustable Height Range: 25-38.5cm/9.84-15.16inch
Handle Length: 10cm/3.94inch
Base Size: 24*17cm/9.45*6.7inch
Column Diameter: 3cm/1.18inch
Base Thickness: 2.5cm/0.98inch
Power Cord Length: 1.4m/4.6ft
Package Size: 31.5*26.5*24cm/12.4*10.43*9.45inch
Net Weight: 5.05kg/11.13lbs
Gross Weight: 5.9kg/13lbs

Package Included
1*Benchtop Drill Press
1*T-handle
1*Round Head Handle
2*Allen Keys
2*Carbon Brushes
1*Belt
1*English Manual
