Maintenance and maintenance (please do not disassemble the permanent magnet chuck by yourself)
1. The work surface of the suction cup should be kept clean. After use, the magnetic circuit should be disconnected and coated with anti-rust oil
2 It is strictly forbidden to pile up debris on the work surface, so as not to affect the flatness
3. During the handling process, prevent the work surface from knocking and knocking, so as not to affect the performance
4. In the process of long-term use, if the roughness, flatness or parallelism of the work surface is found to be poor after the workpiece is installed, the processing conditions of the machine tool can be used to repair

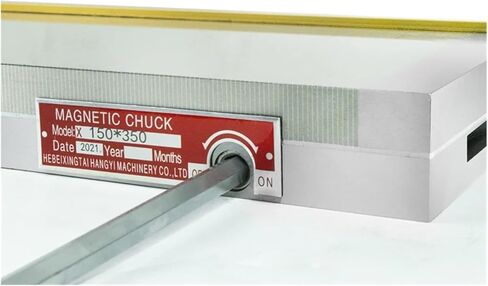

5. In the process of use, when the handle is found to be too strong or the holding force is obviously insufficient when the hex wrench is pulling the eccentric shaft, you should contact the manufacturer in time for repair
6. The operating environment temperature is -40C-50 C°, it is strictly forbidden to knock to prevent the magnetic force from being reduced

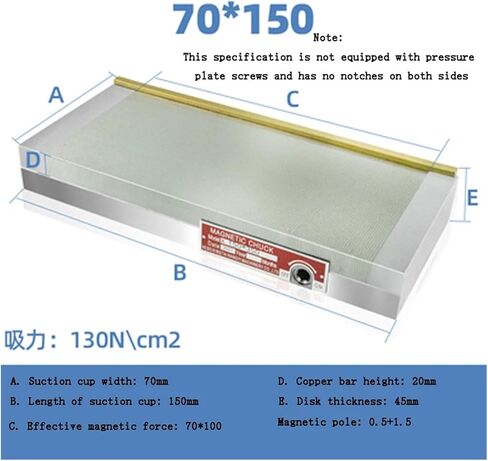

Product parameter
Suction power: 130N\cm²
A. Suction cup width: 70mm
B. Suction cup length: 150mm
C. Effective magnetic force: 70*100
D. Copper bar height: 20mm
E. Disk thickness: 45mm

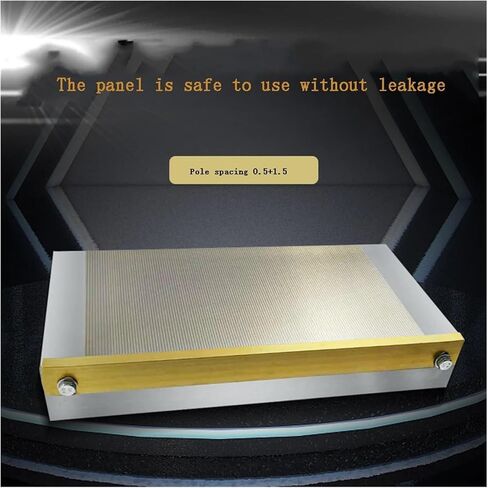

Magnetic pole: 0.5+1.5
