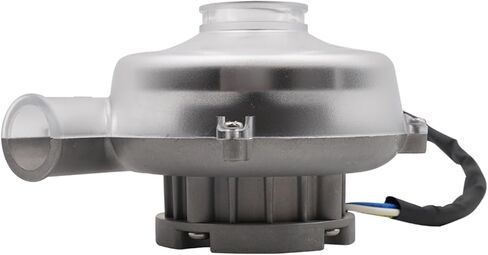

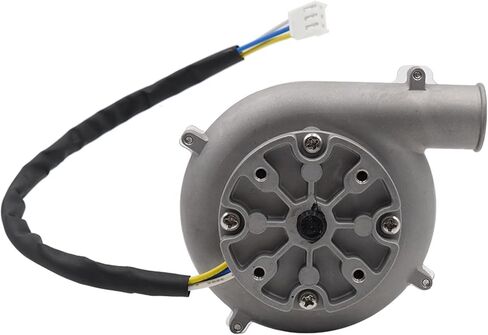

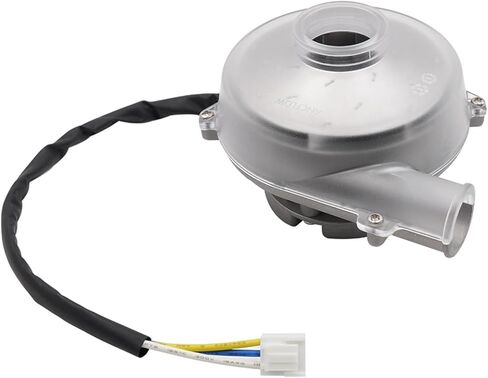

Product specification: C9002U-24/48V-12.0kPa-1190LPM
Maximum speed: 35,400 rpm
Maximum air volume: 11,90LPM(71.4m³/h)
Motor driver: AC06
Maximum outlet wind speed: 87.4m/s
Maximum static pressure: 12.0 k
PaService life: 20,000h
Rated speed: 29,300 rpm
Voltage range: 24V:14-28V 48V:6-60V
Rated air volume: 500LPM (30.0m³/h)
Rated static pressure: 8.0Kpa
Peak power: 190W
Rated power: 145W
Working temperature: -20℃~+50℃
Humidity range: ≤85%RH
Harness length: 300mmProduct volume(mm): 102.85(L)*95.35(W)*69.37(H)mm
Bearing: Ball Bearing(NMB)
Shell material: PC+ Aluminum AlloyImpeller material: Aluminum Alloy
