Description

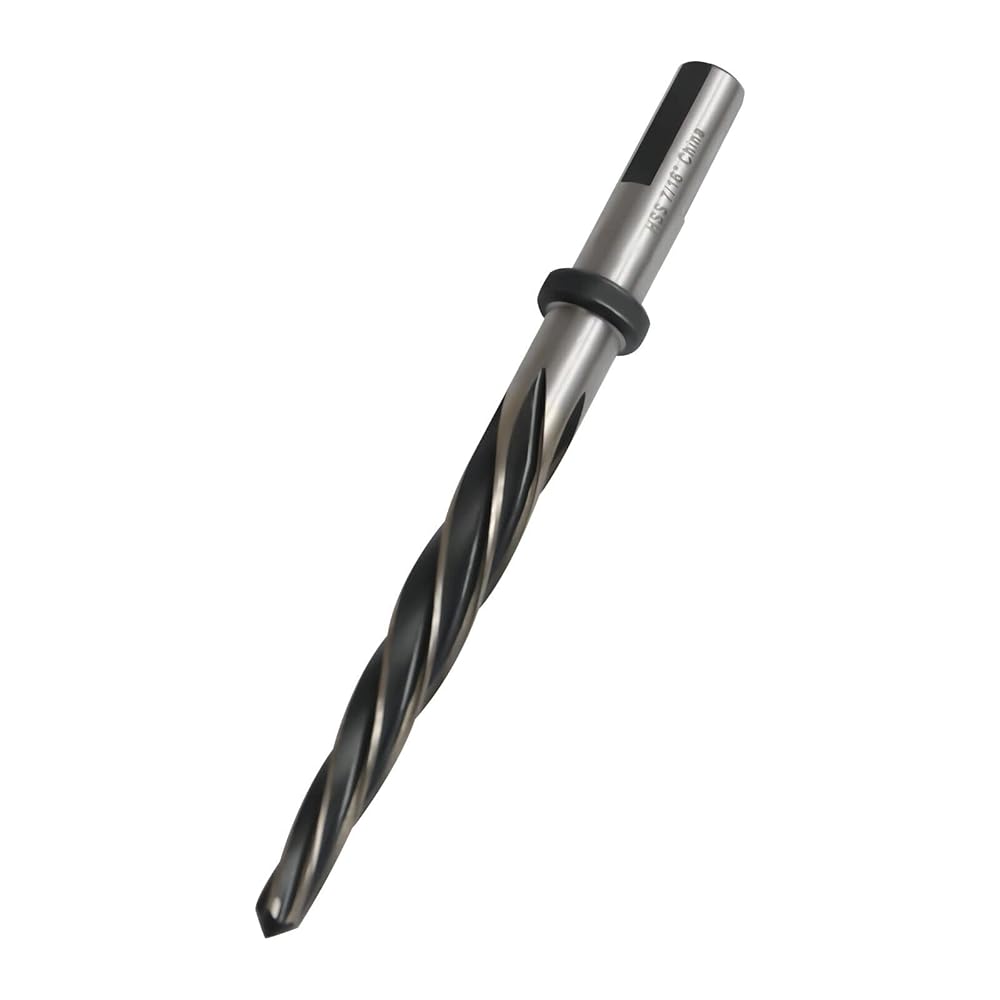

This bridge reamer is used to align existing holes before bolt or rivet installation. Its tapered point permits entry into overlapping holes. The 3-flat shank provides a positive grip in portable electric and pneumatic tools and prevents it from slipping in the drill chuck. Moreover, it is made of high-quality high-speed steel with processes such as quenching and fully grinding, making it strong and durable to use, as well as suitable for a wide range of applications.

Specifications
Material: High-speed Steel
Process: Quenching, Fully Grinding
Style: Construction Reamer
Special Feature: Bridge Reamer
Shank Type: Round, Straight
Flute Type: Spiral
Cutting Direction: Right-hand
Shank Diameter: 12.7mm/ 1/2inch
Reamer Diameter: 11mm/ 7/16inch
Net Weight: 0.3kg/0.66lbs
Gross Weight: 0.4kg/ 0.88lbs

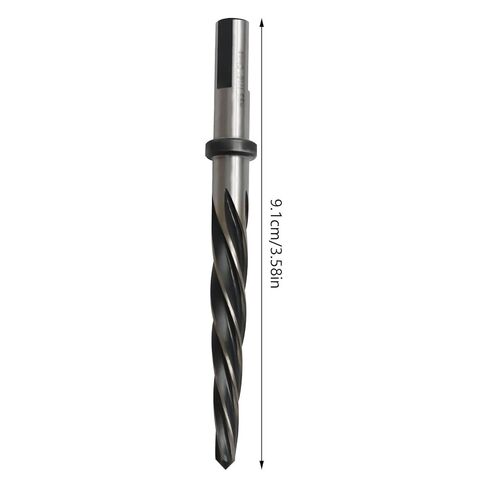

Bridge Reamer Length: 91mm/ 3.58in
Package Size: 20*6*4cm/ 7.87*2.36*1.57inch

Details
Tapered Point: The tapered point design permits the reamer bit to enter into the overlapping holes of out-of-line, making the bolt holes line up and enlarging the holes in the steering knuckles and pitman's arm.

3-Flat Shank: The three symmetrically placed flats on the shank can provide a positive grip on portable electric and pneumatic tools as well as prevent them from slipping into the drill chuck.

Safety Stop Collar: It is designed with a safety stop collar to prevent the reamer from running through the hole.

Application

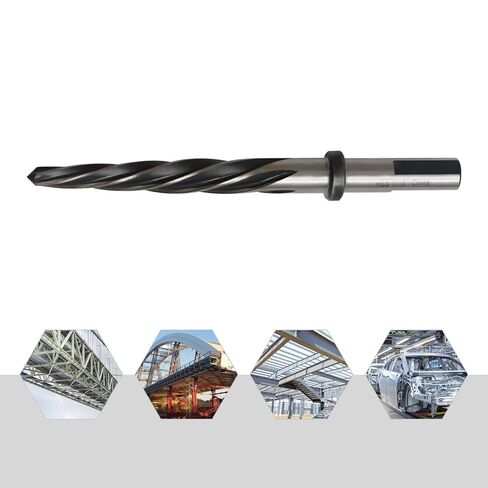

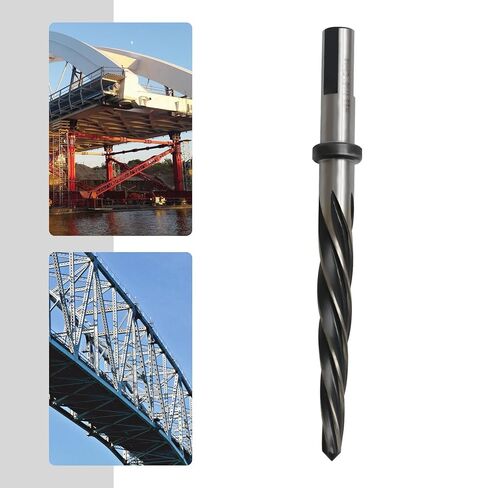

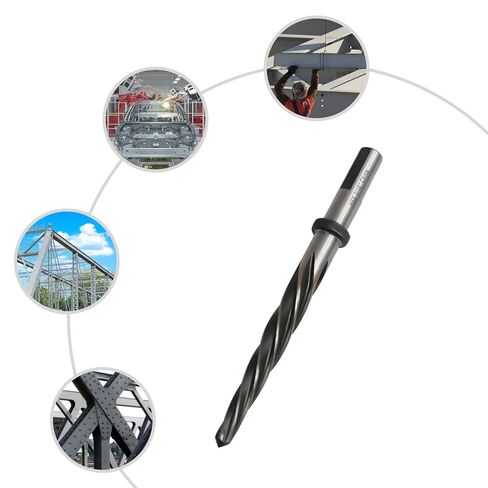

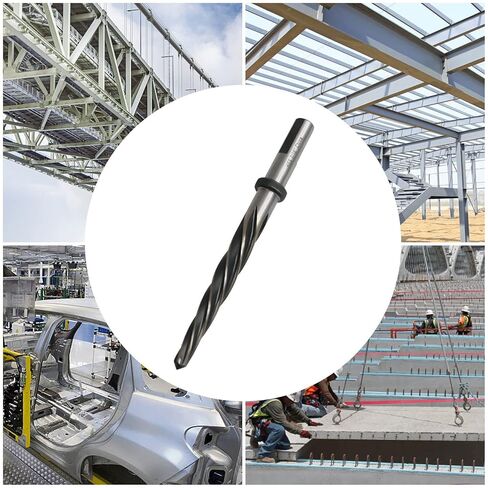

This product is commonly used in bridge, construction, steel erection, and automotive/truck trailer industries, especially in structural materials and non-ferrous metal materials such as steel, metal, alloy aluminum, brass, plastic, iron, nickel, copper, and cast iron.

Package Included
1* Bridge Reamer
