Sawing and grinding range applicable
Mainly used in wood, plastic, and other materials processing; High speed drilling milling, cutting, edging, grooving, polishing, machining center, etc.

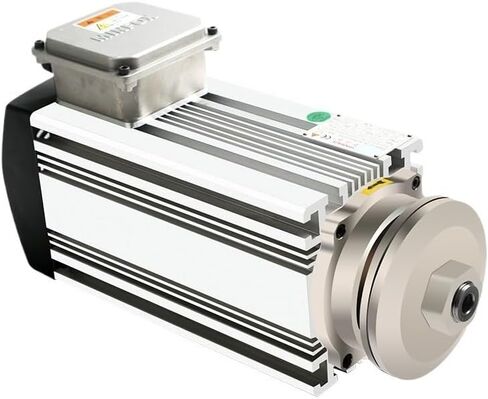

Model features: light weight, compact structure, flexible installation scheme; High speed and low temperature rise, high bearing precision; dust-proof structure, low noise cooling fan.
Support a variety of shaft heads, sawing, drilling, polishing, milling cutter

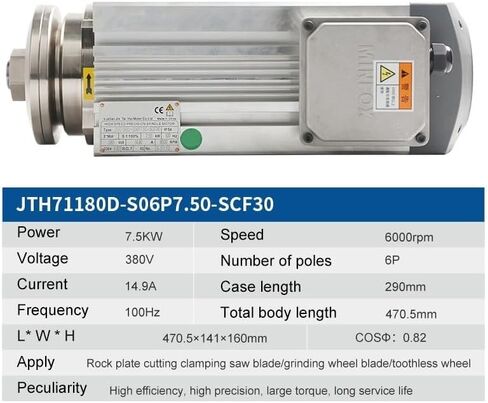

Rated power: 7.5kW
Rated speed: 6000rpm
Rated voltage: 380V
Number of poles: 6P
Rated current: 14.9A
Case length: 290mm
Rated frequency: 100Hz
Total body length: 470.5mm

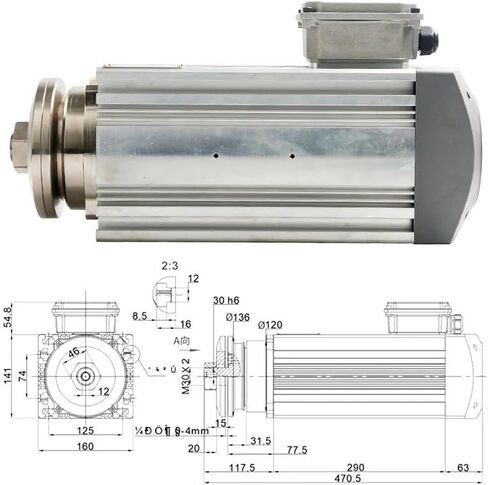

Length X width X height: 470.5×141×160mm
COS: 0.82
Scope of application: rock plate cutting clamping saw blade/grinding wheel blade/toothless grinding wheel
Model features: high efficiency, high precision, large torque, long service life

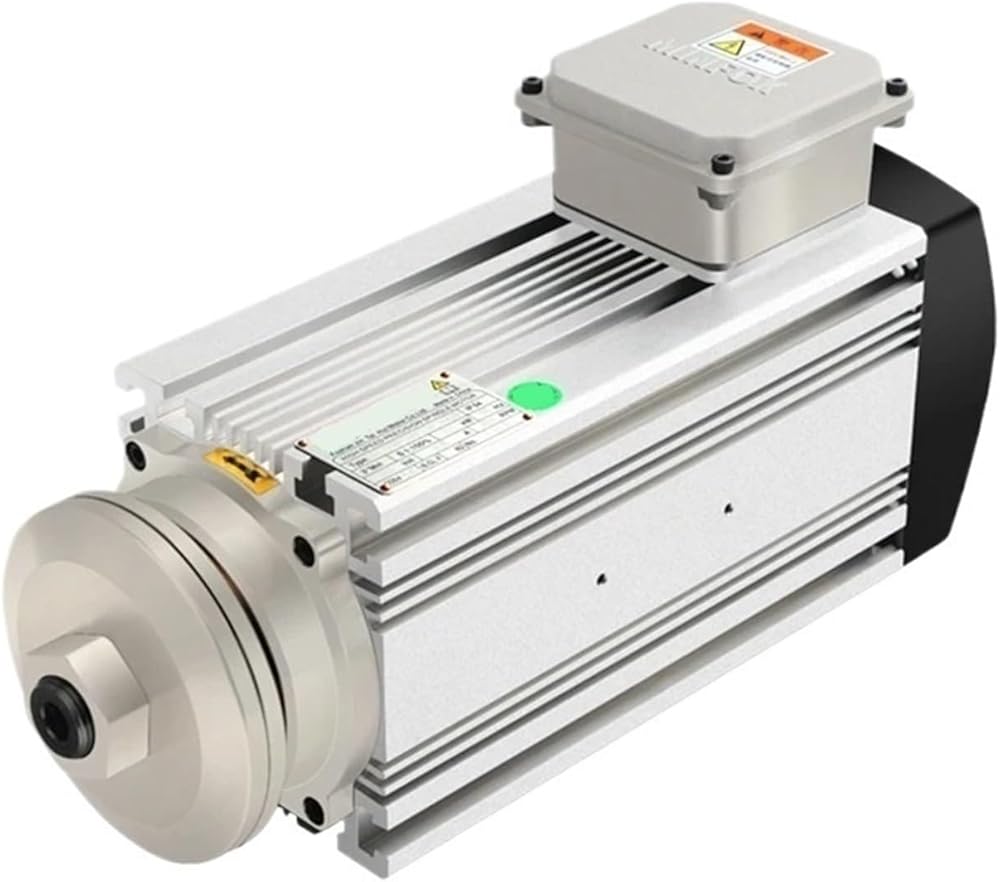

Aluminum alloy shell good heat dissipation
The casing of the machine is made of high-quality alloy aluminum and the air duct is designed as an open air duct, which not only effectively prevents dust adhesion to the pollution of the air duct, but also can improve the heat dissipation efficiency by using large space effect.

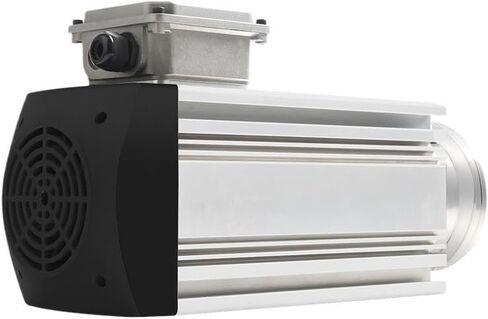

Cooling fan for cooling and shock reduction
The machine uses a high pressure junction box, flame retardant material junction box, fan to effectively improve the use of the product safety level, the other blade is changed to the screw type, reduce the operating noise.
Four bearing angular contact bearings
research and development to reduce noise and noise, Angle contact bearing power is strong; Add dust-proof function, longer service life, improve work efficiency.
Sawing grinding wheel with straight clamping
The electronic rotor and the output shaft are integrated, and each motor is equipped with 2 clamping cutters that can directly grip various types of saw blades and grinding wheels.
PTC thermal protection ori
