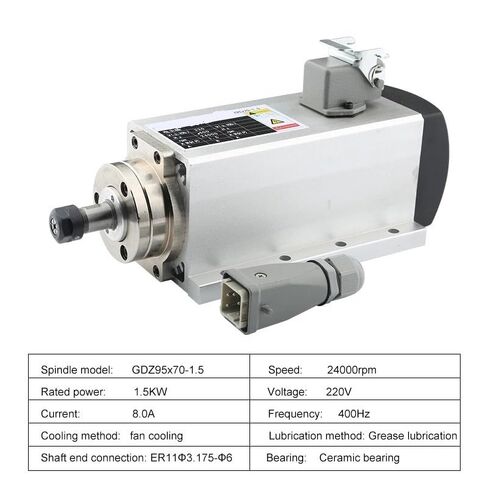

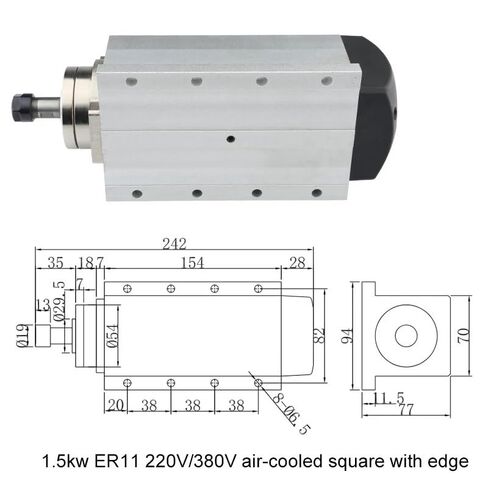

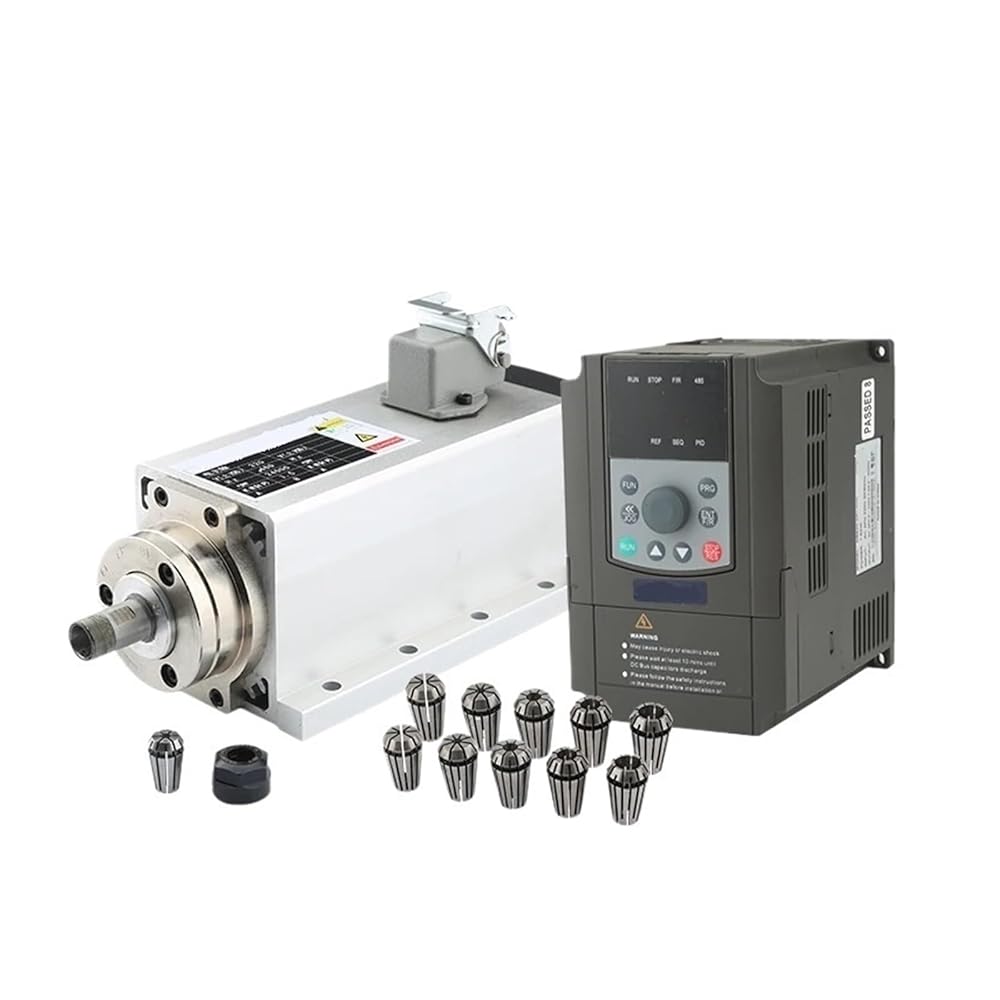

Model: GDZ95x70-1.5
Speed regulation mode: adjust the frequency of the inverter through the three-phase output inverter, and change the spindle speed.
Cooling method: air cooling
Power interface: optional 5-pin waterproof air connector.
The air connectors are marked as "1", "2", "3", "4", "5" and "GND" respectively.
"1", "2", "3" are connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.
Power: 1.5 kw
Voltage: 220V/380V
Current: 8.0A
Frequency: 0-400Hz
Speed: 0-24000rpm
Accuracy: 0.008mm
4 fully sealed angular contact ball bearings
Chuck: ER11
Air-cooled ER11 collet clamps
Grease lubrication
The working environment temperature of the lathe spindle motor is usually -10~40. Before installing the first electric spindle motor to rotate the spindle motr head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the er11 spindle motor.
The longer the length, the greater the torque and the greater the power. Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm 1. Our ceramic ball bearing spindle uses 4 ceramic ball bearings.
2. Bearings are resistant to high temperature and low heat
3. Low friction, low noise and long service life.

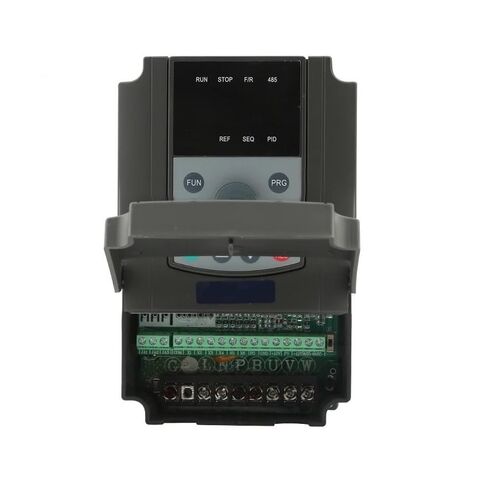

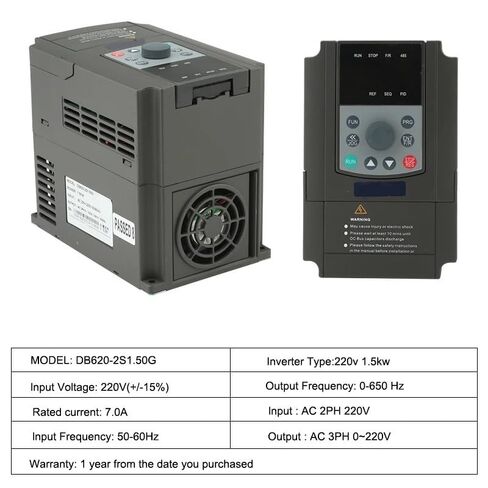

Standard wiring diagram of single-phase 2.2kw-3.7kw, three-phase 1.5-200kw VFD inverter (plastic case)

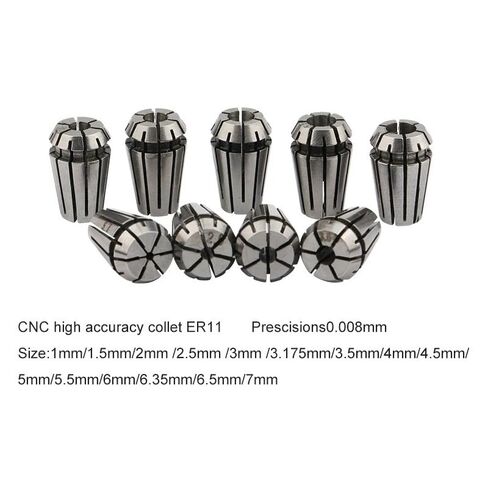

Type: ER11 high precision chuck collet clamps
Material: 65Mn steel
Quantity: 1 set (1mm/1.5mm/2mm /2.5mm /3mm /3.175mm/3.5mm /4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm )
Hardening and precision grinding
Widely used in drilling, milling, drilling, CNC milling machines, tapping, engraving spindle machine tools, machining centers, etc.
