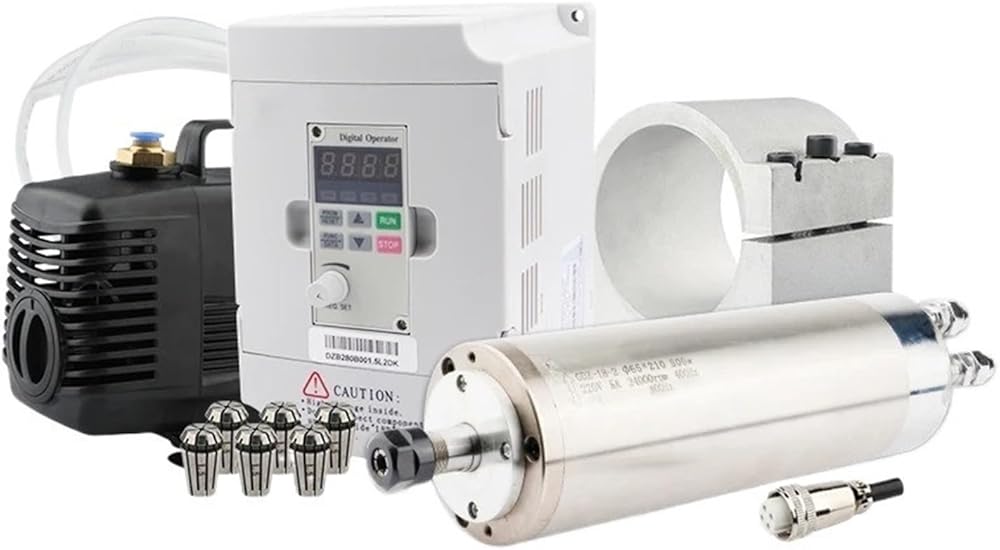

1 x 220vAC 0.8kw CNC water-cooled spindle motor 65x210mm ER11 4 bearing
1 x 220vAC 1.5kw CNC HY inverter

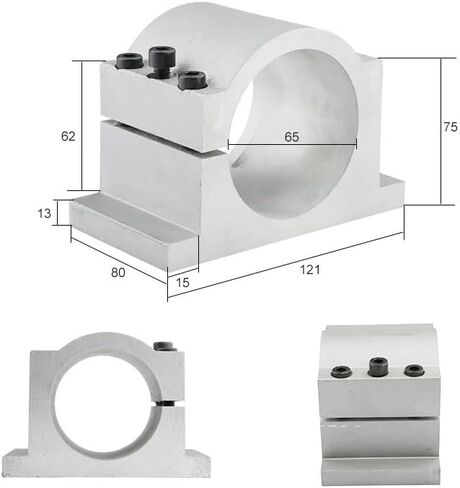

1 x 65mm clamping bracket

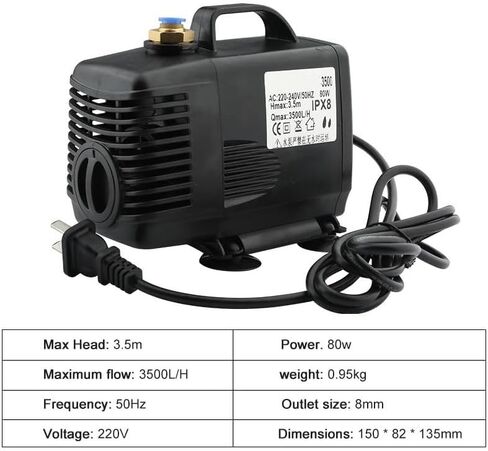

1 x 220v 80w water pump 3200L/H, 5m water pipe

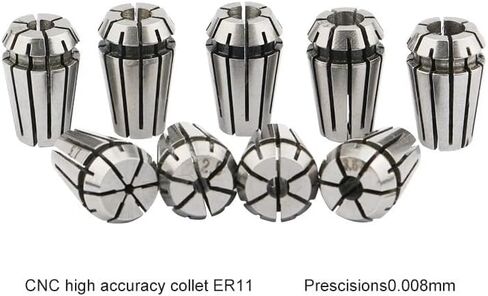

1 set of ER11 high precision chuck (≤0.008mm)

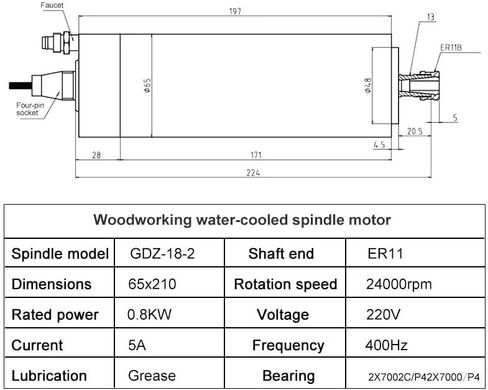

Model Number: GDZ-18-2
Power: 800w
Voltage: 220v
Current: 5A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout Off: Less than 0.01mm
Diameter(mm): 65
Bearing Type: 2x7002c/P42x7000/P4
4pcs fully sealed angular contact bearings
Collet: ER11
Grease Lubrication
The working environment temperature of the spindle is usually -10~40.
Before installing the first electric spindle to rotate the spindle head by hand, you should feel flexibility and no blockage.
P4 fully sealed angular joint bearings can extend the life of the spindle.
The longer the length, the greater the torque and the greater the power.
Careful assembly makes the spindle more precise.
The accuracy is 0.01mm, and the coaxial cable is less than 0.0025mm
1. Our main shaft uses 4 bearings.
2. Bearings are resistant to high temperature and low heat
3. The ball bearing has low friction, low noise and long service life.

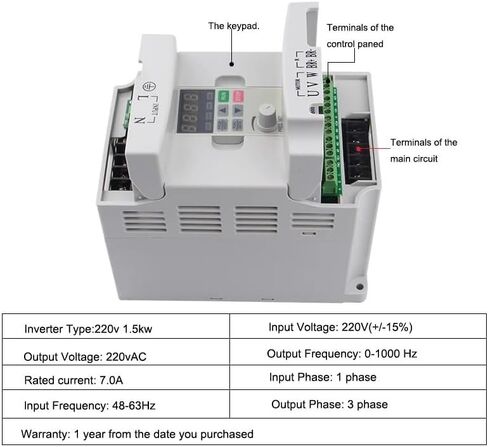

Input voltage: 220v (+/- 15%)
Input frequency: 50 / 60Hz
Input phase: 1 phase
Output voltage: 220vAC
Output frequency: 0-1000 Hz
Output current: 7A
Output phase: 3 phase
